31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Speed Control Plate Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

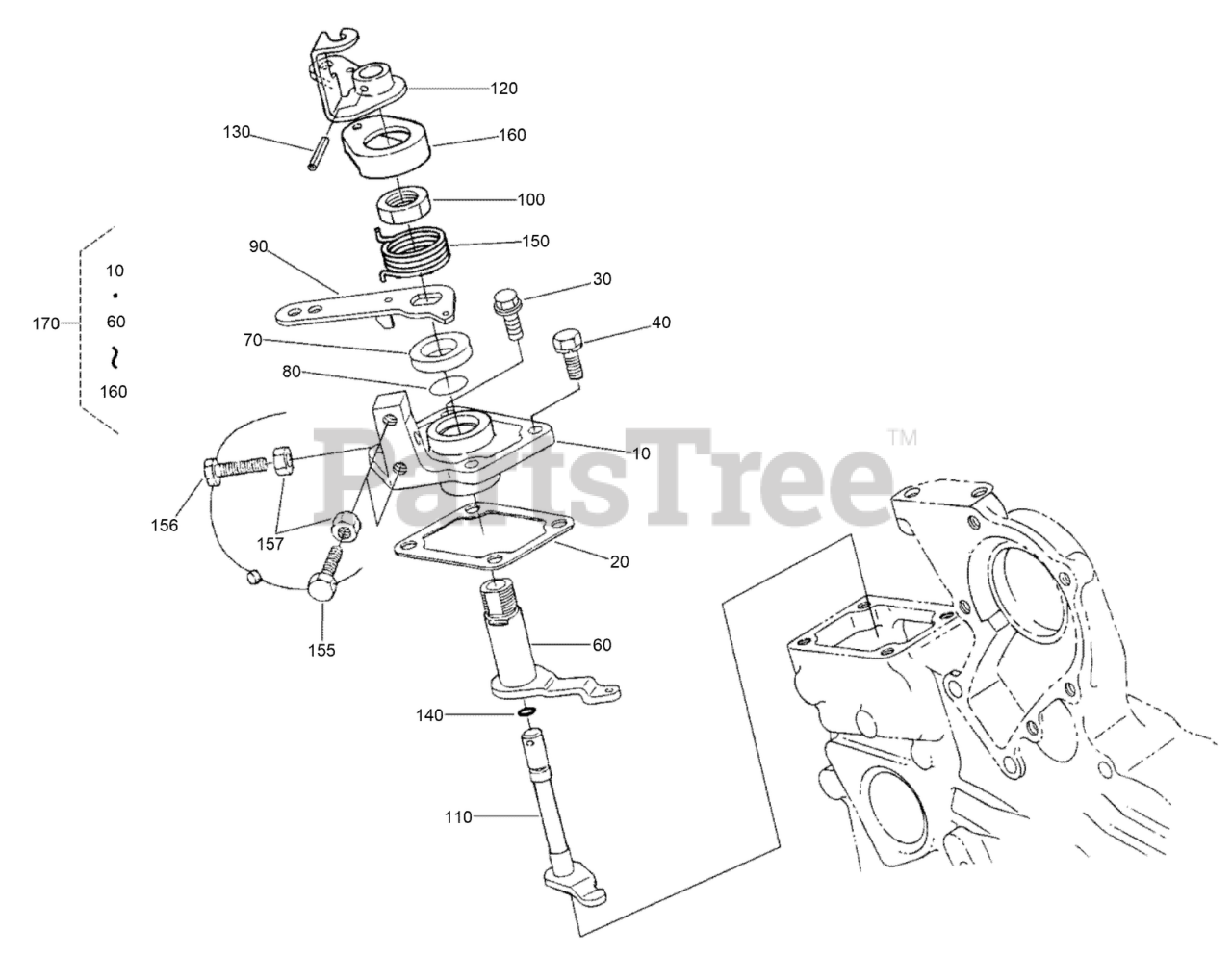

Speed Control Plate Assembly Parts Diagram

  • Title

10

Toro 110-3770

PLATE-CONTROL, SPEED

$98.99

$

Usually ships in 3-6 days

0

20

Toro 100-1962

GASKET-PLATE, CONTROL

$8.99

$

In Stock, only 1 left!

0

30

Toro 127-0403

BOLT-FLANGE

$5.99

$

Usually ships in 3-6 days

0

40

Toro 112-2507

BOLT

$22.99

$

Usually ships in 3-6 days

0

60

Toro 132-4906

LEVER-GOVERNOR

$57.99

$

Usually ships in 3-6 days

0

70

Toro 110-3772

COLLAR

$13.99

$

Usually ships in 3-6 days

0

80

Toro 100-2208

O-RING

$3.99

$

Usually ships in 3-6 days

0

90

Toro 110-3773

LEVER-CONTROL, SPEED

$68.99

$

Usually ships in 3-6 days

0

100

Toro 110-3774

NUT-CONTROL, SPEED

$7.99

$

Usually ships in 3-6 days

0

110

Toro 112-2826

SHAFT-LEVER

$52.99

$

Usually ships in 3-6 days

0

120

Toro 134-9690

LEVER(ENGINE STOP)

$

$

Currently unavailable

130

Toro 110-3777

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

140

Toro 100-2207

O-RING

$3.99

$

Usually ships in 3-6 days

0

150

Toro 110-3778

SPRING-RETURN

$9.99

$

Usually ships in 3-6 days

0

155

Toro 120-3133

SCREW-STOPPER

$3.99

$

Usually ships in 3-6 days

0

156

Toro 120-3134

BOLT

$1.99

$

Usually ships in 3-6 days

0

157

Toro 98-7572

NUT

$0.99

$

Usually ships in 3-6 days

0

160

Toro 110-3779

CAP

$10.99

$

Usually ships in 3-6 days

0

170

Toro 134-9691

PLATE,COMP

$

$

Currently unavailable
