31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Starter Component Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

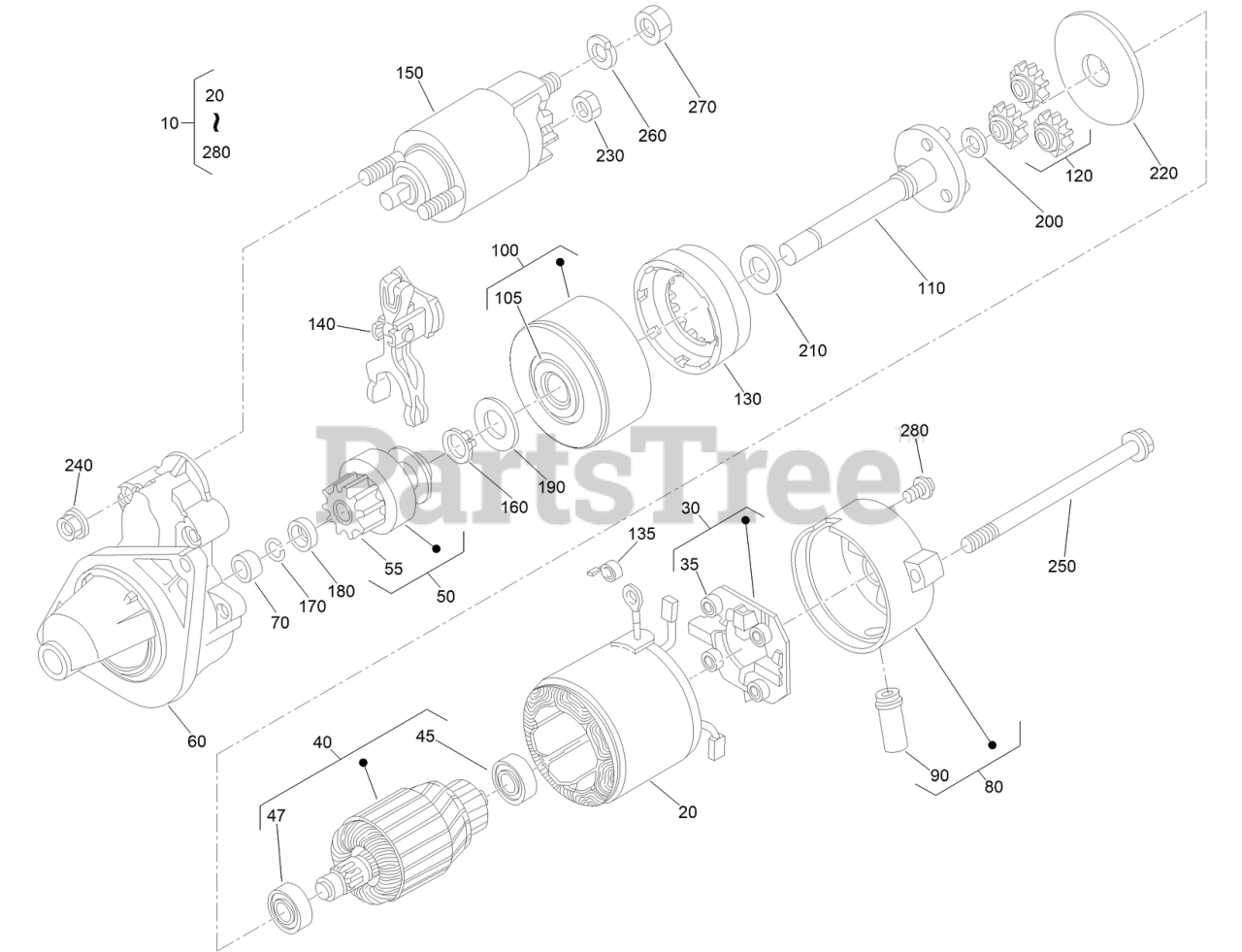

Starter Component Assembly Parts Diagram

  • Title

10

Toro 134-9705

ASSY STARTER

$

$

Currently unavailable

20

Toro 100-2181

STARTER YOKE ASM

$154.99

$

Usually ships in 3-6 days

0

30

Toro 100-2222

HOLDER ASM

$36.99

$

Usually ships in 3-6 days

0

35

Toro 127-0415

SPRING-BRUSH

$7.49

$

Usually ships in 3-6 days

0

40

Toro 100-2182

ARMATURE ASM

$308.99

$

Usually ships in 3-6 days

0

45

Toro 98-9412

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

47

Toro 131-9580

BEARING - BALL

$

$

Currently unavailable

50

Toro 100-2185

STARTER CLUTCH ASM

$223.99

$

Usually ships in 3-6 days

0

55

Toro 112-2833

GEAR-PINION

$197.99

$

Usually ships in 3-6 days

0

60

Toro 100-2180

STARTER HOUSING ASM

$323.99

$

Usually ships in 3-6 days

0

70

Toro 100-2183

BEARING

$4.49

$

Usually ships in 3-6 days

0

80

Toro 100-2186

FRAME ASM

$123.99

$

Usually ships in 3-6 days

0

90

Toro 100-2213

COVER

$8.49

$

Usually ships in 3-6 days

0

100

Toro 100-2223

BEARING ASM

$25.99

$

Usually ships in 3-6 days

0

105

Toro 127-0414

BEARING

$7.99

$

Usually ships in 3-6 days

0

110

Toro 100-2187

STARTER SHAFT ASM

$61.99

$

Usually ships in 3-6 days

0

120

Toro 100-2220

GEAR

$36.99

$

Usually ships in 3-6 days

0

130

Toro 100-2221

GEAR

$100.99

$

Usually ships in 3-6 days

0

135

Toro 98-7750

SPRING-BRUSH

$3.99

$

Usually ships in 3-6 days

0

140

Toro 100-2218

LEVER

$11.99

$

Usually ships in 3-6 days

0

150

Toro 134-9706

ASSY SWITCH,MAGNETIC

$

$

Currently unavailable

160

Toro 100-2219

RING-SNAP

$18.99

$

Usually ships in 3-6 days

0

170

Toro 100-2212

RING-SNAP

$11.99

$

Usually ships in 3-6 days

0

180

Toro 100-2216

COLLAR

$27.99

$

Usually ships in 3-6 days

0

190

Toro 100-2224

WASHER-PLAIN

$11.99

$

Usually ships in 3-6 days

0

200

Toro 100-2225

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

210

Toro 100-2226

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

220

Toro 100-2227

PLATE

$21.99

$

Usually ships in 3-6 days

0

230

Toro 99-8371

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

240

Toro 100-1813

NUT

$3.99

$

Usually ships in 3-6 days

0

250

Toro 100-2210

BOLT-THROUGH

$5.99

$

Usually ships in 3-6 days

0

260

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

270

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

280

Toro 100-2188

SCREW

$4.99

$

Usually ships in 3-6 days

0
