31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Water Flange and Thermostat Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

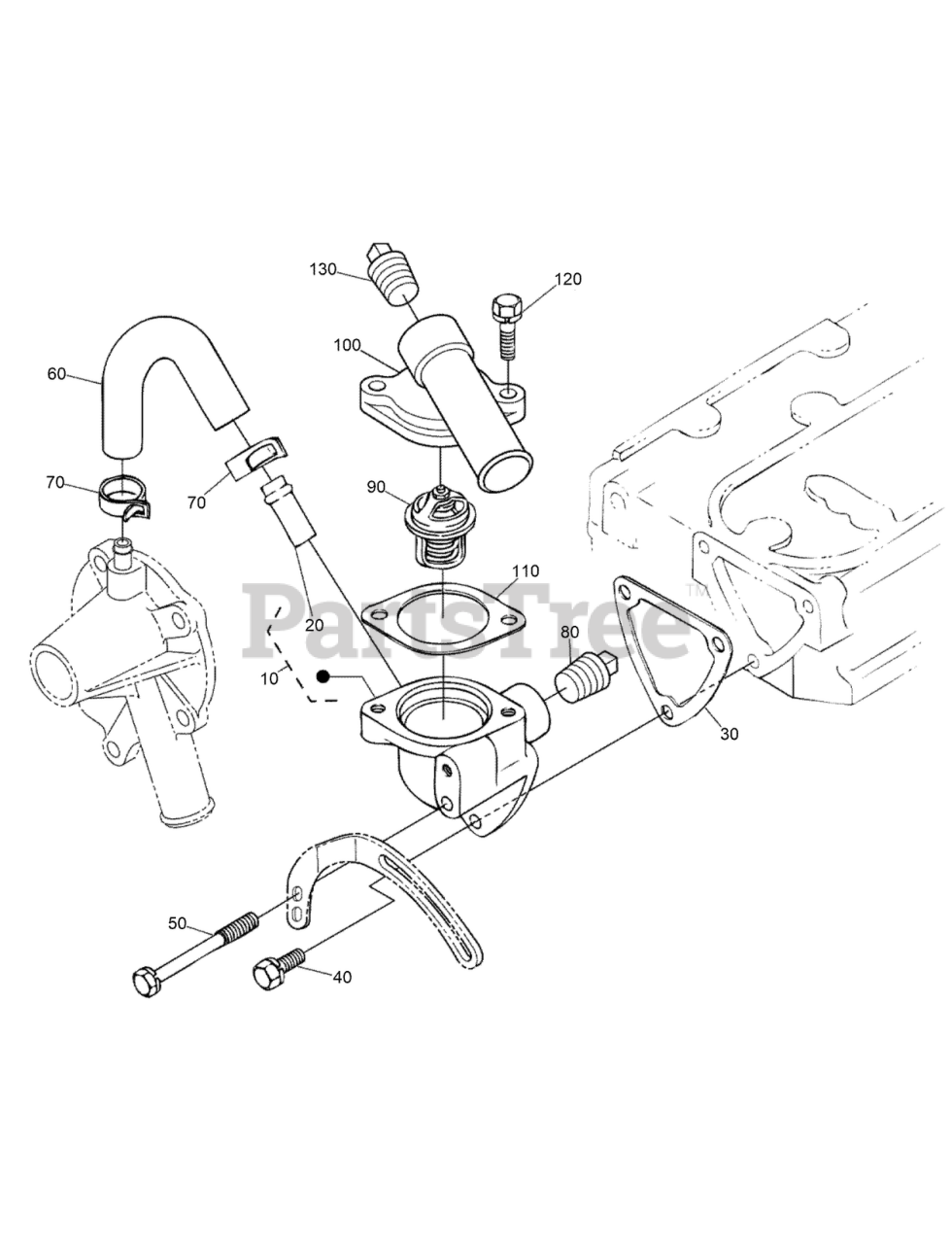

Water Flange and Thermostat Assembly Parts Diagram

  • Title

10

Toro 134-9707

FLANGE,WATER,COMP

$

$

Currently unavailable

20

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 110-3820

GASKET-FLANGE, WATER

$4.49

$

Usually ships in 3-6 days

0

40

Toro 98-7692

BOLT

$1.49

$

In Stock, Qty 5

0

50

Toro 98-9437

BOLT

$

$

Currently unavailable

60

Toro 134-9708

PIPE,WATER RETURN

$

$

Currently unavailable

70

Toro 98-9579

BAND-PIPE

$7.99

$

Usually ships in 3-6 days

0

80

Toro 110-3821

PLUG

$14.99

$

Usually ships in 3-6 days

0

90

Toro 100-2053

THERMOSTAT ASM

$84.99

$

Usually ships in 3-6 days

0

100

Toro 134-9709

COVER,THERMOSTAT

$

$

Currently unavailable

110

Toro 100-2157

GASKET-THERMOSTAT

$14.99

$

In Stock, only 1 left!

0

120

Toro 98-9354

BOLT

$

$

Currently unavailable

130

Toro 110-3821

PLUG

$14.99

$

Usually ships in 3-6 days

0
