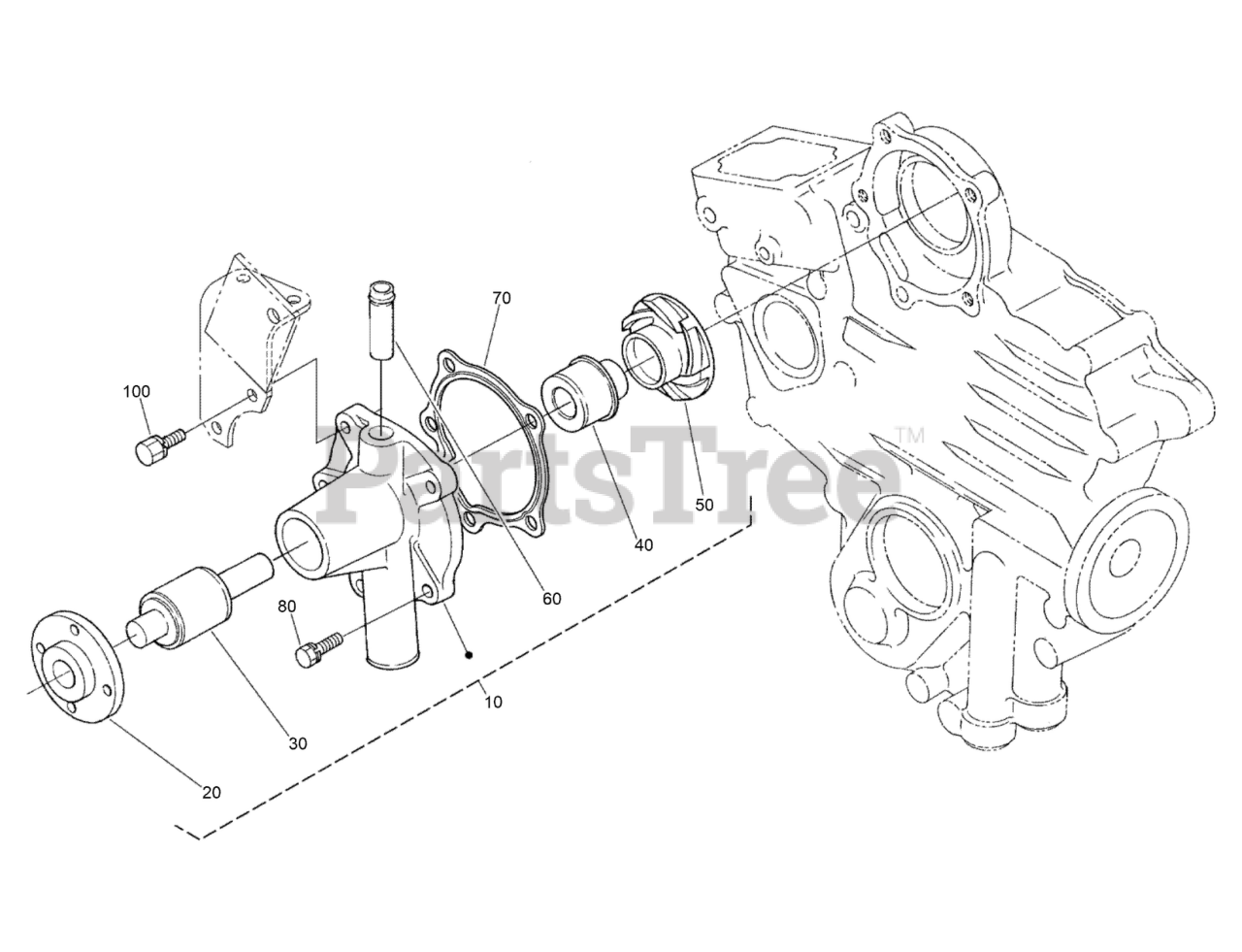

31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Water Pump Assembly Parts Diagram
ProLine Rear-Engine Riding Mower
Water Pump Assembly Parts Diagram
Toro 134-9710
ASSY PUMP,WATER
$
$
Currently unavailable
Toro 125-9081
FLANGE-PUMP, WATER
$53.99
$
Usually ships in 3-6 days
Toro 100-1934
BEARING-BALL
$83.99
$
Usually ships in 3-6 days
Toro 134-9711
ASSY SEAL,MECHANICAL
$
$
Currently unavailable
Toro 134-9712
IMPELLER,WATER PUMP
$
$
Currently unavailable
Toro 100-1932
PIPE-RETURN, WATER
$12.99
$
In Stock, only 1 left!
Toro 117-0330
GASKET-PUMP, WATER
$19.99
$
Usually ships in 3-6 days
Toro 100-1750
BOLT
$2.49
$
Usually ships in 3-6 days
Toro 98-9353
BOLT
$1.49
$
Usually ships in 3-6 days
