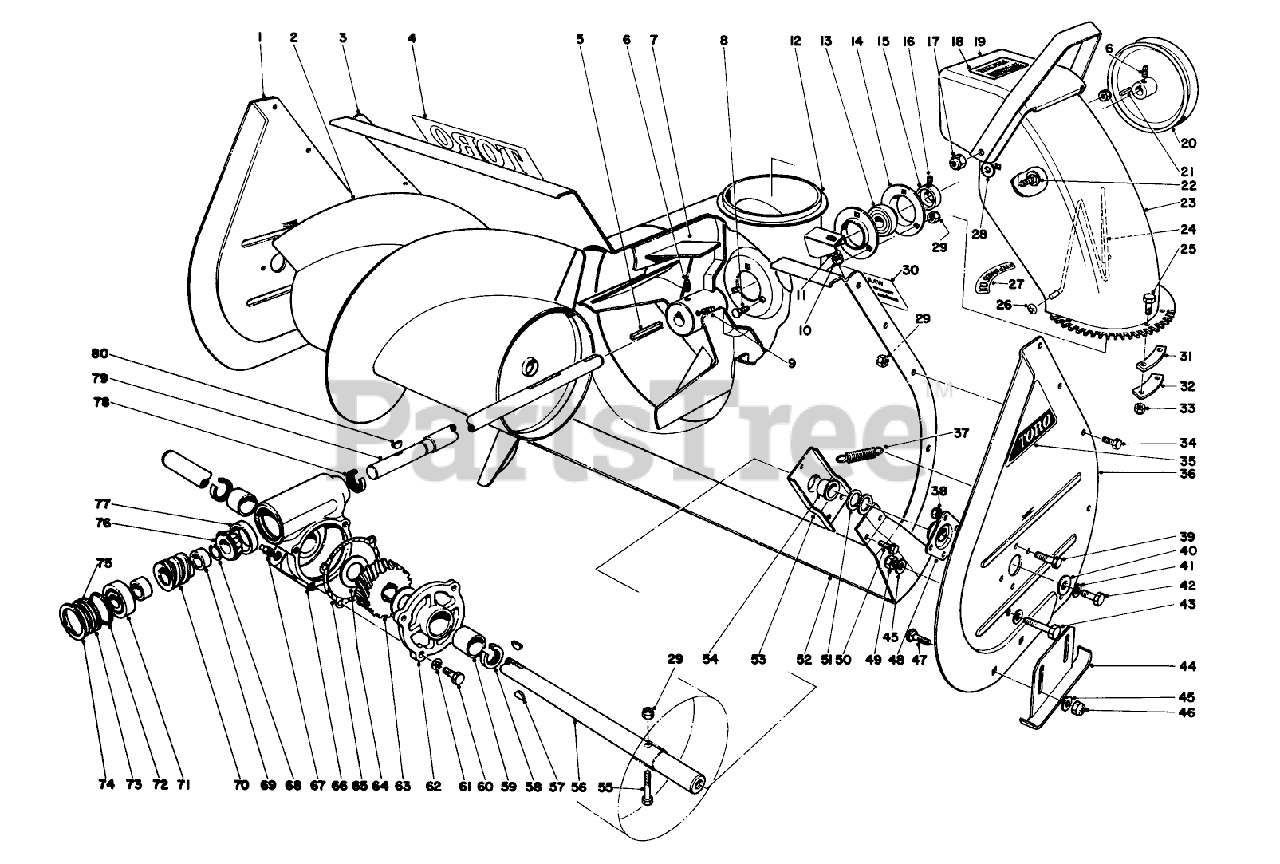

31263 (526) - Toro Snow Thrower (SN: 003000001 - 003999999) (1973) Auger Assembly Parts Diagram

Snow Thrower

Auger Assembly Parts Diagram

  • Title

1

Toro 8-8450

See Supercession: 39-6120
(Superseded to 39-6120)

$

$

Not available

2

Toro 11-6900

See Supercession: 26-6160
(Superseded to 26-6160)

$

$

Not available

Toro 11-6890

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 5-8579

DISCONTINUED

$

$

Not available

4

Toro 17-6560

Decal-Auger Housing

$

$

Currently unavailable

5

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

6

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

7

Toro 8-7720

See Supercession: 19-8890-03
(Superseded to 19-8890-03)

$775.99

$

Usually ships in 3-6 days

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

11

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

12

Toro 5-7250

DISCONTINUED

$

$

Not available

13

Toro 251-224

BALL BRG W/COLLAR

$67.99

$

In Stock, only 1 left!

0

14

Toro 251-229

BRG FLANGE

$51.99

$

Usually ships in 3-6 days

0

15

Toro 251-231

EXT LOCKING COLLAR

$

$

Not available

16

Toro 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

17

Toro 3296-44

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

18

Toro 10-2980

See Supercession: 22-8730
(Superseded to 22-8730)

$

$

Not available

19

Toro 5-8589

See Supercession: 11-7120-01
(Superseded to 11-7120-01)

$134.99

$

Usually ships in 3-6 days

0

20

Toro 5-7400

DISCONTINUED

$

$

Not available

21

Toro 3-6857

SQUARE KEY

$19.99

$

Usually ships in 3-6 days

0

22

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 5-8599

DISCONTINUED XREF

$

$

Not available

24

Toro 12-2040

WIRE-CHUTE

$

$

Not available

25

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

26

Toro 3290-326

NUT-PUSH

$

$

Not available

27

Toro 5-9830

Decal

$

$

Currently unavailable

28

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

29

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

30

Toro 10-2970

See Supercession: 94-2568
(Superseded to 94-2568)

$11.99

$

Usually ships in 3-6 days

0

31

Toro 6-5560

CHUTE TAB SPACER

$

$

Not available

32

Toro 6-5570

DISCONTINUED

$

$

Not available

33

Toro 32146-18

See Supercession: 32153-1
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

34

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 17-6500

DISCONTINUED

$

$

Not available

36

Toro 8-8440

DISCONTINUED
(Superseded to 39-6130)

$

$

Not available

37

Toro 5-7290

SPRING-TENSION

$27.99

$

Usually ships in 3-6 days

0

38

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3-0750

WASHER

$8.99

$

In Stock, only 2 left!

0

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

42

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

43

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

44

Toro 8-8460

See Supercession: 20-2840-01
(Superseded to 20-2840-01)

$53.99

$

In Stock, Qty 5

0

45

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

46

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

47

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

48

Toro 11-7020

DISCONTINUED PRC4

$

$

Not available

49

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

50

Toro 32140-82

See Supercession: 32144-11
(Superseded to 32144-11)

$8.49

$

In Stock, only 2 left!

0

51

Toro 8-9950

Spacer

$

$

Currently unavailable

52

Toro 11-6850

Scraper Blade

$

$

Currently unavailable

53

Toro 11-6870

DISCONTINUED

$

$

Not available

54

Toro 256-132

BUSHING-FLANGE

$9.99

$

In Stock, only 3 left!

0

55

Toro 17-7030

See Supercession: 322-12
(Superseded to 322-12)

$2.49

$

In Stock, Qty 13

0

56

Toro 11-7000

26 AUGER SHAFT

$611.99

$

Usually ships in 3-6 days

0

57

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

58

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

59

Toro 256-197

See Supercession: 256-237
(Superseded to 256-237)

$17.99

$

In Stock, only 2 left!

0

60

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

61

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

62

Toro 4-9309

DISCONTINUED

$

$

Not available

63

Toro 5-7180

GEAR-WORM, 27T

$201.99

$

In Stock, only 2 left!

0

64

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

65

Toro 5-7110

DISCONTINUE

$

$

Not available

66

Toro 4-9319

Gear Box, Auger (Incl. Ref 58 76)

$

$

Currently unavailable

67

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

68

Toro 7-0013

RETAINER RING

$9.99

$

Usually ships in 3-6 days

0

69

Toro 8-9000

DISCONTINUED

$

$

Not available

70

Toro 5-7170

GEAR

$144.99

$

Usually ships in 3-6 days

0

71

Toro 251-207

.750 BALL BEARING

$

$

Not available

72

Toro 237-71

O-RING

$8.99

$

Usually ships in 3-6 days

0

73

Toro 7-0017

DISCONTINUED

$

$

Not available

74

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

75

Toro 11-2120

DISCONTINUED

$

$

Not available

76

Toro 254-88

3/4 ROLLER BRG CONE

$142.99

$

Usually ships in 3-6 days

0

77

Toro 254-89

DISCONTINUED

$

$

Not available

78

Toro 253-59

SEAL-OIL

$25.99

$

Usually ships in 3-6 days

0

79

Toro 5-7140

DISCONTINUED

$

$

Not available

80

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, only 2 left!

0

Toro 8-8820

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 11-6960

DISCONTINUED

Note: Not illustrated

$

$

Not available
