315 X - Husqvarna Automower Robotic Lawn Mower (2018) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

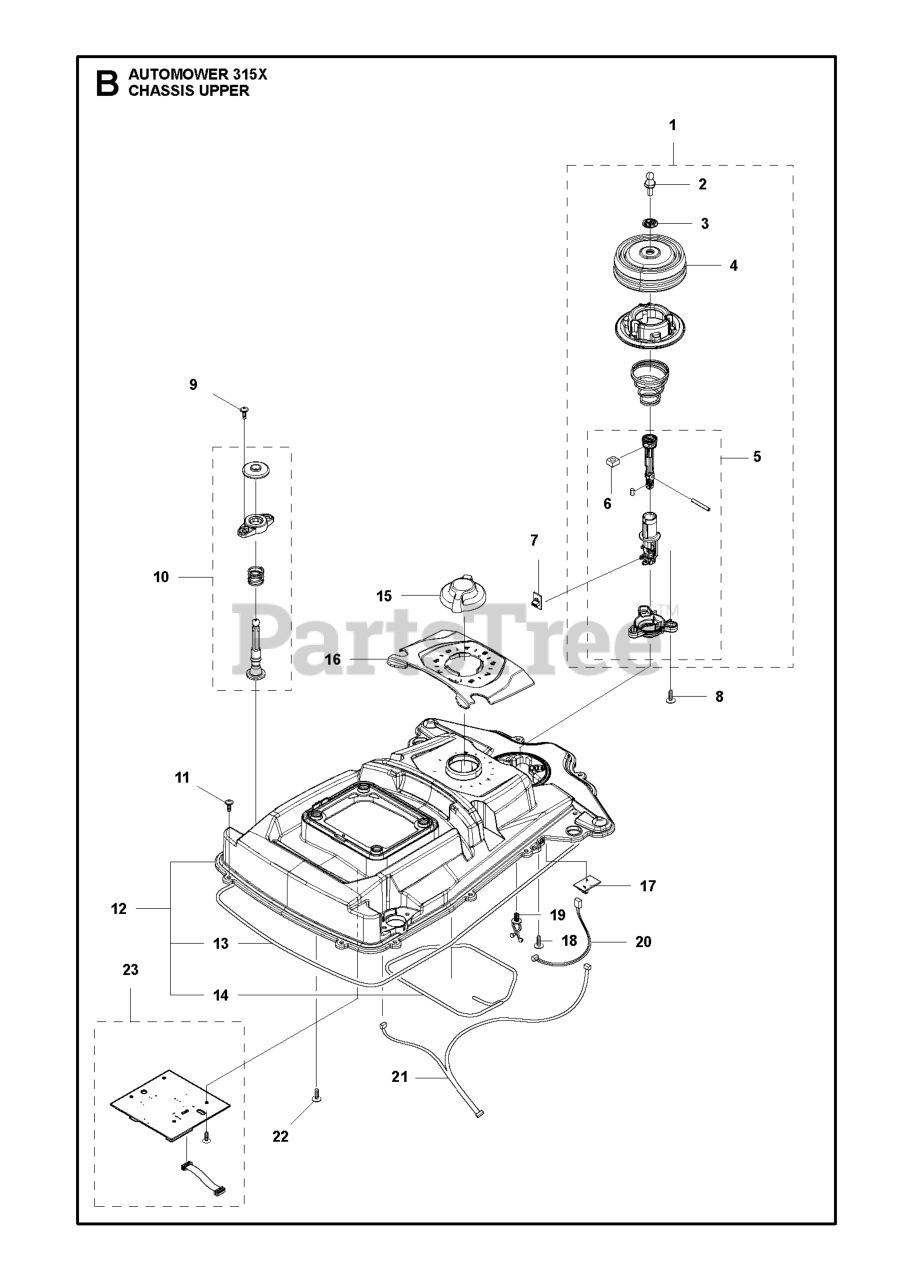

CHASSIS UPPER Parts Diagram

  • Title

21

Husqvarna 588797801

WIRING ASSY HMI

Note: Loom

$28.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448902

CHASSIS KIT

Note: Chassis KIT

$101.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503226601

NUT

Note: Square Nut

$5.99

$

In Stock, Qty 5

0

20

Husqvarna 585208501

LOOM LIFT, COLLISION

Note: Loom Lift-Collision

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580526701

STUD SNAPLOC

Note: Stud

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 592909501

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$35.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581620903

JOYSTICK KIT

Note: Joystick KIT Front

$89.99

$

Usually ships in 3-10 days

0

7

Husqvarna 592852301

PRINTED CIRCUIT ASSY PCBA LIFT

Note: PCBA Lift Sensor

$41.99

$

Usually ships in 3-10 days

0

23

Husqvarna 586662305

CONNECT MODULE 2G / 3G
(Superseded to 586662311)

Note: Combo KIT (all markets)

$513.99

$

In Stock, only 3 left!

0

10

Husqvarna 594058601

JOYSTICK ASSY REAR

Note: Joystick KIT Rear

$33.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587986502

KNOB HVA GREY

Note: Knob

$53.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587448802

JOYSTICK KIT

Note: Joystick ASSY

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579525701

WASHER JOYSTICK

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 589560901

PLATE HEIGHT ADJUSTMENT

Note: Height Adjustment

$71.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

Note: Sealing Strip (1 pcs, Ø5 mm)

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579474601

BELLOWS LIFT-COLLISION

Note: Bellows

$27.99

$

Usually ships in 3-10 days

0

14

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

Note: Sealing Strip (1 pcs, Ø5 mm)

$15.99

$

Usually ships in 3-10 days

0
