31853 T - Toro Flex-Force Power System 60V MAX Snow Thrower (SN: 409000000 - 414299999) Handle Assembly Parts Diagram

Flex-Force Power System 60V MAX Snow Thrower

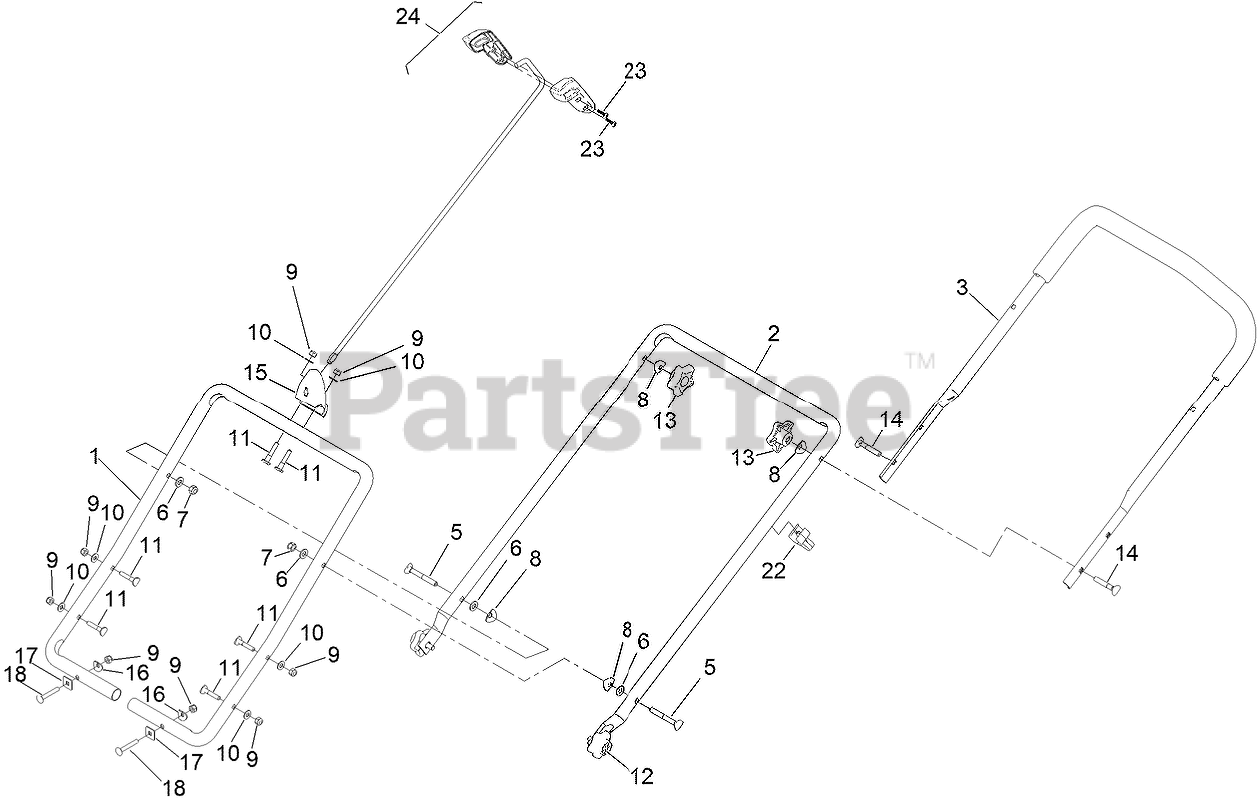

Handle Assembly Parts Diagram

  • Title

1

Toro 132-9183

HANDLE-LOWER

$70.99

$

Usually ships in 3-6 days

0

2

Toro 132-9184

HANDLE-MIDDLE

$76.99

$

Usually ships in 3-6 days

0

3

Toro 137-2326

UPPER HANDLE ASM

$68.99

$

Usually ships in 3-6 days

0

5

Toro 137-9479

SCREW-HANDLE

$1.49

$

Usually ships in 3-6 days

0

6

Toro 120-9683

WASHER-PLAIN

$3.49

$

In Stock, only 1 left!

0

7

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 8

0

8

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 8

0

9

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

10

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 7

0

12

Toro 137-9390

KNOB-HANDLE

$4.99

$

In Stock, only 2 left!

0

13

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

14

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, only 2 left!

0

15

Toro 137-9303

GUIDE-ROD, CHUTE

$5.99

$

In Stock, Qty 13

0

16

Toro 3-7501

WASHER

$6.99

$

In Stock, Qty 8

0

17

Toro 75-9040

WASHER-SQUARE

$1.49

$

In Stock, Qty 14

0

18

Toro 120-9698

BOLT-CARR

$0.99

$

Usually ships in 3-6 days

0

22

Toro 114-7988

GUIDE-CABLE

$3.49

$

In Stock, Qty 20+

0

23

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

24

Toro 139-5244

HANDLE ASM

$26.99

$

In Stock, only 2 left!

0
