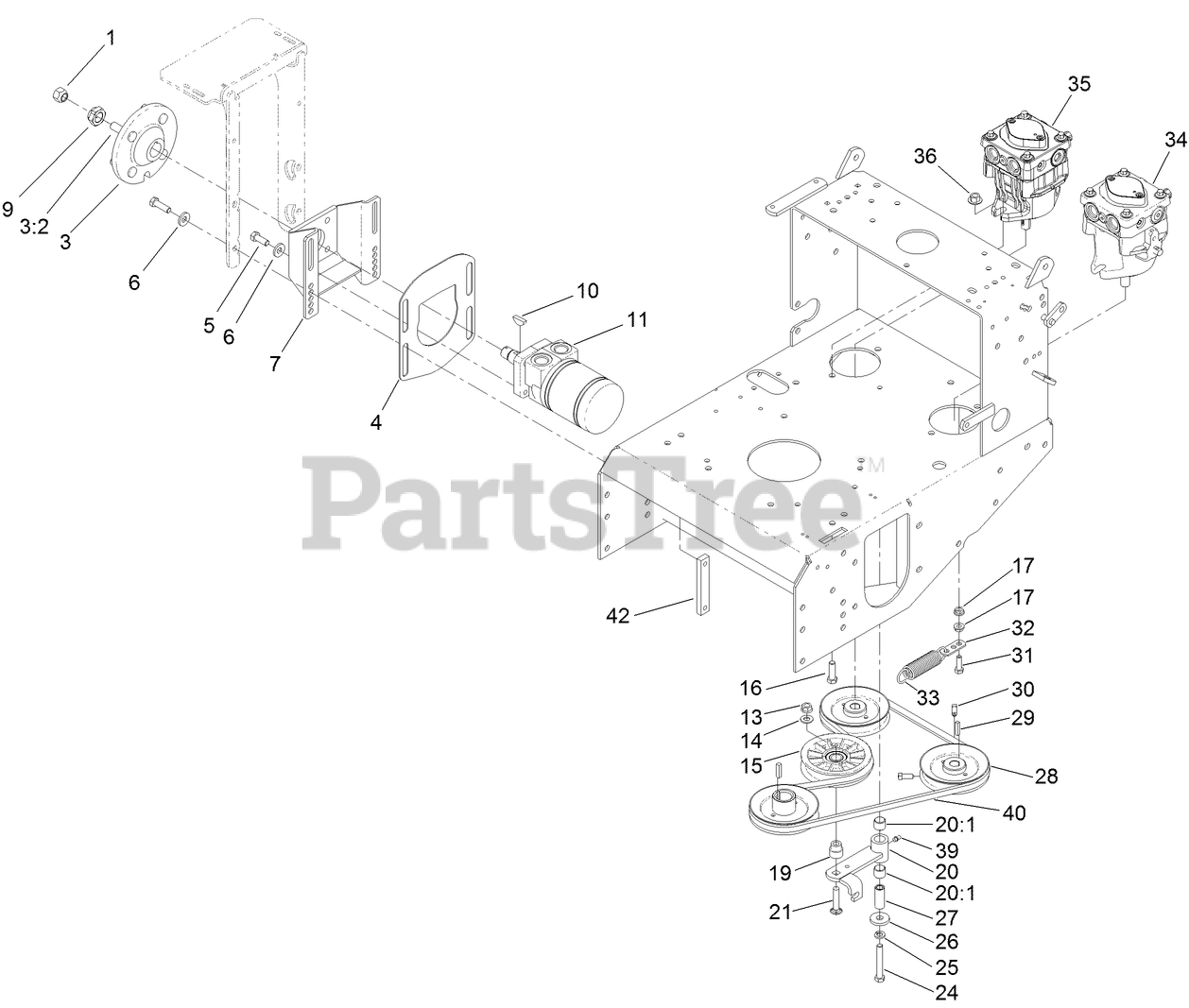

31914 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 412000000 - 999999999) Drive Assembly Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

Drive Assembly Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

3

Toro 112-9049

WHEEL HUB ASM

$209.99

$

In Stock, only 4 left!

0

3:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

4

Toro 115-3805-01

GUARD-DEBRIS

$58.99

$

Usually ships in 3-6 days

0

5

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Toro 103-2289-01

MOUNT-MOTOR

$150.99

$

Usually ships in 3-6 days

0

9

Toro 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

10

Toro 1-807019

KEY-WOODRUFF

$20.99

$

Usually ships in 3-6 days

0

11

Toro 1-603718

HYD MOTOR ASM

$1243.99

$

Usually ships in 3-6 days

0

13

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 109-4077

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 17

0

16

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

20

Toro 1-602521

IDLER ARM ASM

$125.99

$

Usually ships in 3-6 days

0

20:1

Toro 103-4681

SLEEVE-BEARING

$5.99

$

In Stock, Qty 10

0

21

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

24

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

26

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

27

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

28

Toro 1-413010

SHEAVE ASM

$54.99

$

In Stock, only 4 left!

0

29

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

30

Toro 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-603801

ANCHOR-SPRING

$23.99

$

Usually ships in 3-6 days

0

33

Toro 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

34

Toro 116-0942

LH HYD PUMP ASM

$1303.99

$

Usually ships in 3-6 days

0

35

Toro 116-0943

RH HYD PUMP ASM

$1303.99

$

Usually ships in 3-6 days

0

36

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

39

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

40

Toro 106-2740

V-BELT

$67.99

$

In Stock, only 4 left!

0

42

Toro 115-1023

BAR-NUT

$133.99

$

Usually ships in 3-6 days

0
