31914 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 412000000 - 999999999) Frame and Linkage Assembly Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

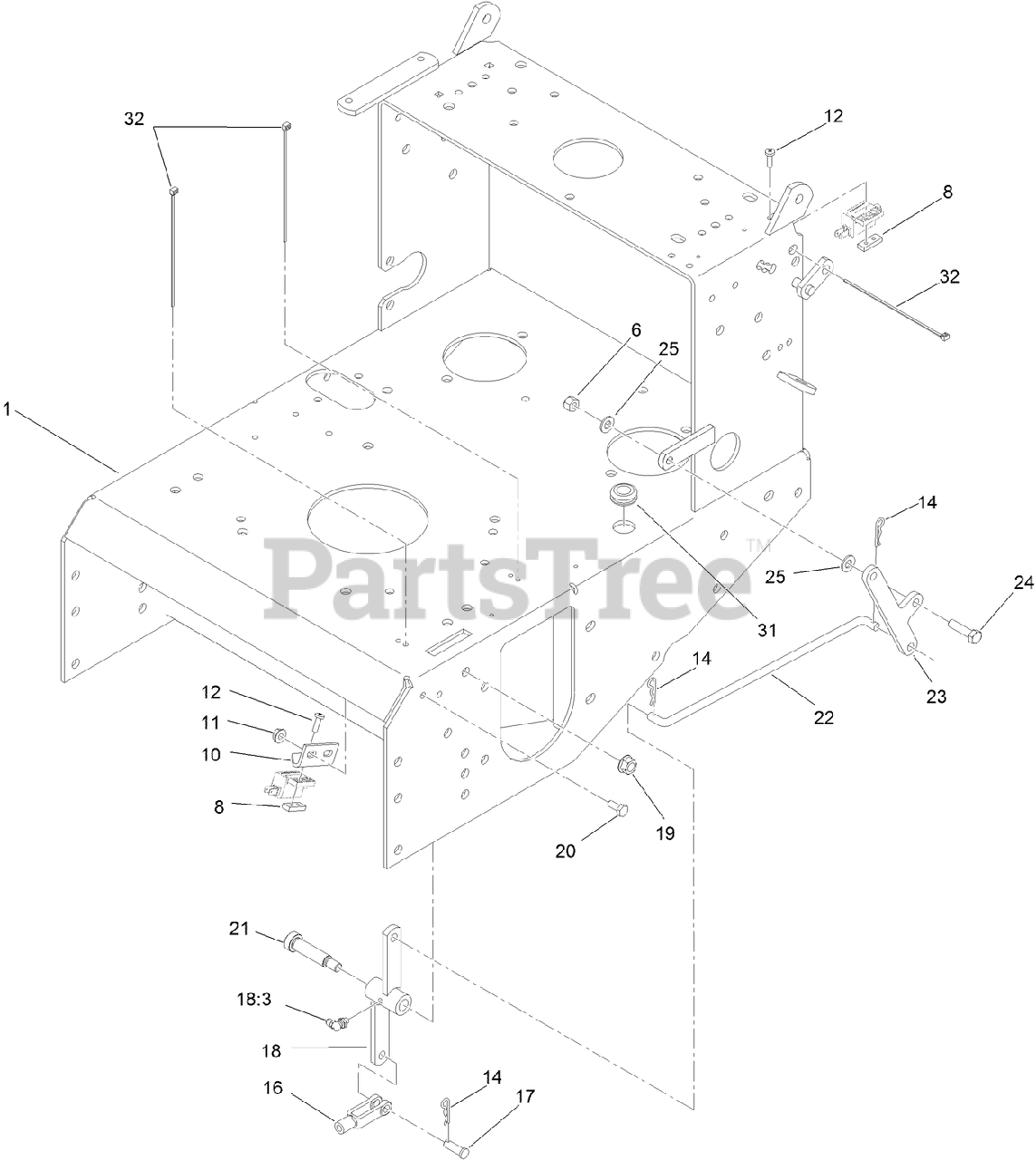

Frame and Linkage Assembly Parts Diagram

  • Title

1

Toro 116-6086-01

FRAME

$844.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

10

Toro 1-323213

BRACKET-SWITCH, BLADE

$36.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

16

Toro 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

17

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-322108

BELLCRANK ASM

$193.99

$

Usually ships in 3-6 days

0

18:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 1-809062

SCREW

$18.99

$

Usually ships in 3-6 days

0

22

Toro 1-323172

LINKAGE-ENGAGE, BLADE

$22.99

$

Usually ships in 3-6 days

0

23

Toro 116-1737-01

BELLCRANK

$12.99

$

Usually ships in 3-6 days

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

32

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
