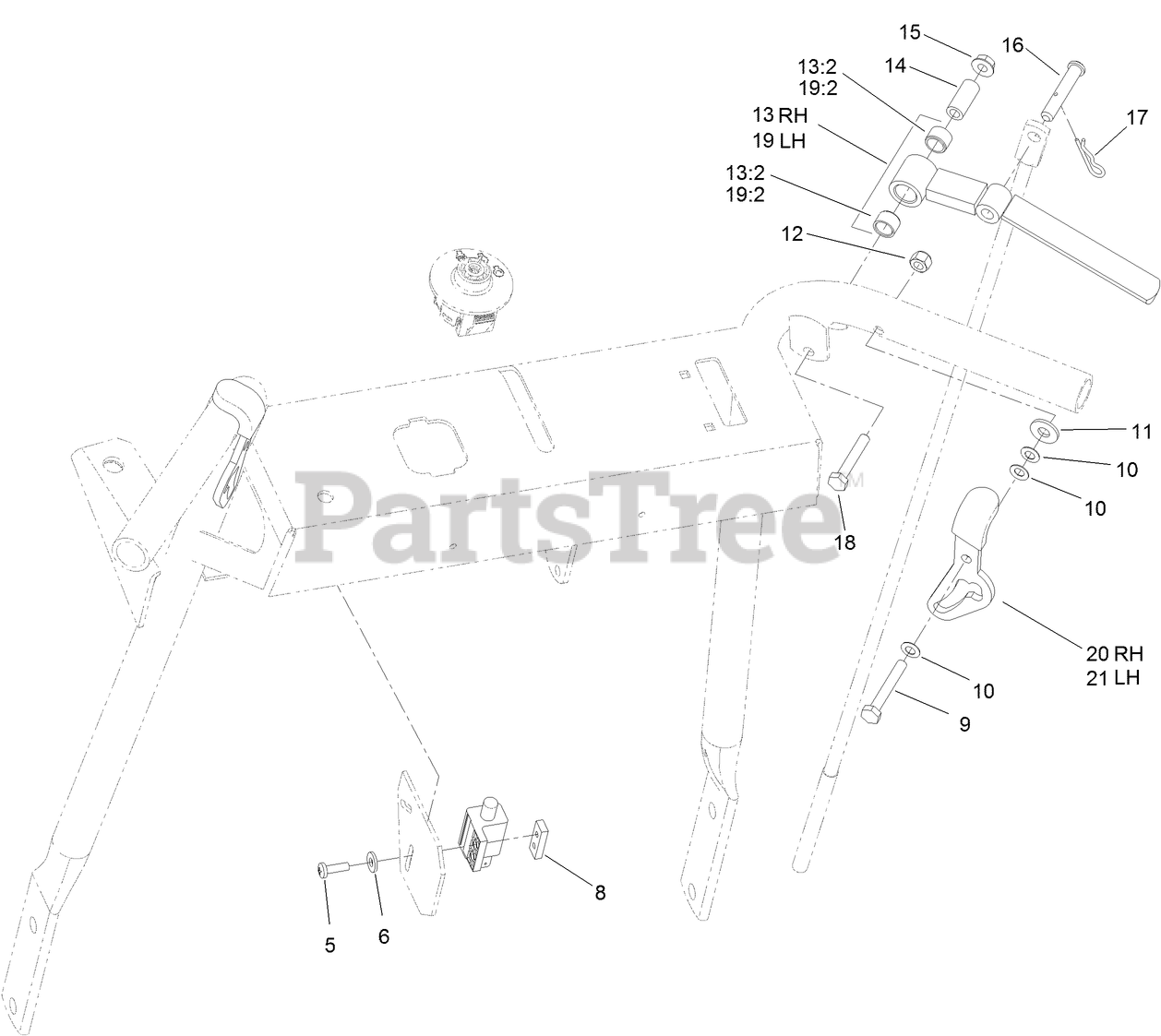

31914 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 412000000 - 999999999) Upper Handle Assembly Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

Upper Handle Assembly Parts Diagram

  • Title

5

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

9

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 103-0219

RH DRIVE LEVER ASM

$176.99

$

Usually ships in 3-6 days

0

13:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

14

Toro 1-603749

BUSHING-LEVER, DRIVE

$8.99

$

In Stock, Qty 5

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-613055

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

17

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

18

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

19

Toro 103-0218

LH DRIVE LEVER ASM

$176.99

$

Usually ships in 3-6 days

0

19:2

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

20

Toro 137-9514

LATCH-RH THUMB,W/GRIP

$50.99

$

Usually ships in 3-6 days

0

21

Toro 137-9515

LATCH-LH THUMB,W/GRIP

$49.99

$

Usually ships in 3-6 days

0
