32-10BE01 (210-H) - Toro Lawn Tractor (1990) 5-Speed Transmission Parts Diagram

Lawn Tractor

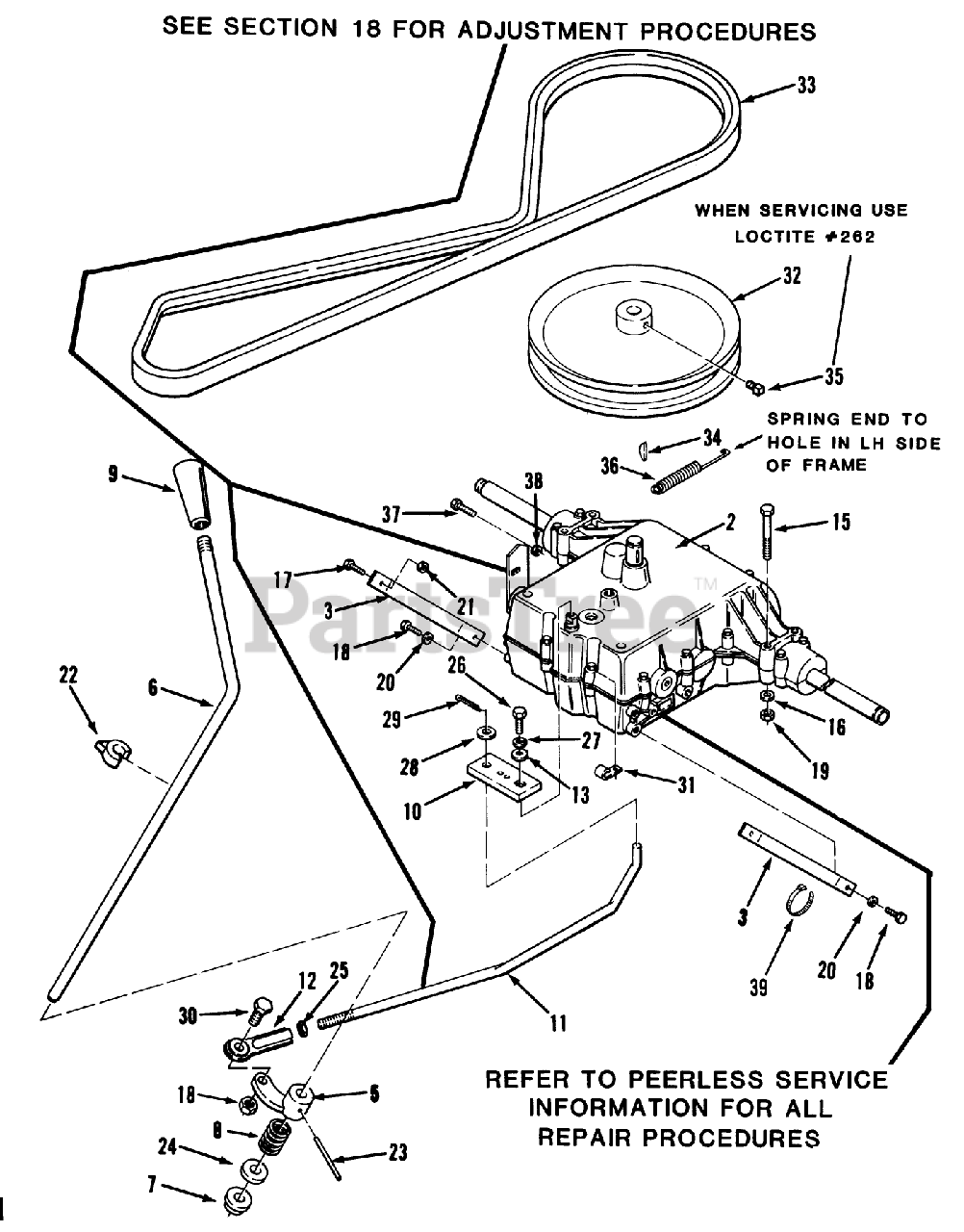

5-Speed Transmission Parts Diagram

  • Title

2

Toro 112299

Trans.-5-Spd.(Peerless Model 920-009)

Note: TORO WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item IS NOT AVAILABLE Through TORO WHEEL HORSE.

$

$

Not available

2

Toro 112299

Trans.-5-Spd.(Peerless Model 920-009)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

3

Toro 112982

DISCONTINUED

$

$

Not available

5

Toro 111430

ARM SHIFTER *B

$

$

Not available

6

Toro 114941

ROD-SHIFT LEVER

$155.99

$

Usually ships in 3-6 days

0

7

Toro 5666

BUSHING-NYLINER

$16.99

$

In Stock, Qty 5

0

8

Toro 111432

SPRING COMPRESSION

$

$

Not available

9

Toro 112983

KNOB

$32.99

$

Usually ships in 3-6 days

0

10

Toro 115198

DISCONTINUED

$

$

Not available

11

Toro 115042

ROD-LINKAGE

$99.99

$

Usually ships in 3-6 days

0

12

Toro 115043

DISCONTINUED

$

$

Not available

13

Toro 104869

WASHER

$

$

Not available

15

Toro 908025

See Supercession: 322-12
(Superseded to 322-12)

$2.49

$

In Stock, Qty 13

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

17

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

18

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

In Stock, only 4 left!

0

19

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

20

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

21

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

22

Toro 113025

POINTER

$4.99

$

Usually ships in 3-6 days

0

23

Toro 933273

SPIROL PIN 7/32X21/2

$2.99

$

Usually ships in 3-6 days

0

24

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

Usually ships in 3-6 days

0

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

25

Toro 915084

See Supercession: 3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 19

0

26

Toro 208153

DISCONTINUED

$

$

Not available

27

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

28

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

29

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

30

Toro 911425

DISCONTINUED

$

$

Not available

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 108790

DISCONTINUED

$

$

Not available

33

Toro 114860

BELT-V

$45.99

$

In Stock, only 3 left!

0

34

Toro 937225

KEY-HI-PRO

$

$

Not available

35

Toro 909540

See Supercession: 3242-2
(Superseded to 3242-2)

$1.99

$

In Stock, Qty 5

0

36

Toro 110769

SPRING-EXTENSION

$15.99

$

In Stock, Qty 7

0

37

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

38

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

39

Toro 100571

DISCONTINUED

$

$

Not available
