32-8.5B-5 - Exmark 32", 36", 48" Walk-Behind Mower, 8.5hp Briggs & Stratton (SN: 40000 - 49999) (1989) Rear Deck Parts Diagram

32", 36", 48" Walk-Behind Mower, 8.5hp Briggs & Stratton

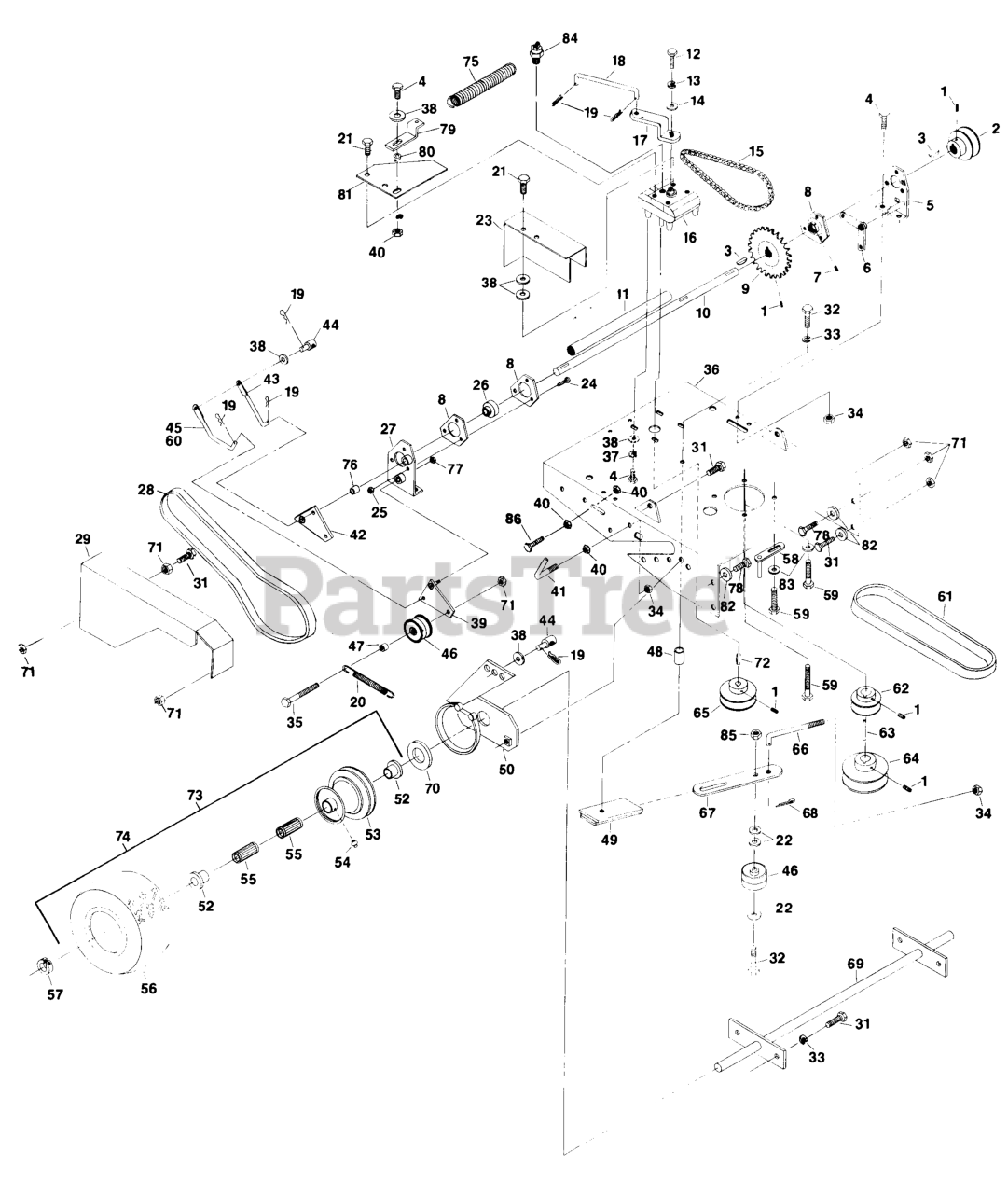

Rear Deck Parts Diagram

  • Title

1

Exmark 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303072

DISCONTINUED (EXMARK)

$

$

Not available

2A

Exmark 1-303409-03

DISCONTINUED

$

$

Not available

3

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, only 1 left!

0

4

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-322034

1-302228
(Superseded to 1-302228)

$

$

Not available

6

Exmark 1-303186

BELLCRANK

$66.99

$

In Stock, only 1 left!

0

7

Exmark 1-803282

DISCONTINUED (EXMARK)

$

$

Not available

8

Exmark 1-303066

DISCONTINUED

$

$

Not available

9

Exmark 1-323110

DISCONTINUED

$

$

Not available

10

Exmark 1-323109

JACKSHAFT

$

$

Not available

11

Exmark 1-323108

DISCONTINUED (EXMARK)

$

$

Not available

11A

Exmark 1-323117

DISCONTINUED (EXMARK)

$

$

Not available

12

Exmark 1-800502

DISCONTINUED

$

$

Not available

13

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

14

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

15

Exmark 1-323111

CHAIN,DRIVE

$

$

Not available

16

Exmark 1-322057

1-321010
(Superseded to 1-321010)

$1067.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323097

LEVER,TRANSMISSION

$

$

Not available

18

Exmark 1-323042

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

20

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 9

0

21

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.99

$

In Stock, only 4 left!

0

22

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-323035

1-323243-01
(Superseded to 1-323243-01)

$

$

Not available

24

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-303067

DISCONTINUED

$

$

Not available

27

Exmark 1-322036

1-302229
(Superseded to 1-302229)

$

$

Not available

28

Exmark 1-323051

BELT,COG

$57.99

$

Usually ships in 3-6 days

0

29

Exmark 1-322051-01

$

$

Currently unavailable

30

Exmark 1-322049-01

FENDER WLDMT,5SP LH UU

$

$

Not available

31

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

33

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 12

0

34

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

36

Exmark 1-322055

1-322079-01
(Superseded to 1-322079-01)

$

$

Not available

37

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

38

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-322038

ARM - IDLER

$

$

Not available

40

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-303151

DISCONTINUED

$

$

Not available

42

Exmark 1-322040

ARM - IDLER

$

$

Not available

43

Exmark 1-323082

1-323163
(Superseded to 1-323163)

$

$

Not available

44

Exmark 1-303168

SWIVEL,SHORT ADJUSTING

$

$

Not available

45

Exmark 1-323084

LINKAGE,LOWER CALIPER RH

$21.99

$

Usually ships in 3-6 days

0

46

Exmark 1-303076

PULLEY,IDLER

$25.99

$

In Stock, Qty 5

0

47

Exmark 1-323073

DISCONTINUED (EXMARK)

$

$

Not available

48

Exmark 1-323037

DISCONTINUED

$

$

Not available

49

Exmark 1-302041

DISCONTINUED

$

$

Not available

50

Exmark 1-302117

1-302184
(Superseded to 1-302184)

$

$

Not available

51

Exmark 1-302119

1-302185
(Superseded to 1-302185)

$

$

Not available

52

Exmark 1-303123

DISCONTINUED

$

$

Not available

53

Exmark 1-322002

DISCONTINUED (EXMARK)

Note: 32" MOWER ONLY

$

$

Not available

53

Exmark 1-302012

1-304222
(Superseded to 1-304222)

Note: 36" AND 48" MOWER ONLY

$

$

Not available

54

Exmark 1-811004

DISCONTINUED

$

$

Not available

55

Exmark 1-323003

BEARING,ROLLER WHEEL 32

Note: 32" MOWER ONLY

$30.99

$

In Stock, only 4 left!

0

55

Exmark 1-303122

BEARING,ROLLER

Note: 36" AND 48" MOWER ONLY

$17.99

$

Usually ships in 3-6 days

0

56

Exmark 1-323002

DISCONTINUED

Note: 32" MOWER ONLY

$

$

Not available

56

Exmark 1-303125

1-323720
(Superseded to 1-323720)

Note: 36" AND 48" MOWER ONLY

$157.99

$

Usually ships in 3-6 days

0

57

Exmark 1-809005

COLLAR,LOCKING 7/8

$

$

Not available

58

Exmark 1-322012

GUIDE - BELT, 32

$

$

Not available

58

Exmark 1-322066

DISCONTINUED

Note: for Vanguard Only

$

$

Not available

59

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: for Briggs & Stratton Only

$1.49

$

In Stock, Qty 20+

0

59

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: for Kawasaki Only

$1.99

$

Usually ships in 3-6 days

0

59

Exmark 1-805005

WASHER-LOCK

Note: for Kawasaki Only

$1.49

$

In Stock, Qty 19

0

59

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

Note: for Vanguard Only

$1.49

$

In Stock, only 3 left!

0

60

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

61

Exmark 1-403018

BELT,TRANSMISSION
(Superseded to 1-403018-SL)

$29.99

$

In Stock, Qty 10

0

62

Exmark 1-323070

DISCONTINUED

$

$

Not available

63

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.99

$

In Stock, Qty 8

0

64

Exmark 1-303073

PULLEY,CAST IRON

$195.99

$

In Stock, only 1 left!

0

65

Exmark 1-403019

DISCONTINUED

$

$

Not available

66

Exmark 1-323038

TIGHTENING ARM

$

$

Not available

67

Exmark 1-303175

DISCONTINUED (EXMARK)

$

$

Not available

68

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.99

$

In Stock, Qty 11

0

69

Exmark 1-322005-01

WLD,AXLE 32

Note: 32" MOWER ONLY

$

$

Not available

69

Exmark 1-302035-01

DISCONTINUED

Note: 36" AND 48" MOWER ONLY

$

$

Not available

70

Exmark 1-303062

1-513338
(Superseded to 1-513338)

$4.99

$

In Stock, Qty 20+

0

71

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

73

Exmark 1-322003

DISCONTINUED (EXMARK)

Note: 32" MOWER ONLY

$

$

Not available

73

Exmark 1-302016

1-304173
(Superseded to 1-304173)

Note: 36" AND 48" MOWER ONLY

$

$

Not available

74

Exmark 1-322004

DISCONTINUED (EXMARK)

Note: 32" MOWER ONLY

$

$

Not available

74

Exmark 1-302017

DISCONTINUED (EXMARK)

Note: 36" AND 48" MOWER ONLY

$

$

Not available

75

Exmark 1-323098

DISCONTINUED

$

$

Not available

76

Exmark 1-303143

1-303548
(Superseded to 1-303548)

$5.99

$

Usually ships in 3-6 days

0

77

Exmark 1-803013

NUTTORQUE ZKPLT

$

$

Not available

78

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

79

Exmark 1-323095

DISCONTINUED (EXMARK)

$

$

Not available

80

Exmark 1-323093

DISCONTINUED

$

$

Not available

81

Exmark 1-323091

DISCONTINUED (EXMARK)

$

$

Not available

82

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

83

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

83A

Exmark 1-303429

DISCONTINUED (EXMARK)

Note: for Vanguard Only

$

$

Not available

84

Exmark 1-303282

SWITCH-START, NEUTRAL

$54.99

$

In Stock, Qty 8

0

85

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

86

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

87

Exmark 1-322064

DISCONTINUED (EXMARK)

$

$

Not available

88

Exmark 1-302008

1-402109
(Superseded to 1-402109)

$135.99

$

In Stock, only 2 left!

0

89

Exmark 1-402003

1-322064
(Superseded to 1-322064)

$

$

Not available
