327 LS - Husqvarna String Trimmer (SN: 20120100001 & Above) STARTER Parts Diagram

String Trimmer

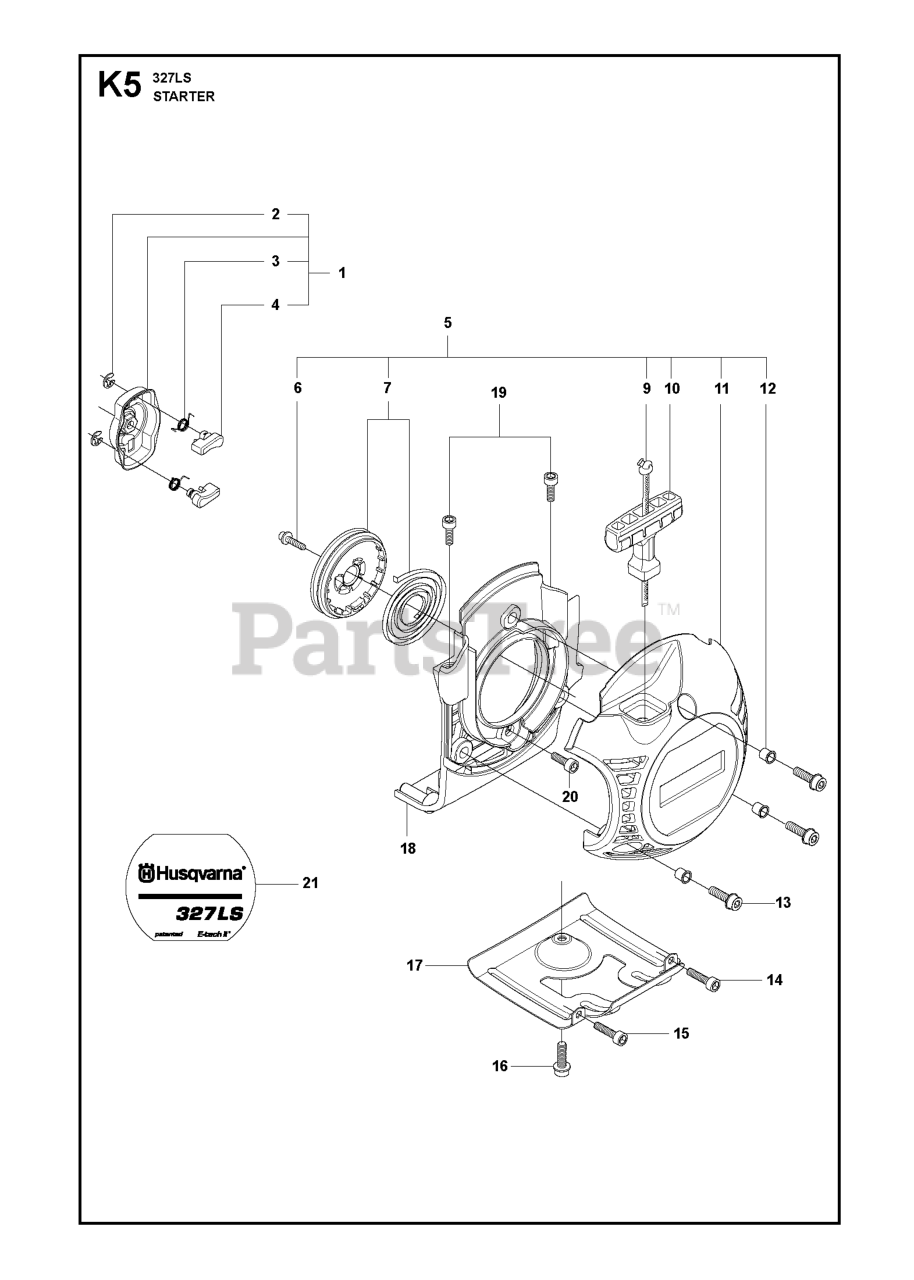

STARTER Parts Diagram

  • Title

9

Husqvarna 505305125

STARTER ROPE

$10.99

$

In Stock, Qty 8

0

5

Husqvarna 505198301

STARTER ASSY

$

$

Not available

14

Husqvarna 503216618

SCREW

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 537332303

STARTER PULLEY

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503217716

SCREW

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 503215316

SCREW

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 503216618

SCREW

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 537034101

PLATE

$22.99

$

In Stock, Qty 9

0

11

Husqvarna 505141301

STARTER HOUSING
(Superseded to 505198301)

$

$

Not available

10

Husqvarna 537008401

STARTER HANDLE

$15.99

$

In Stock, only 2 left!

0

21

Husqvarna 537322410

LABEL

$

$

Not available

19

Husqvarna 503200316

SCREW

$4.99

$

In Stock, Qty 13

0

18

Husqvarna 505141601

BRACKET ASSY

$

$

Not available

8

Husqvarna 537379302

SPACING SLEEVE

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537379302

SPACING SLEEVE

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503200316

SCREW

Note: M5x16

$4.99

$

In Stock, Qty 13

0

16

Husqvarna 503201412

SCREW

Note: M5x12

$3.99

$

In Stock, Qty 6

0

2

Husqvarna 735310820

E-RING 4

$3.99

$

In Stock, Qty 5

0

3

Husqvarna 503873601

SPRING

$3.49

$

In Stock, Qty 11

0

1

Husqvarna 503873305

STARTER PAWL BRIDGE

$29.99

$

In Stock, Qty 20+

0

4

Husqvarna 503873502

STARTER PAWL
(Superseded to 544011401)

$13.99

$

In Stock, Qty 9

0
