33510 - Toro 20" Turf Seeder (SN: 312000001 - 312999999) (2012) Seed Gate Assembly Parts Diagram

20" Turf Seeder

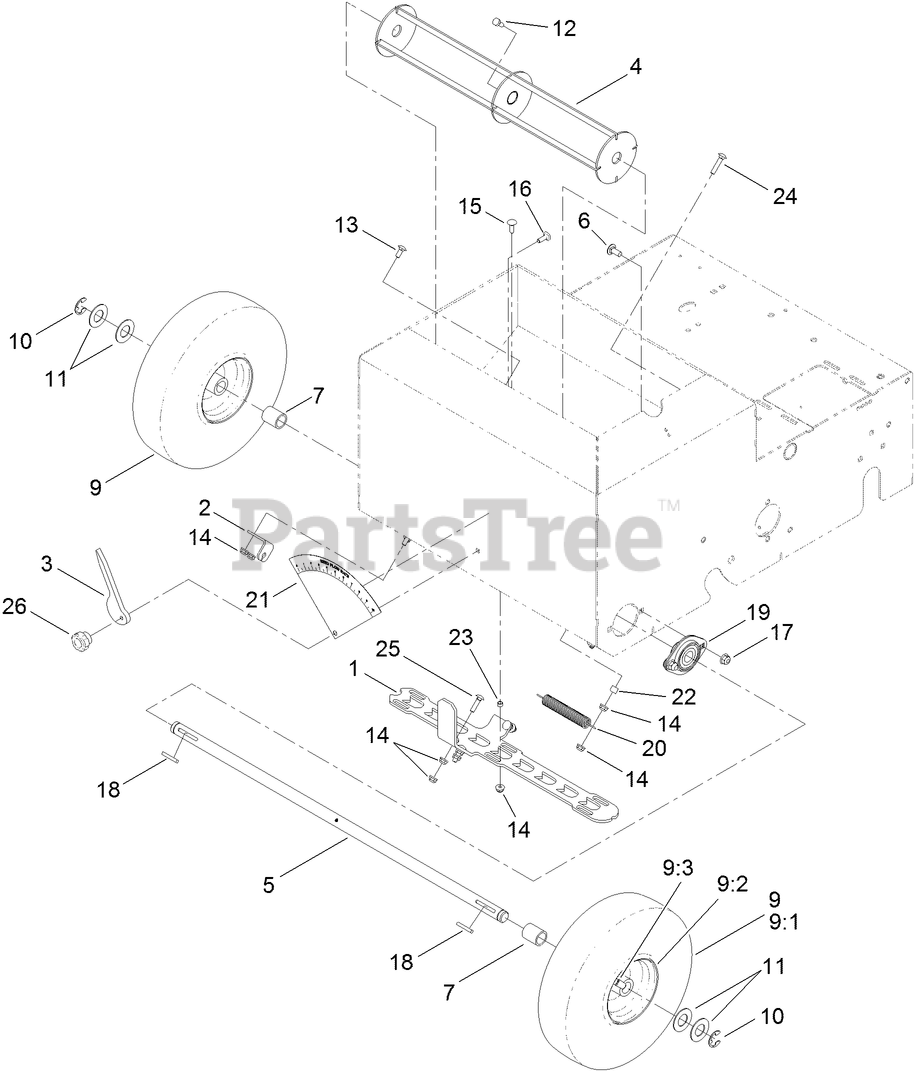

Seed Gate Assembly Parts Diagram

  • Title

1

Toro 121-1905-03

GATE-SEED

$79.99

$

Usually ships in 3-6 days

0

2

Toro 121-1907

BRACKET-FLOW, SEED

$16.99

$

Usually ships in 3-6 days

0

3

Toro 121-1912

GAUGE-FLOW, SEED

$12.99

$

Usually ships in 3-6 days

0

4

Toro 121-1925-03

See Supercession: 125-3782-03
(Superseded to 125-3782-03)

$130.99

$

Usually ships in 3-6 days

0

5

Toro 121-1929

AXLE-FRONT

$121.99

$

Usually ships in 3-6 days

0

6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 105-3838

SPACER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 120-3550

WHEEL ASM

$133.99

$

In Stock, only 1 left!

0

9:1

Toro 121-6081

TIRE

$90.99

$

Usually ships in 3-6 days

0

9:2

Toro 121-6082

WHEEL-RIM

$60.99

$

Usually ships in 3-6 days

0

9:3

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

10

Toro 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

11

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

16

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 92-0049

KEY-SQUARE

$3.99

$

In Stock, Qty 10

0

19

Toro 121-1961

BEARING

$43.99

$

In Stock, only 4 left!

0

20

Toro 121-2016

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

21

Toro 119-4655

DECAL-RATE, FLOW

$37.99

$

Usually ships in 3-6 days

0

22

Toro 66-8010

SPACER

$4.99

$

In Stock, only 3 left!

0

23

Toro 121-2015

SPACER

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

25

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

26

Toro 233-67

KNOB-CHUTE

$10.99

$

In Stock, only 2 left!

0
