33511 - Toro 18" Turf Seeder (SN: 314000001 - 314999999) (2014) Wheel and Height Adjust Assembly Parts Diagram

18" Turf Seeder

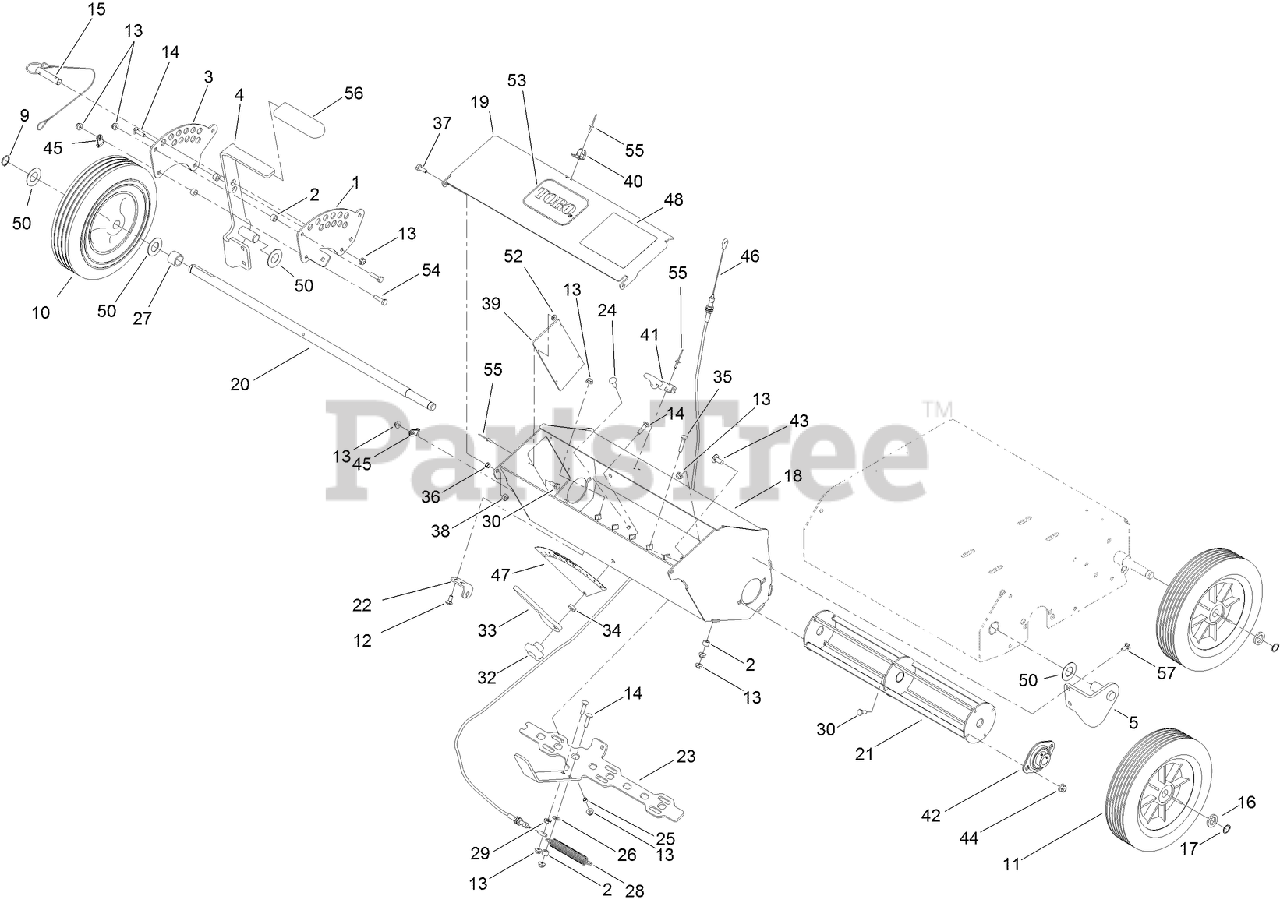

Wheel and Height Adjust Assembly Parts Diagram

  • Title

1

Toro 121-1854

BRACKET

$53.99

$

Usually ships in 3-6 days

0

2

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

3

Toro 121-1856

PLATE

$58.99

$

Usually ships in 3-6 days

0

4

Toro 125-3599-03

BRACKET-ADJUST, HEIGHT

$68.99

$

Usually ships in 3-6 days

0

5

Toro 125-3600-03

BRACKET-WHEEL

$50.99

$

Usually ships in 3-6 days

0

9

Toro 32120-72

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

10

Toro 125-3604

WHEEL

$82.99

$

Usually ships in 3-6 days

0

11

Toro 121-4897

WHEEL-TRANSPORT 10"

$85.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

15

Toro 104-3678

PIN-HITCH

$67.99

$

Usually ships in 3-6 days

0

16

Toro 63-9710

SPACER-BEARING

$14.99

$

Usually ships in 3-6 days

0

17

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 20+

0

18

Toro 125-3590-01

BOX-SEEDER

$253.99

$

Usually ships in 3-6 days

0

19

Toro 125-3610-01

COVER-SEEDBOX

$51.99

$

Usually ships in 3-6 days

0

20

Toro 125-3598

SHAFT-AGITATOR

$149.99

$

Usually ships in 3-6 days

0

21

Toro 121-6138-03

MIXER

$126.99

$

Usually ships in 3-6 days

0

22

Toro 121-1907

BRACKET-FLOW, SEED

$16.99

$

Usually ships in 3-6 days

0

23

Toro 125-3601-03

GATE-SEED

$50.99

$

Usually ships in 3-6 days

0

24

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

25

Toro 121-2015

SPACER

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 83-0730

SPACER-LOCKUP

$15.99

$

Usually ships in 3-6 days

0

28

Toro 121-2016

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 108-6402

KNOB-HANDLE

$1.99

$

In Stock, Qty 5

0

33

Toro 121-1912

GAUGE-FLOW, SEED

$12.99

$

Usually ships in 3-6 days

0

34

Toro 106-8189

SPACER

$

$

Not available

35

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

36

Toro 119-2404

BUSHING-FLANGE, SPLIT

$4.99

$

Usually ships in 3-6 days

0

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Toro 125-3618

WINDOW-BOX, SEEDER

$

$

Currently unavailable

40

Toro 1-643189

See Supercession: 249-40
(Superseded to 249-40)

$12.99

$

Usually ships in 3-6 days

0

41

Toro 1-643188

LATCH-RUBBER

$26.99

$

In Stock, Qty 8

0

42

Toro 121-1961

BEARING

$43.99

$

In Stock, only 4 left!

0

43

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

44

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 2412-149

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

46

Toro 121-6218

CABLE-GATE, SEED

$63.99

$

Usually ships in 3-6 days

0

47

Toro 119-4655

DECAL-RATE, FLOW

$37.99

$

Usually ships in 3-6 days

0

48

Toro 116-8537

DECAL-GRAPH, SEED

$21.99

$

Usually ships in 3-6 days

0

50

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

52

Toro 3269-10

WASHER-BACK

$0.99

$

Usually ships in 3-6 days

0

53

Toro 67-1300

DECAL

$35.99

$

In Stock, only 2 left!

0

54

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

55

Toro 3290-274

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

56

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

57

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0
