33512 - Toro 20" Turf Seeder (SN: 413000000 - 415999999) Seed Gate Assembly Parts Diagram

20" Turf Seeder

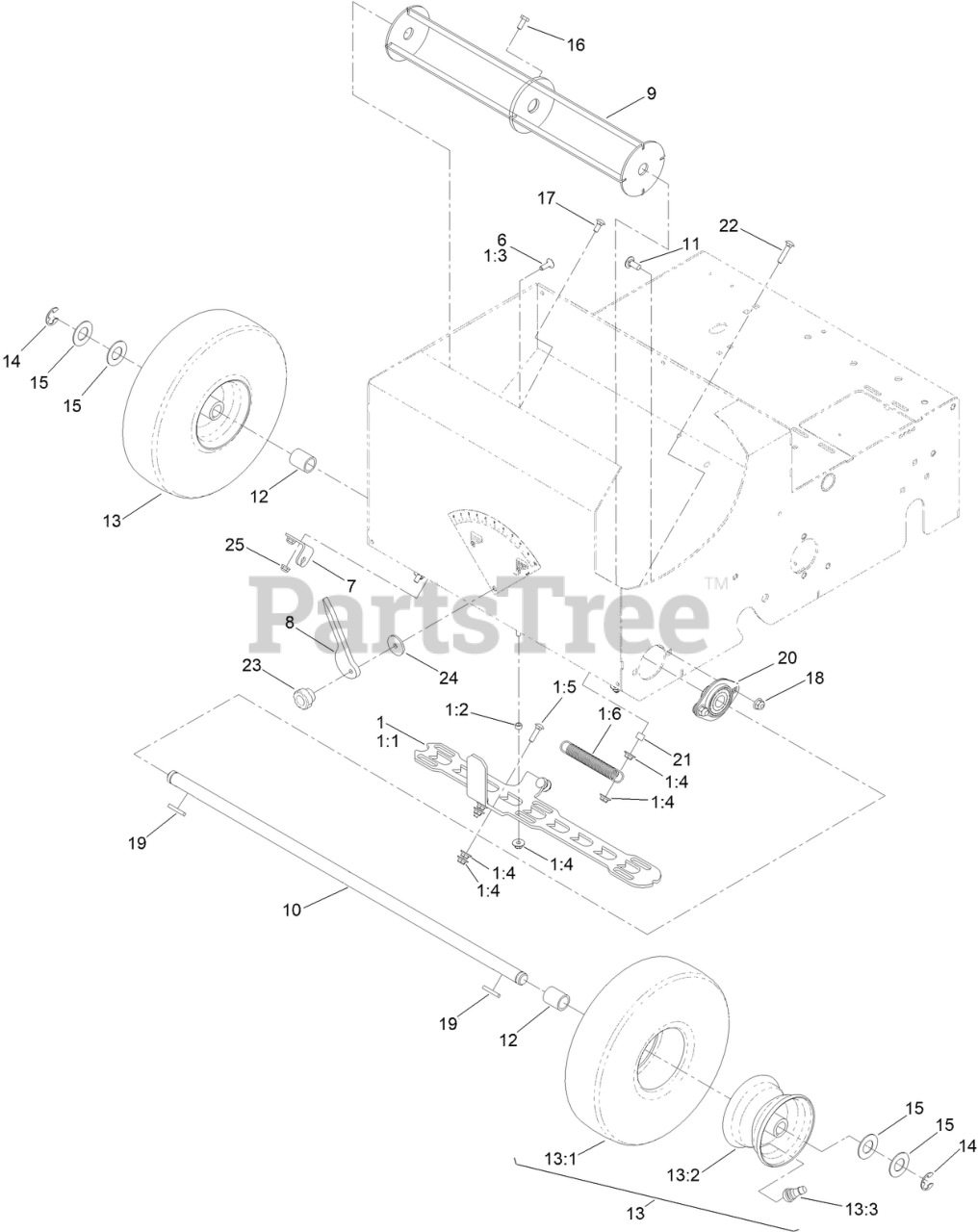

Seed Gate Assembly Parts Diagram

  • Title

1

Toro 126-0815

SEED GATE KIT

$159.99

$

Usually ships in 3-6 days

0

1:1

Toro 126-0415

GATE-SEED

$113.99

$

Usually ships in 3-6 days

0

1:2

Toro 126-0416

SPACER

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

1:4

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 17

0

1:5

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

1:6

Toro 121-2016

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

6

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

7

Toro 121-1907

BRACKET-FLOW, SEED

$16.99

$

Usually ships in 3-6 days

0

8

Toro 121-1912

GAUGE-FLOW, SEED

$12.99

$

Usually ships in 3-6 days

0

9

Toro 125-3782-03

MIXER

$130.99

$

Usually ships in 3-6 days

0

10

Toro 121-1929

AXLE-FRONT

Note: Apply anti-seize compound to axle ends before installing tires.

$121.99

$

Usually ships in 3-6 days

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 105-3838

SPACER

$12.99

$

Usually ships in 3-6 days

0

13

Toro 120-3707

WHEEL ASM

$94.99

$

Usually ships in 3-6 days

0

13:1

Toro 121-6081

TIRE

$90.99

$

Usually ships in 3-6 days

0

13:2

Toro 120-3706

WHEEL-RIM

$63.99

$

Usually ships in 3-6 days

0

13:3

Toro 5108

VALVE

$8.49

$

In Stock, only 2 left!

0

14

Toro 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

15

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

16

Toro 321-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 92-0049

KEY-SQUARE

$3.99

$

In Stock, Qty 10

0

20

Toro 121-1961

BEARING

$43.99

$

In Stock, only 4 left!

0

21

Toro 66-8010

SPACER

$4.99

$

In Stock, only 3 left!

0

22

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

23

Toro 233-67

KNOB-CHUTE

$10.99

$

In Stock, only 2 left!

0

24

Toro 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

25

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
