33515 - Toro 21" Walk-Behind Aerator (SN: 406000000 - 412999999) Height Adjustment Assembly Parts Diagram

21" Walk-Behind Aerator

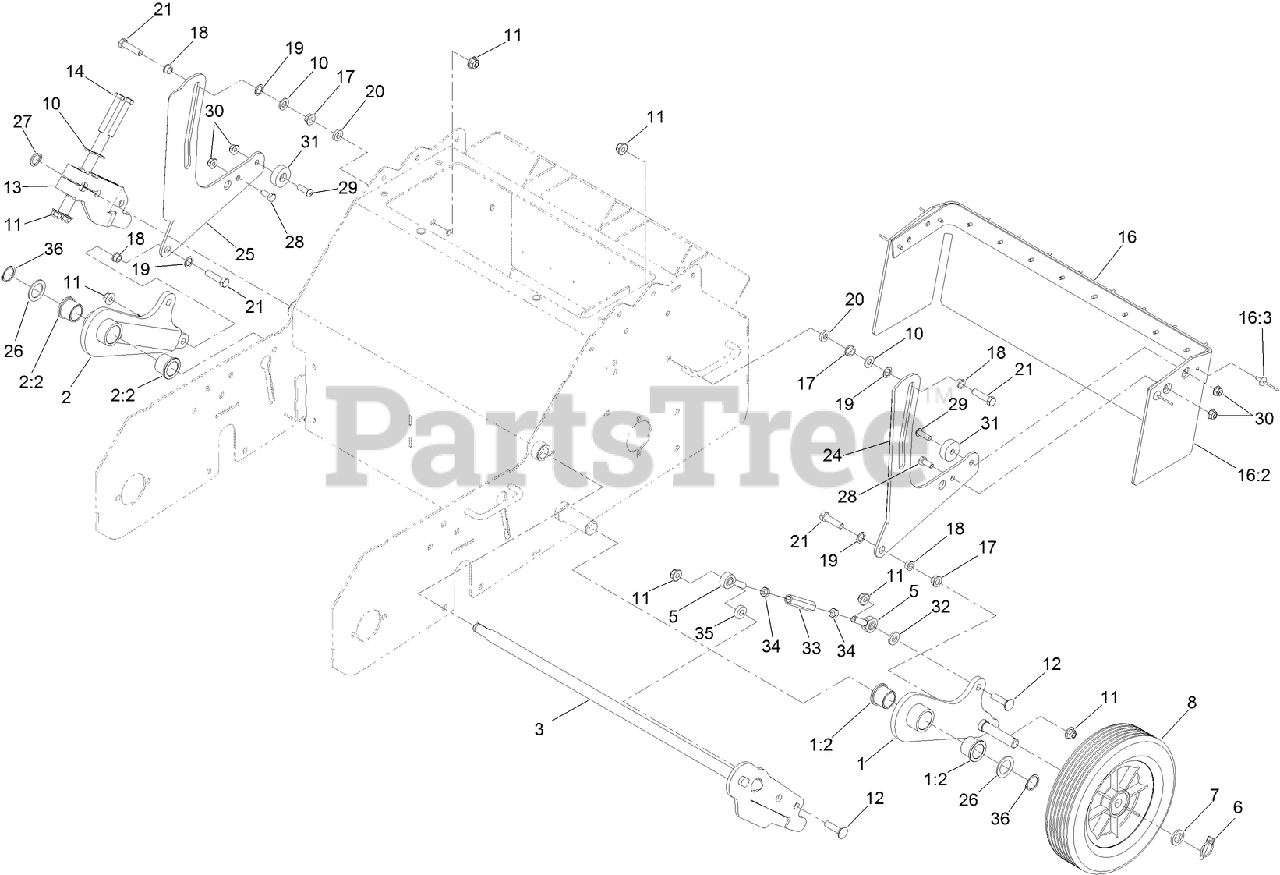

Height Adjustment Assembly Parts Diagram

  • Title

1

Toro 126-5098

LH WHEEL ARM ASM

$179.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8949

BUSHING-FLANGE

$7.99

$

In Stock, only 2 left!

0

2

Toro 126-5099

RH WHEEL ARM ASM

$179.99

$

Usually ships in 3-6 days

0

2:2

Toro 94-8949

BUSHING-FLANGE

$7.99

$

In Stock, only 2 left!

0

3

Toro 126-5160

See Supercession: 126-7273
(Superseded to 126-7273)

$232.99

$

Usually ships in 3-6 days

0

5

Toro 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

6

Toro 3290-495

PIN-KLIK

$7.49

$

Usually ships in 3-6 days

0

7

Toro 63-9710

SPACER-BEARING

$14.99

$

Usually ships in 3-6 days

0

8

Toro 120-3560

WHEEL-10 INCH

$96.99

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 126-1345-03

ARM-LIFT, RH

$71.99

$

Usually ships in 3-6 days

0

14

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 126-0564

GUARD-FOOT

$176.99

$

Usually ships in 3-6 days

0

16:2

Toro 116-9884

FOOT-SHIELD

$103.99

$

Usually ships in 3-6 days

0

16:3

Toro 3269-20

RIVET-POP

$2.49

$

Usually ships in 3-6 days

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, only 2 left!

0

19

Toro 94-8196

WASHER-NYLON

$7.49

$

Usually ships in 3-6 days

0

20

Toro 80-7730

SPACER

$15.99

$

Usually ships in 3-6 days

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 126-0824-01

GUARD-ARM, LH

$47.99

$

Usually ships in 3-6 days

0

25

Toro 126-0825-01

GUARD-ARM, RH

$47.99

$

Usually ships in 3-6 days

0

26

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

27

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 116-8331

GUIDE-ARM, TRAIL

$23.99

$

Usually ships in 3-6 days

0

32

Toro 87-7480

WASHER

$1.49

$

In Stock, only 1 left!

0

33

Toro 116-9855

ROD-LIFT LINK

$20.99

$

In Stock, only 1 left!

0

34

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

35

Toro 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

36

Toro 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0
