33516 - Toro 18" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) Transmission and Wheel Assembly Parts Diagram

18" Walk-Behind Aerator

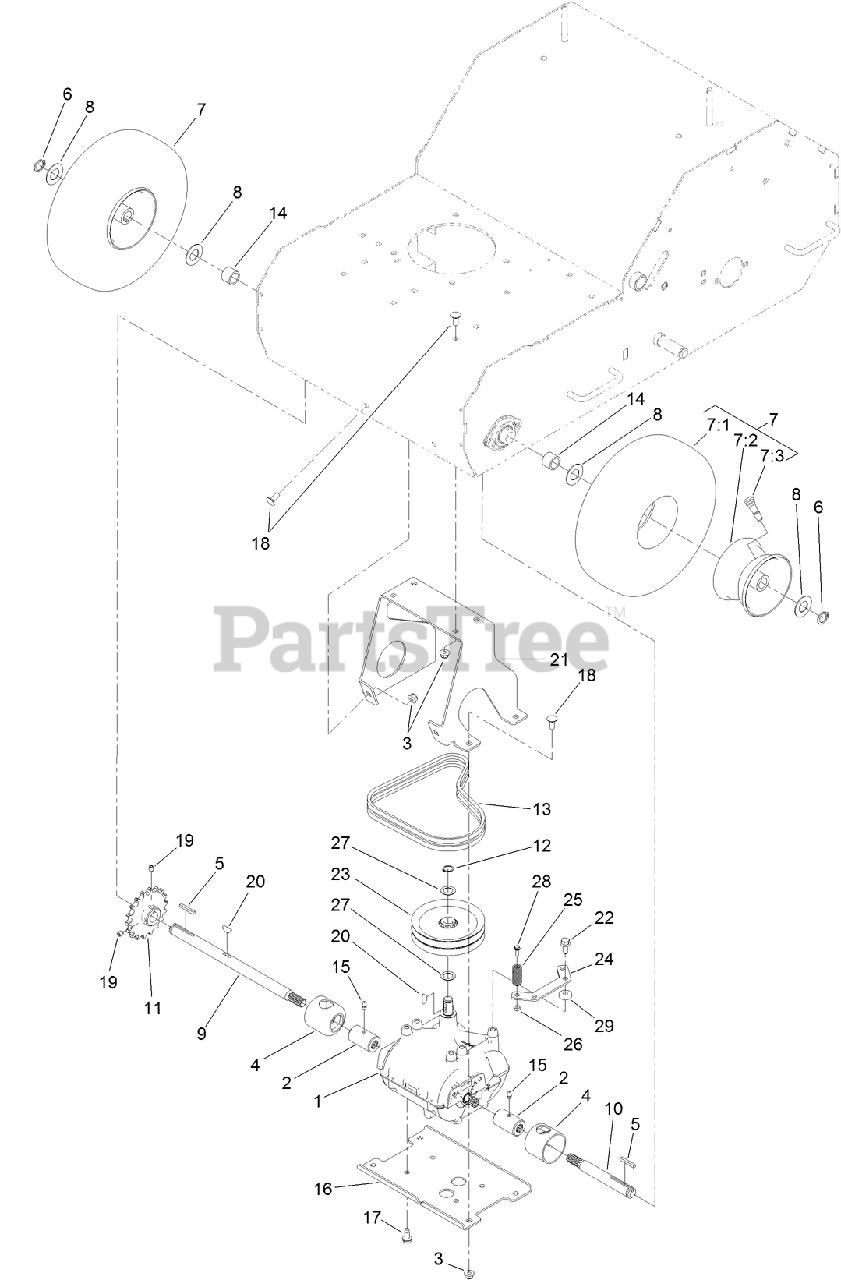

Transmission and Wheel Assembly Parts Diagram

  • Title

1

Toro 120-3695

See Supercession: 131-5740
(Superseded to 131-5740)

$683.99

$

Usually ships in 3-6 days

0

2

Toro 1-323680

COUPLER

$45.99

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 51-4220

GUARD-COUPLER

$22.99

$

In Stock, only 1 left!

0

5

Toro 92-2649

KEY-SQUARE

$4.49

$

Usually ships in 3-6 days

0

6

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-3550

WHEEL ASM

$133.99

$

In Stock, only 1 left!

0

7:1

Toro 121-6081

TIRE

$90.99

$

Usually ships in 3-6 days

0

7:2

Toro 121-6082

WHEEL-RIM

$60.99

$

Usually ships in 3-6 days

0

7:3

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

8

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

9

Toro 121-4878

SHAFT-TRANSMISSION

$139.99

$

Usually ships in 3-6 days

0

10

Toro 121-4879

SHAFT-TRANSMISSION

$139.99

$

Usually ships in 3-6 days

0

11

Toro 130-2115

SPROCKET

$117.99

$

Usually ships in 3-6 days

0

12

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 20+

0

13

Toro 130-2142

BELT-V, MATCHED PAIR

$74.99

$

Usually ships in 3-6 days

0

14

Toro 83-0730

SPACER-LOCKUP

$15.99

$

Usually ships in 3-6 days

0

15

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

16

Toro 125-3823-03

MOUNT-TRANSMISSION, LOWER

$53.99

$

Usually ships in 3-6 days

0

17

Toro 9264964

SCREW-HWH, THREAD CUT

$1.99

$

In Stock, only 4 left!

0

18

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 3246-3

SCREW-HSH

$14.99

$

Usually ships in 3-6 days

0

20

Toro 3257-5

KEY-WOODRUFF

$6.49

$

In Stock, Qty 19

0

21

Toro 125-3938-03

CHANNEL-MOUNT, TRANSMISSION

$

$

Currently unavailable

22

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 127-4003

SHEAVE

$188.99

$

Usually ships in 3-6 days

0

24

Toro 130-2105-03

GUIDE-SPRING, MOUNT

$

$

Currently unavailable

25

Toro 127-4077

SPRING-RETAINER

$13.99

$

Usually ships in 3-6 days

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 108-0015

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

29

Toro 115-5118

WASHER

$38.99

$

Usually ships in 3-6 days

0
