33518 - Toro 30" Stand-On Aerator (SN: 312000001 - 312999999) (2012) Auxiliary Hydraulic Assembly Parts Diagram

30" Stand-On Aerator

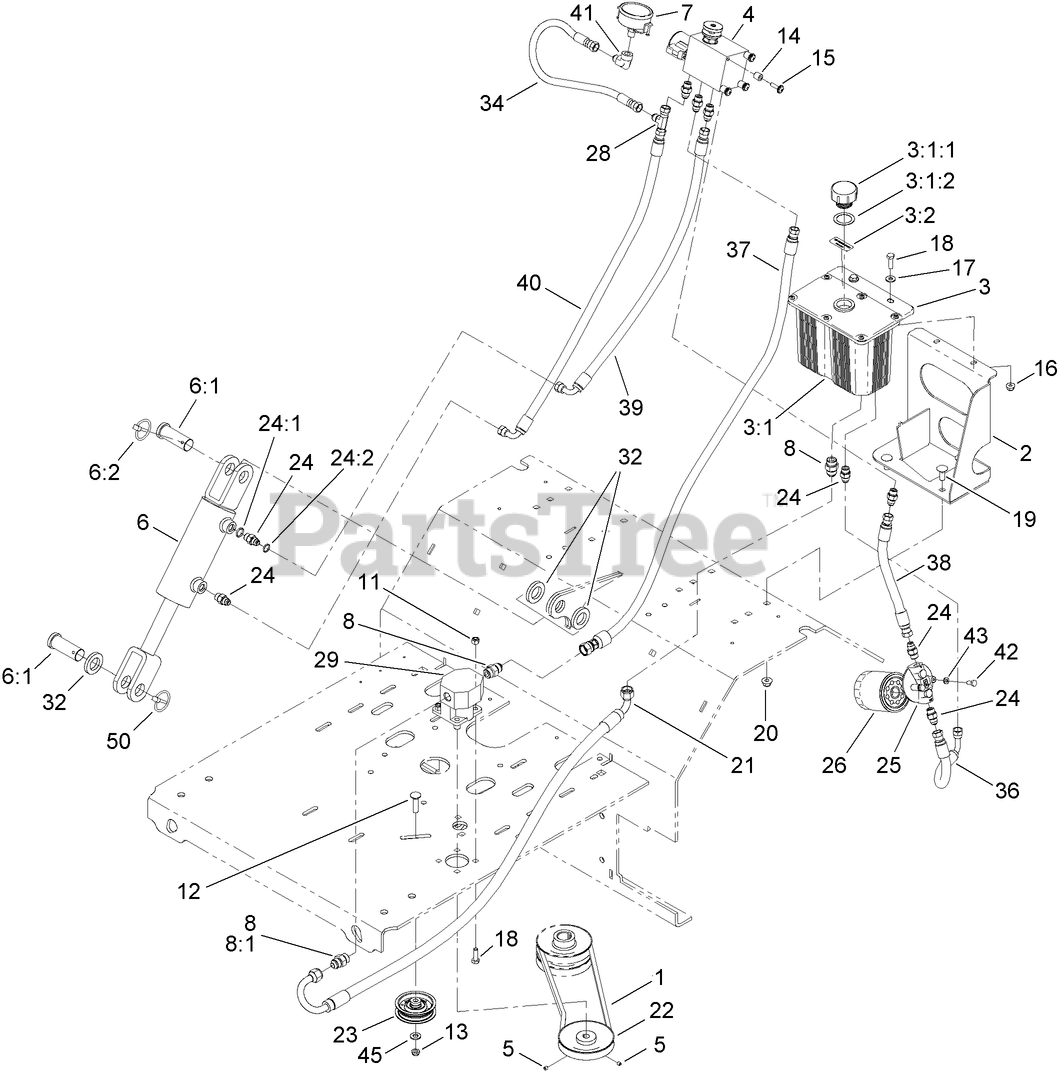

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Toro 116-6894

BELT-A

$25.99

$

In Stock, only 2 left!

0

2

Toro 116-6618-03

BRACKET-TANK, HYDRAULIC

$146.99

$

Usually ships in 3-6 days

0

3

RESERVOIR ASM

Note: Not serviced separately

$

$

Not available

3:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

3:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

3:2

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

4

Toro 116-6752

See Supercession: 126-2726
(Superseded to 126-2726)

$

$

Not available

5

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

6

Toro 116-6969

HYD CYLINDER ASM

$1108.99

$

Usually ships in 3-6 days

0

6:1

Toro 116-7290

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

6:2

Toro 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

7

Toro 116-6753

GAUGE-PRESSURE

$125.99

$

Usually ships in 3-6 days

0

8

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

14

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

15

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, only 2 left!

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 116-6993

HYD HOSE ASM

$

$

Not available

22

Toro 116-6667

PULLEY

$103.99

$

Usually ships in 3-6 days

0

23

Toro 116-6760

PULLEY-IDLER, FLAT

$45.99

$

In Stock, only 2 left!

0

24

Toro 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

24:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

24:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

25

Toro 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

26

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

28

Toro 353-877

FITTING-HYD, TEE

$25.99

$

Usually ships in 3-6 days

0

29

Toro 116-6751

PUMP-GEAR

$

$

Not available

32

Toro 116-6781

SPACER

$16.99

$

Usually ships in 3-6 days

0

34

Toro 116-6679

HOSE ASM-HYD HP

$

$

Not available

36

Toro 116-6675

HOSE-HYDRAULIC, LP

$39.99

$

Usually ships in 3-6 days

0

37

Toro 116-6676

HOSE ASM-HYD HP

$

$

Not available

38

Toro 116-6680

HOSE ASM-HYD

$

$

Not available

39

Toro 116-6677

HOSE-HYDRAULIC

$67.99

$

Usually ships in 3-6 days

0

40

Toro 116-6678

HOSE-HYDRAULIC, HP

$70.99

$

Usually ships in 3-6 days

0

41

Toro 116-6686

FITTING-ELBOW, 90

$

$

Not available

42

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

45

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0
