34002 - Lawn-Boy Insight Snow Thrower (SN: 280000001 - 280999999) (2008) ENGINE, FRAME AND WHEEL ASSEMBLY Parts Diagram

Insight Snow Thrower

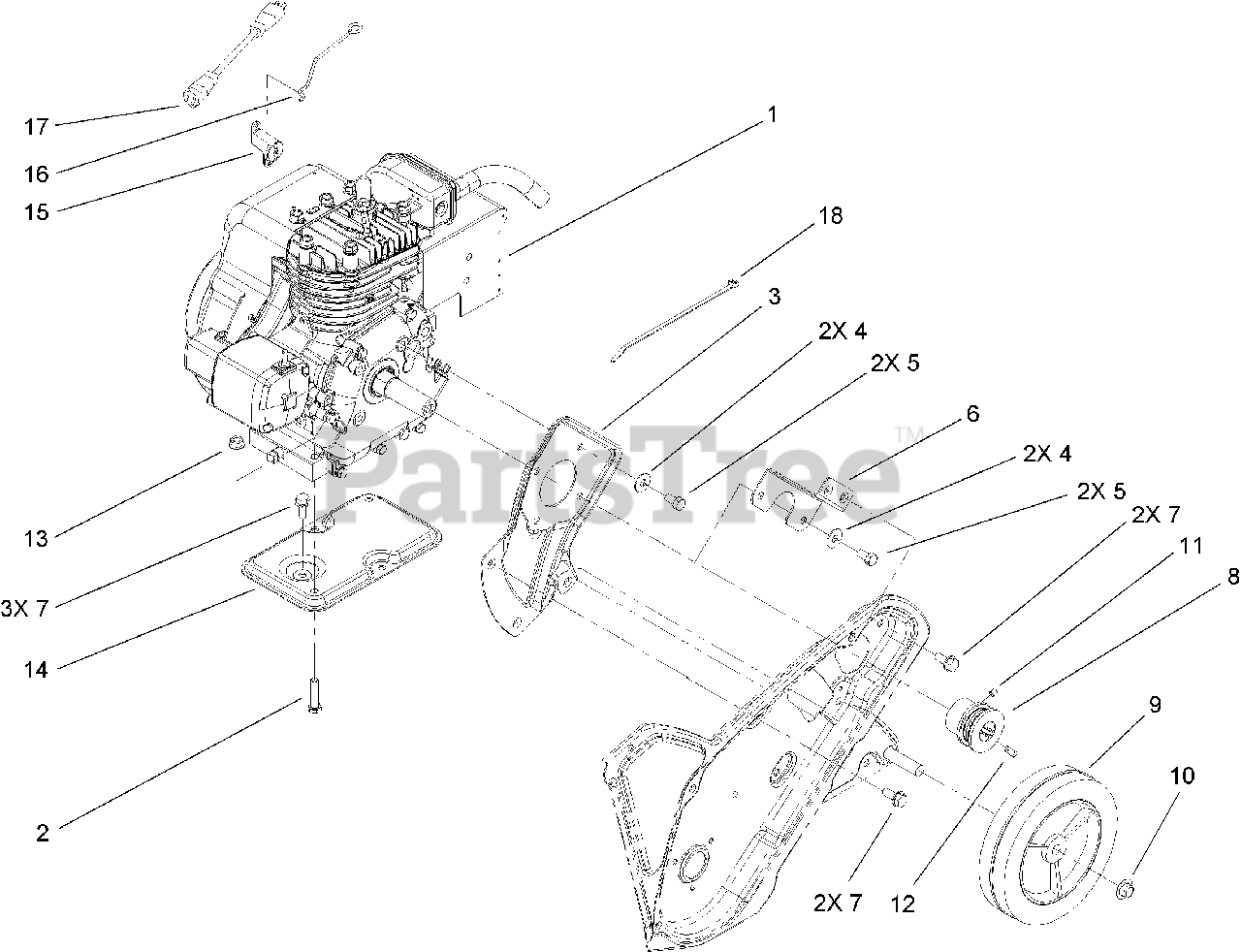

ENGINE, FRAME AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

ENGINE-TECUMSEH, LH195SP-67530D

Note: Not serviced separately Obtain from your local Tecumseh dealer

$

$

Not available

2

Lawn-Boy 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 108-4892-03

PLATE-ENGINE, PTO

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

5

Lawn-Boy 3210-2

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 110-9354-03

SUPPORT-ENGINE, SIDE

$9.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 32144-11

SCREW-HWHTF

$8.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 108-4934

PULLEY-ENGINE, 4 CYCLE

$81.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 66-6510

WHEEL
(Superseded to 145-0701)

$27.99

$

In Stock, Qty 15

0

10

Lawn-Boy 32112-14

NUT-PUSH

$2.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 3241-7

SCREW-SQH

$4.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-4902-03

SUPPORT-ENGINE

$

$

Not available

15

Lawn-Boy 110-9362

BELLCRANK-CHOKE, 4 STROKE

$16.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 110-9365

LINK-CHOKE KNOB, L-HEAD

$16.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 99-9300

CORD-EXTENSION
(Superseded to 117-0020)

$25.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 5

0
