34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Engine Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

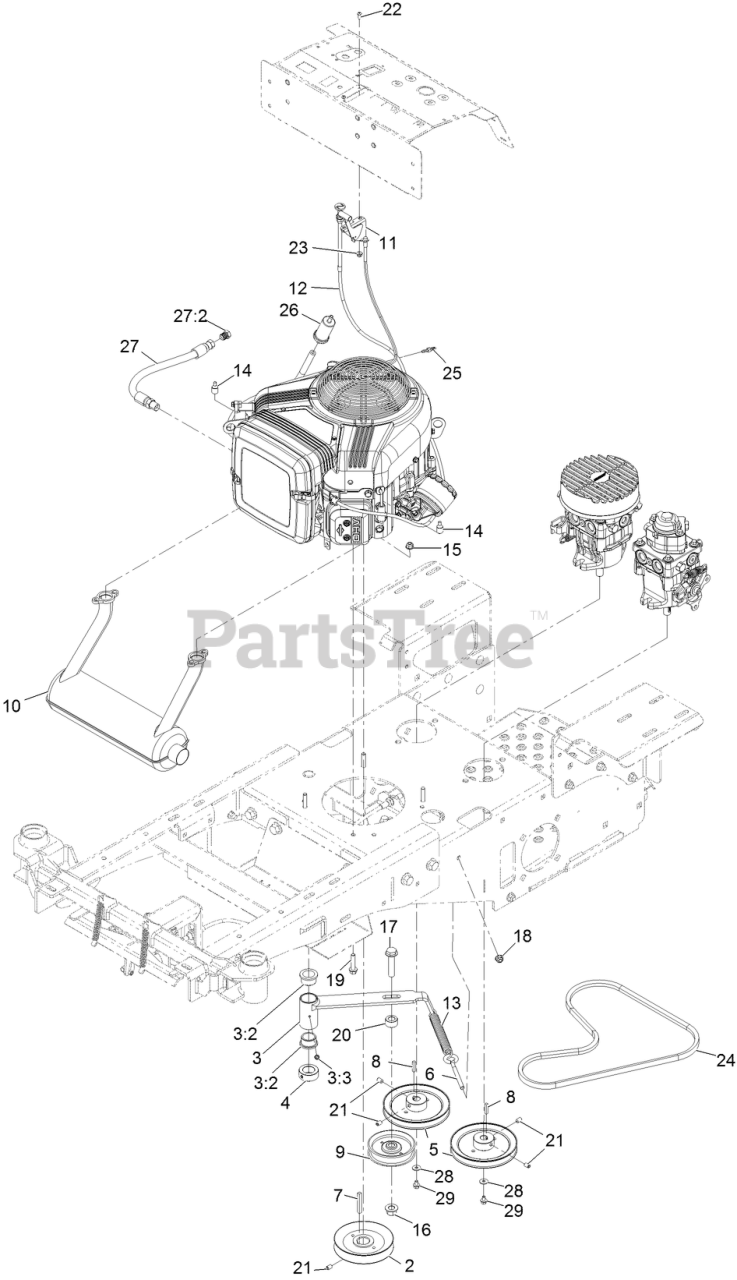

Engine Assembly Parts Diagram

  • Title

2

Toro 135-5657

PULLEY-DRIVE

$48.99

$

In Stock, only 3 left!

0

3

Toro 135-6833

ASM, ARM-TENSION

$59.99

$

Usually ships in 3-6 days

0

3:2

Toro 256-132

BUSHING-FLANGE

$9.99

$

In Stock, only 3 left!

0

3:3

Toro 302-63

FITTING-GREASE, ZERK

$3.49

$

In Stock, only 4 left!

0

4

Toro 135-5382

COLLAR

$10.99

$

Usually ships in 3-6 days

0

5

Toro 135-9068

PULLEY ASM

$88.99

$

Usually ships in 3-6 days

0

6

Toro 142-0418

BOLT, EYE - 5/8 X 5/16-18 X 5

$5.99

$

Usually ships in 3-6 days

0

7

Toro 103-4177

KEY

$5.99

$

In Stock, only 2 left!

0

8

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

9

Toro 135-5662

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 2 left!

0

10

Toro 135-9245

BRIGGS 16/18 HP MUFFLER

$193.99

$

Usually ships in 3-6 days

0

11

Toro 135-5260

CABLE-THROTTLE

$57.99

$

In Stock, only 2 left!

0

12

Toro 135-5707

CABLE-CHOKE

$57.99

$

In Stock, only 2 left!

0

13

Toro 135-5780

SPRING-EXTENSION

$30.99

$

In Stock, Qty 6

0

14

Toro 135-5677

TUBE-SHRINK, HEAT

$6.99

$

Usually ships in 3-6 days

0

15

Toro 135-6109

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 15

0

16

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

17

Toro 3234-46

SCREW-HHF

$15.99

$

In Stock, only 2 left!

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 142-0559

SCREW-HHF
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 116-2959

SPACER

$8.99

$

In Stock, only 2 left!

0

21

Toro 3246-17

SETSCREW-HSH

$1.49

$

In Stock, Qty 10

0

22

Toro 135-6374

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 135-6342

NUT-HEX FLANGE

$2.49

$

In Stock, only 4 left!

0

24

Toro 135-9078

BELT-V, A48

$52.99

$

In Stock, only 2 left!

0

25

Toro 120-1996

FITTING-STR

$8.99

$

Usually ships in 3-6 days

0

26

Toro 135-6687

FILTER-FUEL

$17.99

$

Usually ships in 3-6 days

0

27

Toro 135-5365

OIL DRAIN HOSE ASM (W/PLUG)

$46.99

$

In Stock, only 3 left!

0

27:2

Toro AU218-774

PLUG

$

$

Not available

28

Toro 135-6273

WASHER

$1.99

$

Usually ships in 3-6 days

0

29

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0
