34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Motion Control Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

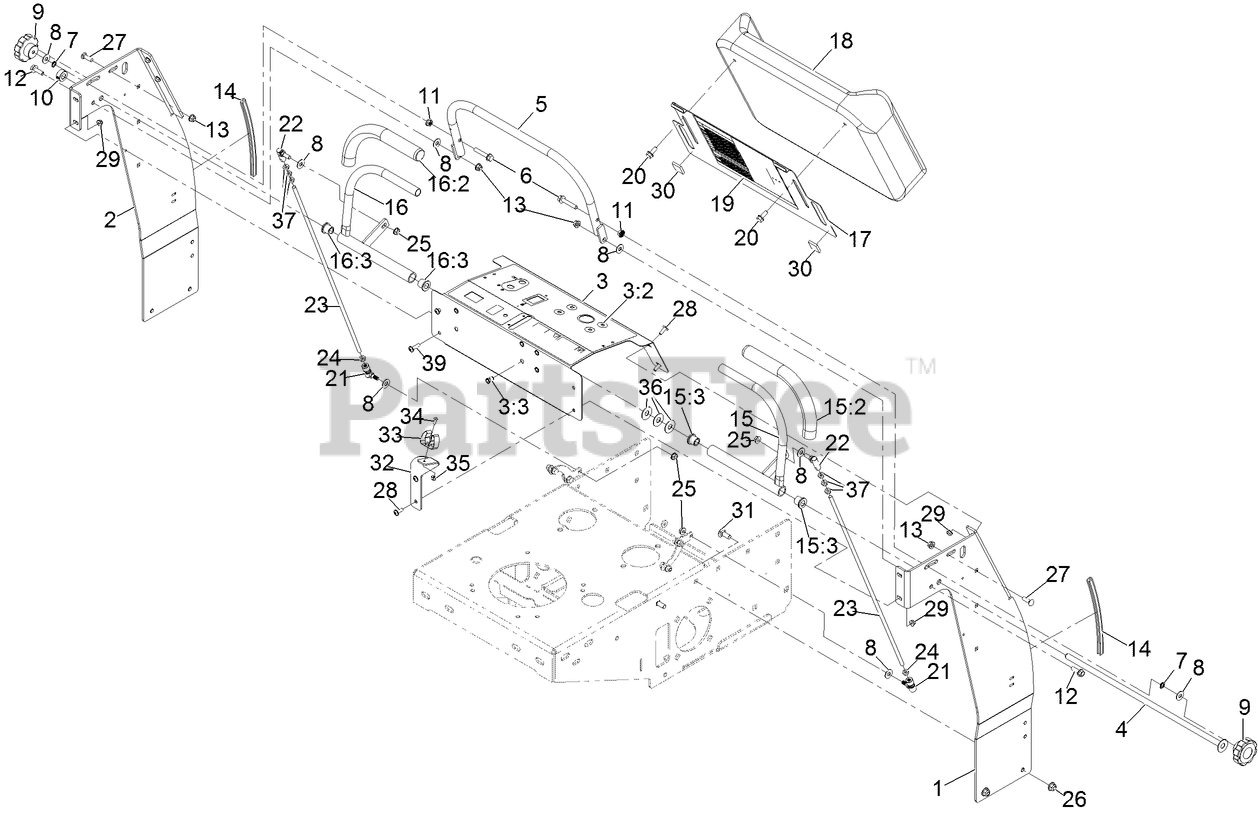

Motion Control Assembly Parts Diagram

  • Title

1

Toro 142-0688-05

UPRIGHT-LH, JR36 [BLK-TXT]

$295.99

$

Usually ships in 3-6 days

0

2

Toro 142-0689-05

UPRIGHT-RH, JR36 [BLK-TXT]

$295.99

$

Usually ships in 3-6 days

0

3

Toro 142-3239

ASM-PANEL, CONTROL

$213.99

$

Usually ships in 3-6 days

0

3:2

Toro 135-7811

DECAL-CONTROL

$33.99

$

Usually ships in 3-6 days

0

3:3

Toro 138-2760

NUT-CLINCH, HEX

$2.49

$

Usually ships in 3-6 days

0

4

Toro 135-5430

ROD-PIVOT, JOY STICK

$34.99

$

Usually ships in 3-6 days

0

5

Toro 135-5427-05

BAR-SPEED [BLK-TXT]

$113.99

$

Usually ships in 3-6 days

0

6

Toro 135-5779

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 135-6286

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

8

Toro HDW14535

FLAT WASHER, 5/16 NOM,ST/ST,18-8

$1.49

$

In Stock, only 3 left!

0

9

Toro 135-5689

KNOB-FLUTED

$12.99

$

In Stock, only 2 left!

0

10

Toro 135-6192

COLLAR

$42.99

$

Usually ships in 3-6 days

0

11

Toro 118-1722

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

0

12

Toro 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

13

Toro 135-6109

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 15

0

14

Toro 135-7000

STRIP-TRIM, 9.0"

$3.49

$

Usually ships in 3-6 days

0

15

Toro 135-7002

STICK-JOY, LT

$146.99

$

Usually ships in 3-6 days

0

15:2

Toro 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

15:3

Toro 135-5694

BUSHING-FLANGE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 135-7003

STICK-JOY, RT

$146.99

$

Usually ships in 3-6 days

0

16:2

Toro 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

16:3

Toro 135-5694

BUSHING-FLANGE

$3.99

$

Usually ships in 3-6 days

0

17

Toro 142-0727-05

PLATE, KNEE PAD, JR36

$110.99

$

Usually ships in 3-6 days

0

18

Toro 135-7884

PAD-KNEE

$156.99

$

Usually ships in 3-6 days

0

19

Toro 142-3313

DECAL-CHART, SPRAY

$17.99

$

Usually ships in 3-6 days

0

20

Toro 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

21

Toro 135-5718

BALL JOINT-QUICK DISCONNECT, SS

$19.99

$

Usually ships in 3-6 days

0

22

Toro 135-5257

BALLJOINT-SS

$22.99

$

In Stock, only 2 left!

0

23

Toro 135-7481

LINKAGE-CONTROL, SS

$41.99

$

Usually ships in 3-6 days

0

24

Toro 107-0282

NUT-HEX

$0.99

$

In Stock, Qty 6

0

25

Toro 107-0380

NUT-HHF

$6.49

$

Usually ships in 3-6 days

0

26

Toro 135-6110

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 15

0

27

Toro HDW17294

BOLT,CARRIAGE,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

28

Toro 135-7080

SCREW-HSBHF

$3.49

$

Usually ships in 3-6 days

0

29

Toro 135-6108

NUT-HEX FLANGE

$1.99

$

Usually ships in 3-6 days

0

30

Toro 93-9155

VELCRO

$1.99

$

Usually ships in 3-6 days

0

31

Toro 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

32

Toro 142-0745-05

MOUNT, GUN, JR36

$22.99

$

Usually ships in 3-6 days

0

33

Toro 135-5661

HOLDER-TOOL, CLIP

$5.99

$

Usually ships in 3-6 days

0

34

Toro 135-6374

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

35

Toro 135-6342

NUT-HEX FLANGE

$2.49

$

In Stock, only 4 left!

0

36

Toro 135-5586

WASHER

$0.99

$

Usually ships in 3-6 days

0

37

Toro 135-6512

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

39

Toro 135-7081

SCREW-HSBHF

$3.99

$

Usually ships in 3-6 days

0
