34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Spreader Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

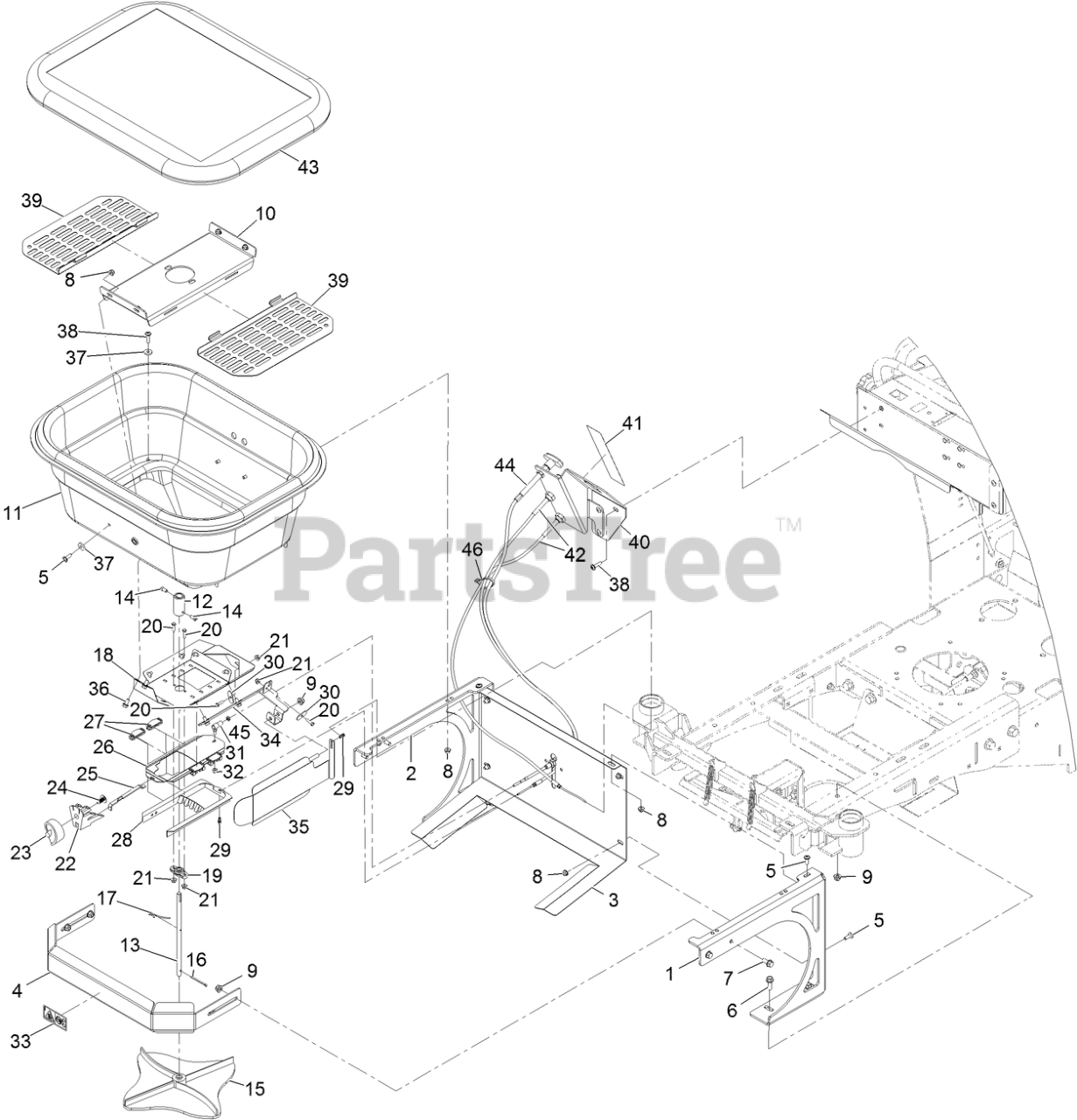

Spreader Assembly Parts Diagram

  • Title

1

Toro 142-0784

WLD, FRAME, HOPPER, L, 120

$158.99

$

Usually ships in 3-6 days

0

2

Toro 142-0785

WLD, FRAME, HOPPER, R, 120

$304.99

$

Usually ships in 3-6 days

0

3

Toro 142-0708

BACKSHIELD, HOPPER, JR36

$202.99

$

Usually ships in 3-6 days

0

4

Toro 142-0698

BUMPER, FRONT, HOPPER, 120

$78.99

$

Usually ships in 3-6 days

0

5

Toro 135-7080

SCREW-HSBHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

7

Toro 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

8

Toro 135-6108

NUT-HEX FLANGE

$1.99

$

Usually ships in 3-6 days

0

9

Toro 135-6109

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 15

0

10

Toro 142-1987

PAN-HOPPER, 120

$99.99

$

Usually ships in 3-6 days

0

11

Toro 135-8519

HOPPER-120LB

$482.99

$

Usually ships in 3-6 days

0

12

Toro 135-5937

COUPLER-SS

$34.99

$

In Stock, only 1 left!

0

13

Toro 135-8504

SHAFT-HOPPER, 120

$31.99

$

In Stock, only 3 left!

0

14

Toro 3241-7

SCREW-SQH

$4.49

$

In Stock, only 2 left!

0

15

Toro 135-5954

SPINNER-SPREADER
(Superseded to 142-3506)

$49.99

$

In Stock, only 2 left!

0

16

Toro 135-6340

PIN-COTTER

$2.49

$

In Stock, only 3 left!

0

17

Toro 135-5957

WIRE-AGITATOR
(Superseded to 142-3666)

$4.99

$

In Stock, Qty 8

0

18

Toro 142-1990

BASE-HOPPER, 120

$35.99

$

Usually ships in 3-6 days

0

19

Toro 135-5943

BEARING-FLANGE

$6.49

$

In Stock, Qty 7

0

20

Toro 135-6356

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

21

Toro 135-6342

NUT-HEX FLANGE

$2.49

$

In Stock, only 4 left!

0

22

Toro 126-0985

MOUNT-DIAL
(Superseded to 142-3319)

$3.49

$

In Stock, Qty 20+

0

23

Toro 126-0988

DIAL
(Superseded to 142-3359)

$13.99

$

In Stock, only 3 left!

0

24

Toro 126-0986

CLIP
(Superseded to 88-1080)

$10.99

$

In Stock, only 2 left!

0

25

Toro 135-5965

LINKAGE-GATE, RATE

$33.99

$

In Stock, only 3 left!

0

26

Toro 135-5573

SLIDE-DOOR, HOPPER

$13.99

$

In Stock, only 4 left!

0

27

Toro 126-0990

GUIDE-RATE, GATE
(Superseded to 142-3316)

$2.49

$

In Stock, Qty 20+

0

28

Toro 126-0991

DIFFUSER

$41.99

$

Usually ships in 3-6 days

0

29

Toro 135-5961

RETAINER-CABLE, WIRE

$5.49

$

In Stock, Qty 6

0

30

Toro 135-5569

RETAINER, CABLE

$2.49

$

In Stock, Qty 5

0

31

Toro 135-5682

BALL JOINT-SS

$59.99

$

In Stock, only 2 left!

0

32

Toro HDW05856

NUT-NYL LOCK,#10-32,ST/ST 18-8

$1.49

$

In Stock, only 3 left!

0

33

Toro 135-6725

DECAL-DISMEMBERMENT HAZARD

$4.99

$

Usually ships in 3-6 days

0

34

Toro 135-5388

MOUNT-DEFLECTOR, SIDE

$44.99

$

Usually ships in 3-6 days

0

35

Toro 135-5589

DEFLECTOR-SIDE, SPREADER

$67.99

$

Usually ships in 3-6 days

0

36

Toro 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

37

Toro 135-6341

WASHER

$1.99

$

Usually ships in 3-6 days

0

38

Toro 135-7081

SCREW-HSBHF

$3.99

$

Usually ships in 3-6 days

0

39

Toro 142-1995

SCREEN-HOPPER, 120

$34.99

$

Usually ships in 3-6 days

0

40

Toro 142-3283-05

MOUNT-SPEEDOMETER

$84.99

$

Usually ships in 3-6 days

0

41

Toro 142-3351

DECAL-HOPPER CONTROL

$9.99

$

Usually ships in 3-6 days

0

42

Toro 135-5931

CABLE-PUSH/PULL

$64.99

$

In Stock, Qty 18

0

43

Toro 135-7980

COVER-HOPPER, SMALL

$77.99

$

In Stock, only 2 left!

0

44

Toro 135-8492

120LB HOPPER CABLE

$107.99

$

In Stock, only 2 left!

0

45

Toro 520-0019

NUT-HEX, JAM

$0.99

$

In Stock, only 3 left!

0

46

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
