34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Wheel Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

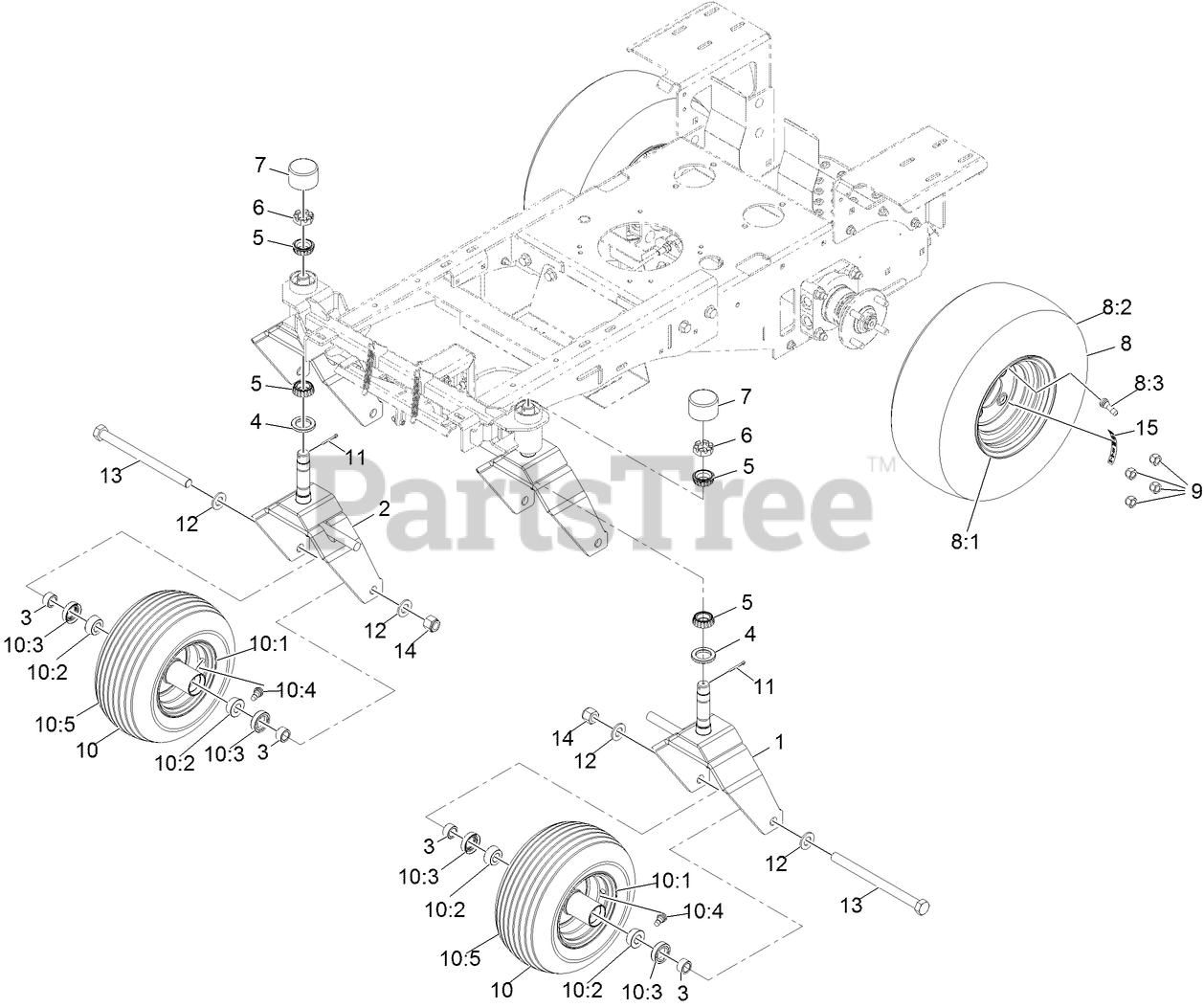

Wheel Assembly Parts Diagram

  • Title

1

Toro 142-0918-05

WLD, CASTER, L, JR36, 36R

$234.99

$

Usually ships in 3-6 days

0

2

Toro 142-0919-05

WLD, CASTER, R, JR36, 36R

$234.99

$

Usually ships in 3-6 days

0

3

Toro 135-5683

SPACER-AXLE

$3.49

$

In Stock, Qty 17

0

4

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

5

Toro 254-92

CONE-BEARING, OUTER

$20.99

$

In Stock, only 1 left!

0

6

Toro 1-809082

NUT-SHH

$15.99

$

In Stock, only 3 left!

0

7

Toro 135-5756

CAP-DUST, RUBBER

$3.99

$

In Stock, only 3 left!

0

8

Toro 135-8621

TIRE/RIM ASM, K500-4H-BLK
(Superseded to 142-5511)

$166.99

$

In Stock, only 1 left!

0

8:1

Toro 135-6679

RIM-8X5.375, CENTERED

$66.99

$

Usually ships in 3-6 days

0

8:2

Toro 126-1618

TIRE

$140.99

$

Usually ships in 3-6 days

0

8:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

9

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

10

Toro 135-8615

WHEEL AND TIRE
(Superseded to 142-5510)

$164.99

$

Usually ships in 3-6 days

0

10:1

Toro 135-6680

RIM-6 X 4.5

$97.99

$

Usually ships in 3-6 days

0

10:2

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

10:3

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

10:4

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

10:5

Toro 135-6681

TIRE-RIB

$66.99

$

Usually ships in 3-6 days

0

11

Toro 135-6292

PIN-COTTER

$1.99

$

In Stock, only 3 left!

0

12

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Toro 135-6300

SCREW-HH

$17.99

$

In Stock, only 2 left!

0

14

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

15

Toro 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0
