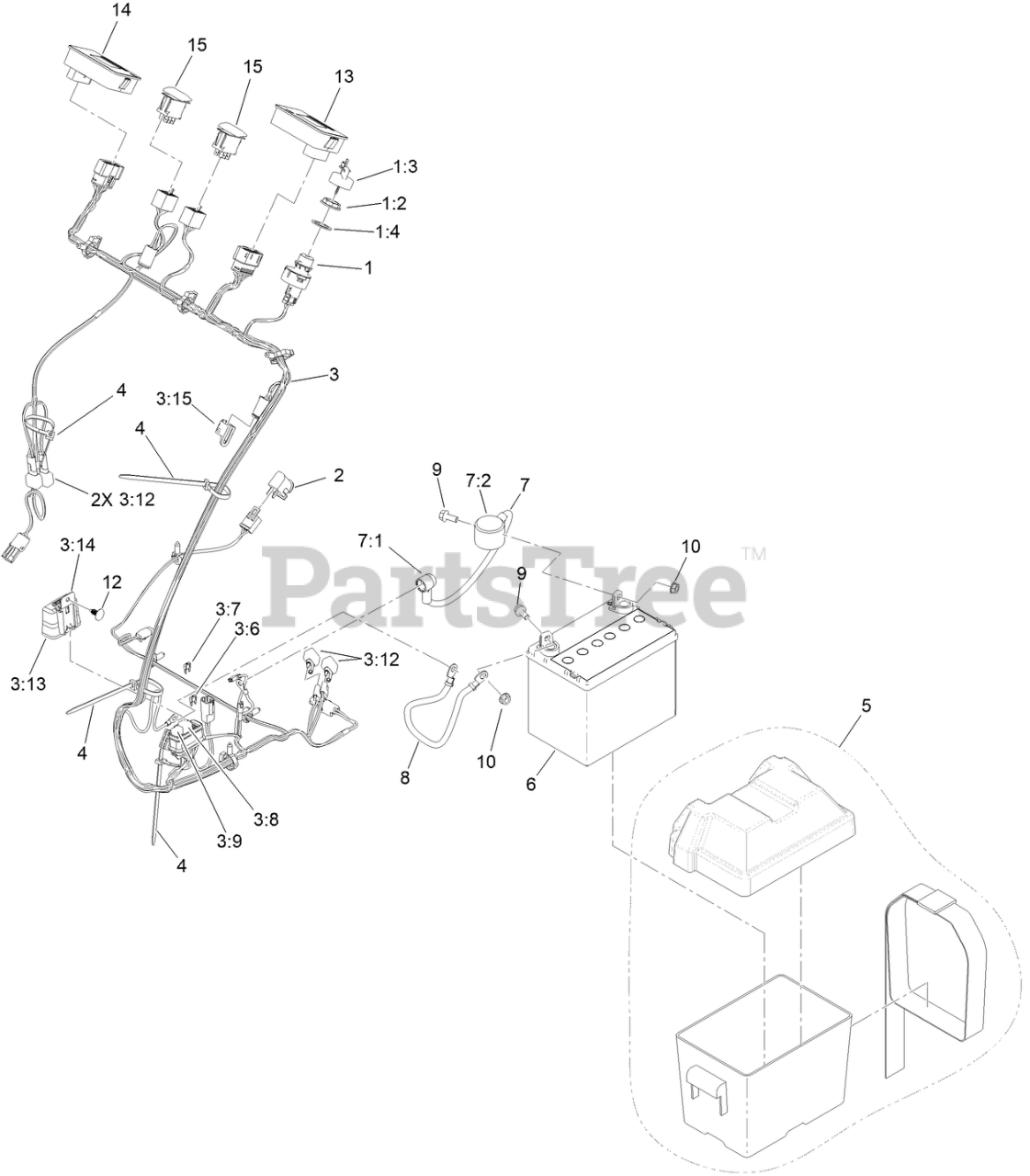

34232 - Toro Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Electrical Assembly Parts Diagram

Spray Master Stand-On Spreader/Sprayer

Electrical Assembly Parts Diagram

  • Title

1

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

1:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

1:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 1 left!

0

1:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

2

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

3

Toro 146-4981

HARNESS-WIRE

$

$

Currently unavailable

3:6

Toro 121-8868

FUSE-MINI BLADE, 20 AMP

$6.49

$

Usually ships in 3-6 days

0

3:7

Toro 121-8869

FUSE-MINI BLADE, 25 AMP

$6.49

$

Usually ships in 3-6 days

0

3:8

Toro 126-3991

RELAY-MICRO

$44.99

$

In Stock, Qty 18

0

3:9

Toro 135-5221

RELAY-COIL, NC, MP280

$94.99

$

In Stock, only 2 left!

0

3:12

Toro 135-7791

DIODE-OVERMOLDED, 6A, FAST RECOVERY

$16.99

$

Usually ships in 3-6 days

0

3:13

Toro 32180-176

COVER-BLOCK, FUSE

$8.99

$

Usually ships in 3-6 days

0

3:14

Toro 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0

3:15

Toro 32180-156

CAP-PLUG, 6 WAY

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Toro 126-1424

BATTERY BOX

$54.99

$

In Stock, only 1 left!

0

6

BATTERY- WET, 12V, 300 CCA

Note: Not serviced separately

$

$

Not available

7

Toro 135-4669

POSITIVE BATTERY CABLE ASM

$13.99

$

Usually ships in 3-6 days

0

7:1

Toro 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

7:2

Toro 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

8

Toro 114-9715

CABLE-BATTERY, NEGATIVE

$27.99

$

Usually ships in 3-6 days

0

9

Toro 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

10

Toro 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

12

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

13

Toro 135-6674

HOUR METER ASM

$178.99

$

Usually ships in 3-6 days

0

14

Toro 135-6675

HOUR METER ASM

$178.99

$

Usually ships in 3-6 days

0

15

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0
