350 - Husqvarna Chainsaw (SN: 19980400001 - 19993600000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

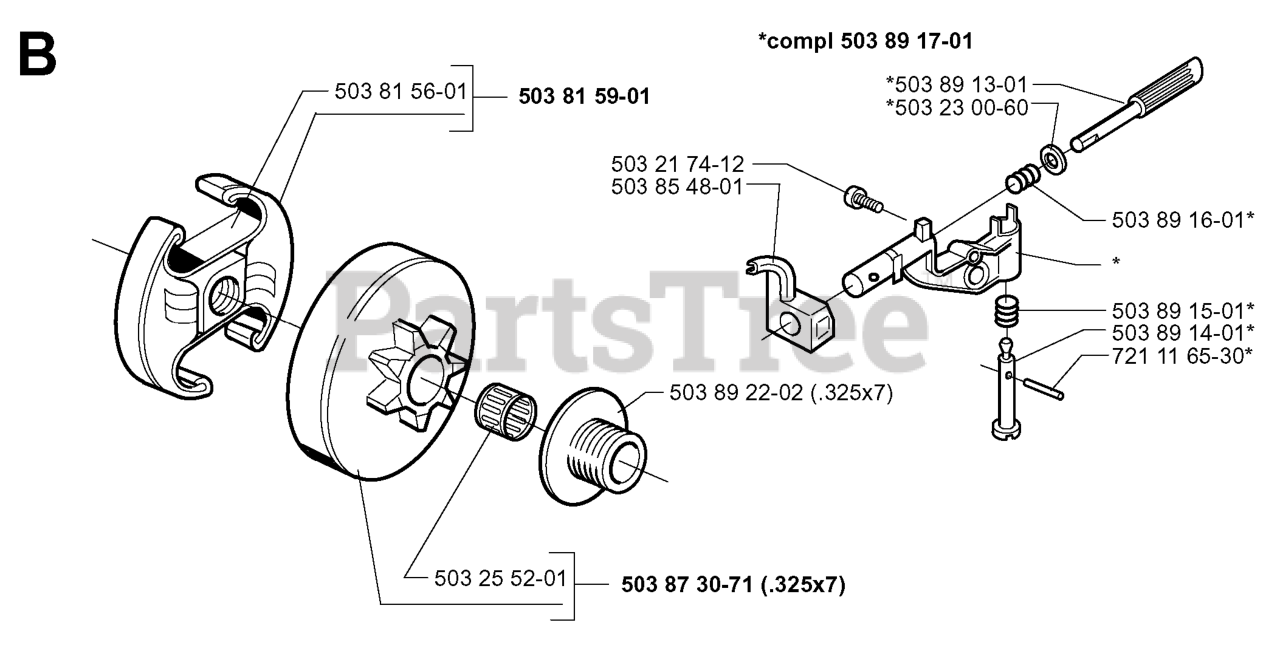

CLUTCH & OIL PUMP Parts Diagram

  • Title

503 81 56-01

Husqvarna 503815601

SPRING
(Superseded to 537080001)

$7.49

$

Usually ships in 3-10 days

0

503 89 22-02

Husqvarna 503892202

PINION

Note: .325X7

$7.49

$

In Stock, only 4 left!

0

503 21 74-12

Husqvarna 503217412

SCREW

$3.99

$

In Stock, Qty 10

0

503 89 16-01

Husqvarna 503891601

SPRING

$8.49

$

In Stock, only 3 left!

0

503 89 17-01

Husqvarna 503891701

OIL PUMP
(Superseded to 537105501)

$45.99

$

In Stock, only 3 left!

0

503 25 52-01

Husqvarna 503255201

NEEDLE BEARING

$

$

Not available

503 81 59-01

Husqvarna 503815901

CLUTCH
(Superseded to 537110503)

$45.99

$

In Stock, Qty 16

0

503 89 14-01

Husqvarna 503891401

Screw

$

$

Not available

503 87 30-71

Husqvarna 503873071

CLUTCH DRUM SPUR
(Superseded to 578097901)

Note: .325X7

$39.99

$

In Stock, Qty 20+

0

503 89 15-01

Husqvarna 503891501

SPRING

$5.99

$

In Stock, Qty 7

0

503 23 00-60

Husqvarna 503230060

WASHER

$2.49

$

In Stock, only 1 left!

0

721 11 65-30

Husqvarna 721116530

PIN

$

$

Not available

503 85 48-01

Husqvarna 503854801

SEAL

$9.49

$

In Stock, Qty 8

0

503 89 13-01

Husqvarna 503891301

PUMP PISTON
(Superseded to 537069302)

$20.99

$

In Stock, only 2 left!

0
