36003 (824 QXE) - Toro 24" SnowMaster Snow Thrower (SN: 413000000 - 414299999) Ignition and Electrical Assembly Parts Diagram

24" SnowMaster Snow Thrower

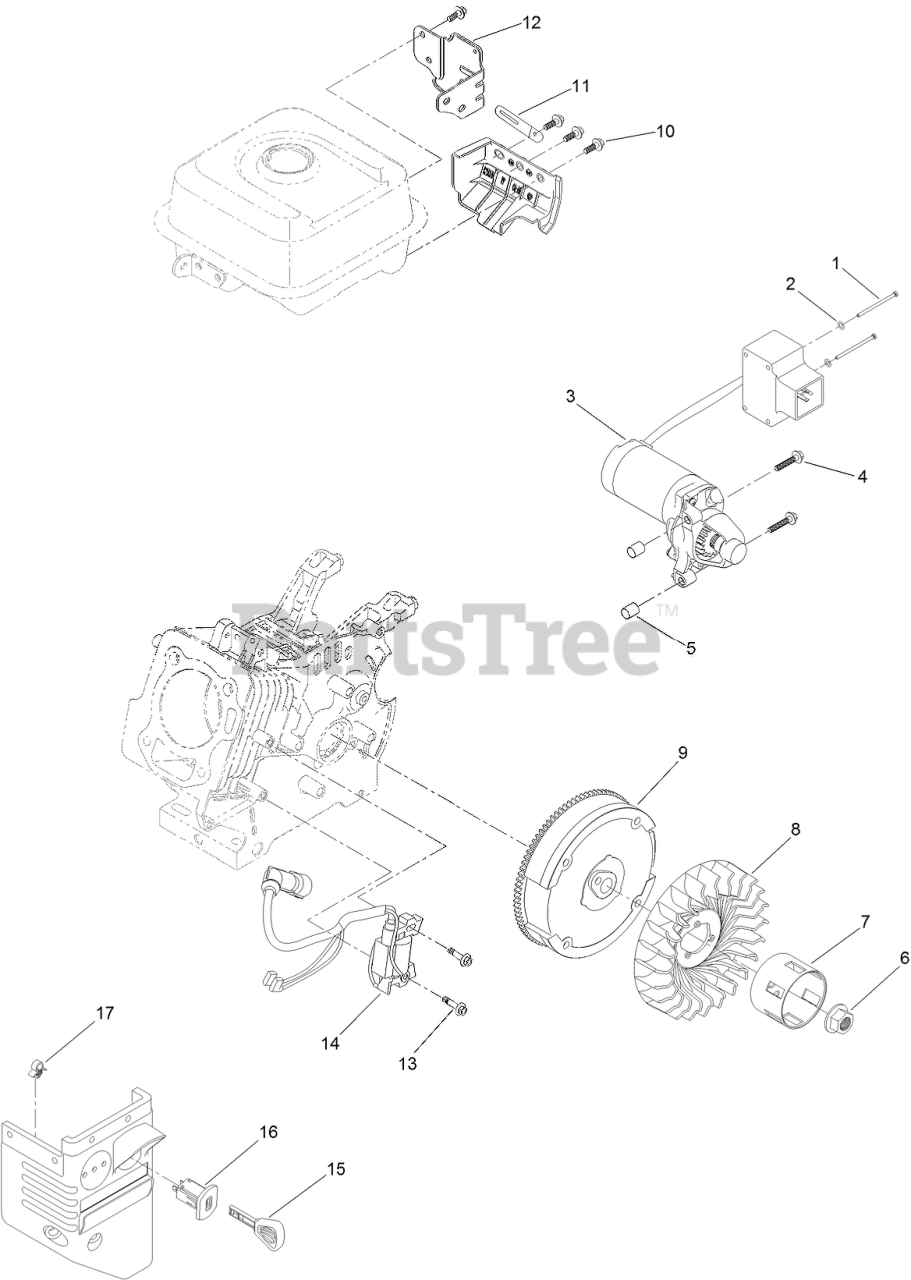

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Toro 121-0306

SCREW-BHP

$1.49

$

In Stock, only 2 left!

0

2

Toro 121-0312

WASHER-PLAIN

$1.49

$

In Stock, only 3 left!

0

3

Toro 133-9998

MOTOR-STARTER
(Superseded to 144-0988)

$409.99

$

Usually ships in 3-6 days

0

4

Toro 133-1546

SCREW-FLANGE

$2.49

$

In Stock, only 1 left!

0

5

Toro 121-0055

PIN-DOWEL

$1.99

$

In Stock, only 1 left!

0

6

Toro 121-0047

NUT-FLANGE

$4.49

$

Usually ships in 3-6 days

0

7

Toro 133-1527

CUP-STARTER

$21.99

$

Usually ships in 3-6 days

0

8

Toro 133-1526

FAN-COOLING

$19.99

$

Usually ships in 3-6 days

0

9

Toro 133-1525

FLYWHEEL AND RING GEAR ASM

$110.99

$

Usually ships in 3-6 days

0

10

Toro 127-9123

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0

12

Toro 133-1554

BRACKET-SWITCHBOX, STARTER

$19.99

$

Usually ships in 3-6 days

0

13

Toro 121-0097

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

14

Toro 136-7769

IGNITION COIL ASM

$90.99

$

Usually ships in 3-6 days

0

15

Toro 117-7728

KEY

$4.99

$

In Stock, only 2 left!

0

16

Toro 121-0283

SWITCH-KEY

$9.49

$

In Stock, only 4 left!

0

17

Toro 121-0326

CLIP

$1.99

$

Usually ships in 3-6 days

0
