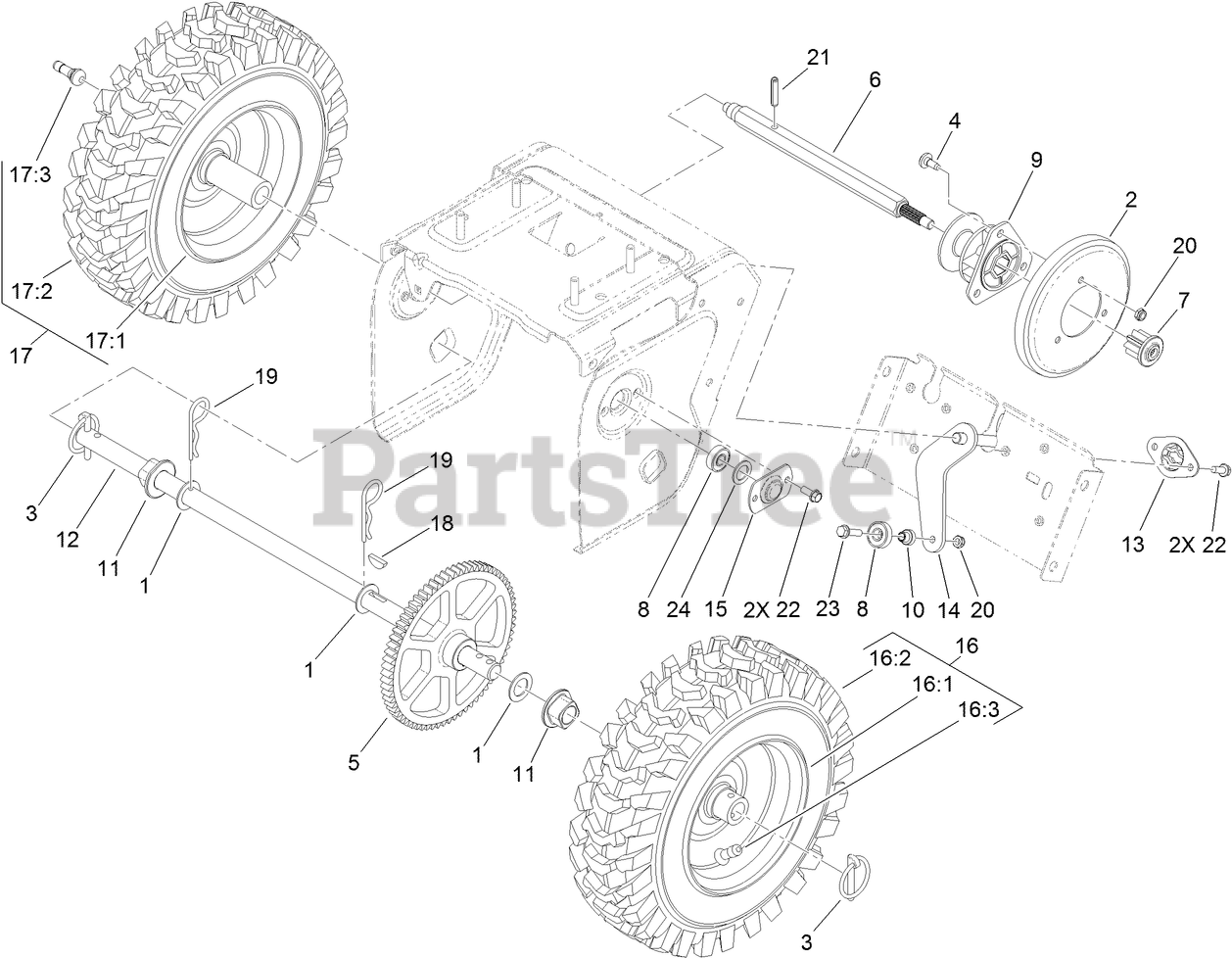

37770 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 314000001 - 314999999) (2014) Drive Assembly Parts Diagram

24" Power Max Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

2

Toro 119-1567

WHEEL-FRICTION

$55.99

$

In Stock, only 2 left!

0

3

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

4

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

5

Toro 119-7613

GEAR-AXLE

$54.99

$

Usually ships in 3-6 days

0

6

Toro 119-7615

SHAFT-HEX

$71.99

$

In Stock, only 2 left!

0

7

Toro 119-7616

GEAR-PINION, 8 TOOTH

$7.99

$

In Stock, only 2 left!

0

8

Toro 121-6835

BEARING-BALL

$9.49

$

In Stock, only 2 left!

0

9

Toro 119-7630

TRUNNION

$14.99

$

In Stock, only 2 left!

0

10

Toro 119-7684

SPACER-PLATE, SHIFT

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-7162

BUSHING-AXLE

$5.99

$

In Stock, only 2 left!

0

12

Toro 120-7180

AXLE

$66.99

$

Usually ships in 3-6 days

0

13

Toro 120-7191

RETAINER-PLATE, SHIFT

$2.49

$

Usually ships in 3-6 days

0

14

Toro 120-7193-03

SHIFT PLATE ASM

$22.99

$

Usually ships in 3-6 days

0

15

Toro 120-9266

See Supercession: 136-7158
(Superseded to 136-7158)

$3.99

$

In Stock, only 2 left!

0

16

Loose Parts Package

Note: Not serviced separately

$

$

Not available

16:1

Toro 121-1212

WHEEL

$98.99

$

Usually ships in 3-6 days

0

16:2

Toro 121-6820

TIRE

$72.99

$

Usually ships in 3-6 days

0

16:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

17

Loose Parts Package

Note: Not serviced separately

$

$

Not available

17:1

Toro 121-1212

WHEEL

$98.99

$

Usually ships in 3-6 days

0

17:2

Toro 121-6820

TIRE

$72.99

$

Usually ships in 3-6 days

0

17:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

18

Toro 3257-7

KEY-WOODRUFF

$10.99

$

In Stock, only 3 left!

0

19

Toro 3290-343

PIN-HAIR

$1.49

$

In Stock, only 3 left!

0

20

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, only 3 left!

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

24

Toro 121-6840

WASHER-RUBBER

$1.49

$

In Stock, Qty 5

0
