38015 (421) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) Traction Assembly Parts Diagram

Snow Thrower

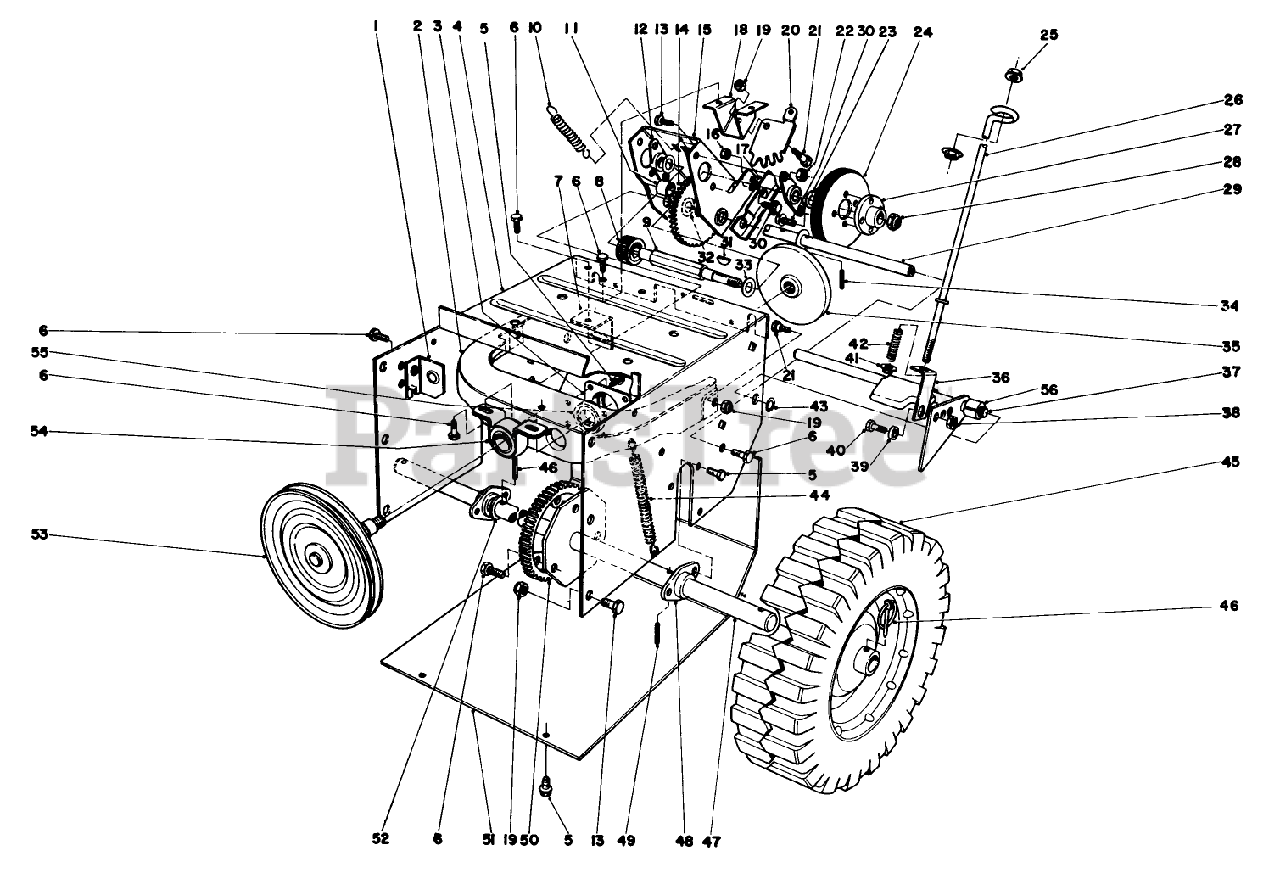

Traction Assembly Parts Diagram

  • Title

1

Toro 37-9060

See Supercession: 66-6790
(Superseded to 66-6790)

$9.49

$

Usually ships in 3-6 days

0

2

Toro 37-6740

FRICTION PLT FRAME

$

$

Not available

3

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 2 left!

0

4

Toro 37-8900

See Supercession: 37-8900-01
(Superseded to 37-8900-01)

$249.99

$

Usually ships in 3-6 days

0

5

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

6

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

7

Toro 37-9070

BRACKET-MOUNT, REAR

$

$

Not available

8

Toro 37-6500

PINION

$

$

Not available

9

Toro 37-6780

SHAFT-WHEEL, FRICTION

$151.99

$

Usually ships in 3-6 days

0

10

Toro 37-8880

SPRING-TRACTION

$19.99

$

In Stock, only 2 left!

0

11

Toro 256-86

5/8ID X 1LG BUSHING

$25.99

$

Usually ships in 3-6 days

0

12

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 37-9160

INTERNAL GEAR AND BUSHING ASM

$284.99

$

Usually ships in 3-6 days

0

15

Toro 39-1230

BRACKET-SLIDING

$

$

Not available

16

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

17

Toro 39-1250

CAM-RECEIVER

$27.99

$

Usually ships in 3-6 days

0

18

Toro 37-8790

MOUNT-LEVER

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 37-8800

GEAR-QUADRANT

$

$

Not available

21

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 4 left!

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

23

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

24

Toro 37-6570

WHEEL-FRICTION

$47.99

$

In Stock, only 2 left!

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 39-3060

ROD-TRACTION, LOWER

$49.99

$

Usually ships in 3-6 days

0

27

Toro 39-1520

HUB-WHEEL, FRICTION

$

$

Not available

28

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 37-6760

SHAFT-PIVOT

$

$

Not available

30

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

31

Toro 3257-24

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

32

Toro 10-9280

WASHER-SPECIAL

$

$

Not available

33

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

34

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

35

Toro 38-0800

PLATE-FRICTION

$111.99

$

In Stock, only 1 left!

0

36

Toro 38-4490

BRACKET-TRACTION

$14.99

$

Usually ships in 3-6 days

0

37

Toro 40-8320

TRACTION ENGAGE

$

$

Not available

38

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

39

Toro 38-4510

DISCONTINUED

$

$

Not available

40

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 7

0

42

Toro 38-4520

SPRING

$19.99

$

Usually ships in 3-6 days

0

43

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

44

Toro 37-8870

SPRING-PLATE, FRICTION

$51.99

$

Usually ships in 3-6 days

0

45

Toro 38-1400

DISCONTINUED

$

$

Not available

46

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

47

Toro 37-6970

AXLE SHAFT WA

$

$

Not available

48

Toro 37-6850

BEARING-AXLE

$34.99

$

In Stock, only 1 left!

0

49

Toro 32121-31

PIN-SPRING

$

$

Not available

50

Toro 37-6520

GEAR-AXLE

$

$

Not available

51

Toro 37-6830

See Supercession: 37-6830-01
(Superseded to 37-6830-01)

$117.99

$

Usually ships in 3-6 days

0

52

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

53

Toro 40-8190

See Supercession: 88-0850
(Superseded to 88-0850)

$153.99

$

In Stock, Qty 5

0

54

Toro 38-4470

DISCONTINUED

$

$

Not available

55

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

56

Toro 40-9680

SPACER

$

$

Not available

Toro 37-7010

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 8-8529

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
