38025 (1800) - Toro Power Curve Snow Thrower (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

Power Curve Snow Thrower

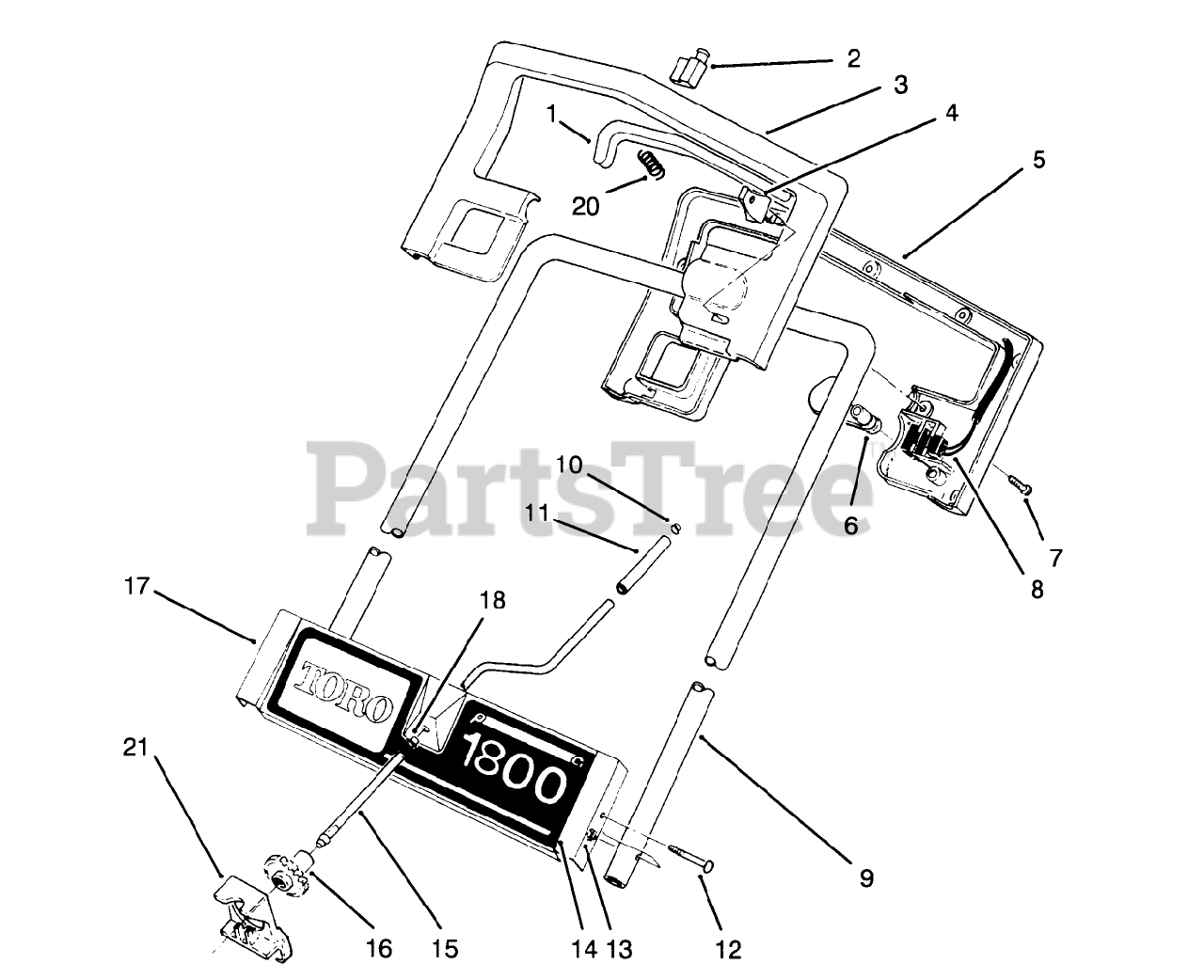

Handle Assembly Parts Diagram

  • Title

1

Toro 73-3510

SWITCH BAR - 1800

$21.99

$

Usually ships in 3-6 days

0

2

Toro 64-4930

See Supercession: 107-3323
(Superseded to 107-3323)

$20.99

$

In Stock, only 1 left!

0

3

Toro 73-5700

HANDLE-UPPER CONTROL

$42.99

$

Usually ships in 3-6 days

0

4

Toro 73-5190

KEY - 1800

$9.49

$

In Stock, only 2 left!

0

5

Toro 73-5710

CONTROL HANDLE, LOWER

$

$

Not available

6

Toro 73-5690

LOCK TAB

$12.99

$

Usually ships in 3-6 days

0

7

Toro 32104-121

See Supercession: 94-4496
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 73-5642

See Supercession: 110-3110
(Superseded to 110-3110)

$15.99

$

In Stock, only 2 left!

0

9

Toro 73-3460

See Supercession: 104-9364-03
(Superseded to 104-9364-03)

$

$

Not available

10

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.99

$

Usually ships in 3-6 days

0

11

Toro 73-0251

SLEEVE, CHUTE CRANK

$

$

Not available

12

Toro 33-8951

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

14

Toro 73-0490

DISCONTINUED

$

$

Not available

15

Toro 73-0240

ROD, CHUTE CRANK

$

$

Not available

16

Toro 73-0230

GEAR-CHUTE CRANK

$10.99

$

In Stock, only 2 left!

0

17

Toro 73-0310

See Supercession: 73-0310-03
(Superseded to 73-0310-03)

$

$

Not available

18

Toro 256-306

NYLINER

$1.49

$

In Stock, Qty 6

0

20

Toro 73-3450

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 5

0

21

Toro 73-3710

1800 PC-GEAR BRAKE

$

$

Not available
