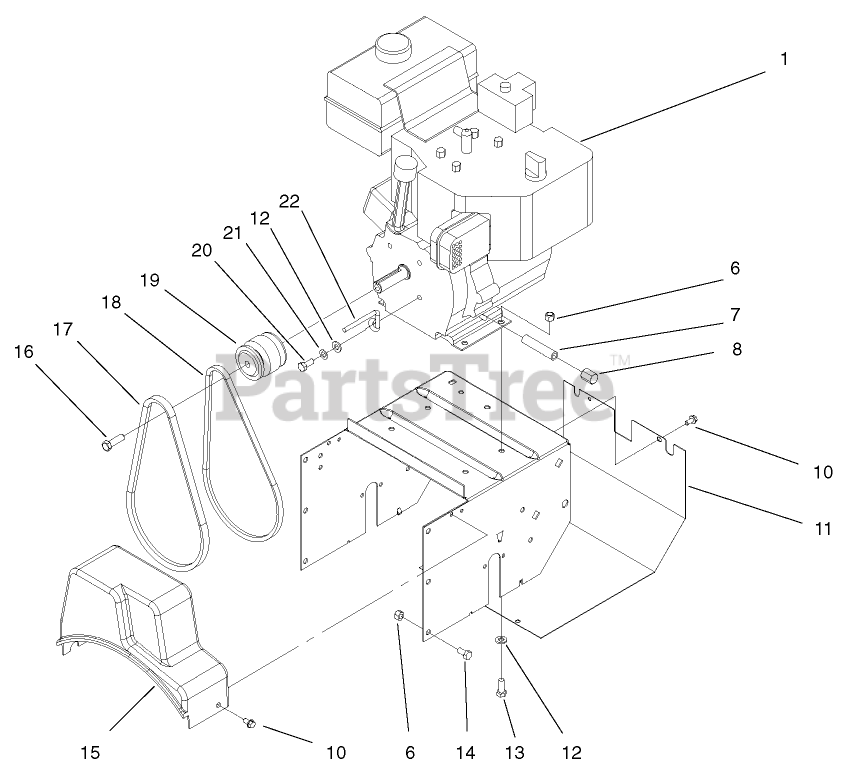

38051 (522) - Toro 22" Snow Thrower (SN: 200000001 - 200999999) (2000) Engine Assembly Parts Diagram

22" Snow Thrower

Engine Assembly Parts Diagram

  • Title

1

Engine-5hp, Tecumseh Hssk50-67401s

Note: Obtain locally.

$

$

Not available

6

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 49-3040

PIPE-NIPPLE

$

$

Not available

8

Toro 281-7

CAP-PIPE

$4.49

$

Usually ships in 3-6 days

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 37-6830-01

COVER-TRACTION, LOWER

$117.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 37-6900

COVER-BELT

$80.99

$

Usually ships in 3-6 days

0

16

Toro 43-7290

SCREW-SPECIAL

$9.49

$

Usually ships in 3-6 days

0

17

Toro 37-9080

V-BELT

$25.99

$

In Stock, only 1 left!

0

18

Toro 37-9090

V BELT-3L, TRACTION

$18.99

$

In Stock, only 2 left!

0

19

Toro 43-7370

PULLEY-ENGINE

$345.99

$

Usually ships in 3-6 days

0

20

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

22

Toro 37-8990

RETAINER-BELT

$

$

Not available
