38072 (724) - Toro 24" Snow Thrower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

24" Snow Thrower

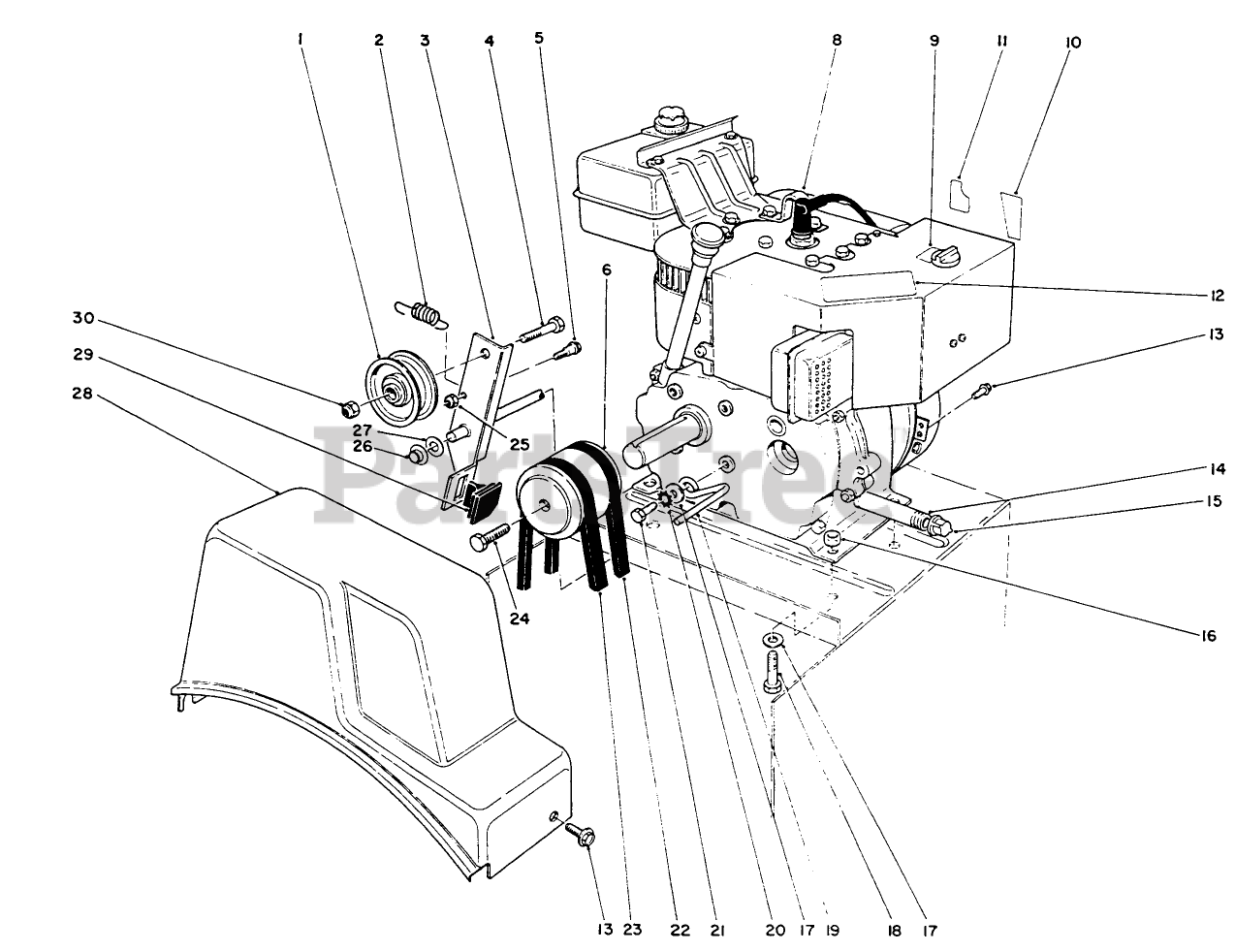

Engine Assembly Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

2

Toro 53-7570

SPRING

$18.99

$

In Stock, only 2 left!

0

3

Toro 14-7959

DISCONTINUED

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 8

0

5

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

6

Toro 74-1370

PULLEY-ENGINE

$

$

Not available

8

Engine

$

$

Not available

9

Toro 63-2420

DISCONTINUED

$

$

Not available

Toro 63-2430

DECAL - CHOKE, INT L

Note: Not illustrated

$

$

Not available

10

Toro 63-3190

DECAL-THROTTLE

$

$

Not available

11

Toro 62-5760

See Supercession: 94-2572
(Superseded to 94-2572)

$

$

Not available

12

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$97.99

$

Usually ships in 3-6 days

0

Toro 63-2310

See Supercession: 94-2576
(Superseded to 94-2576)

Note: Not illustrated

$

$

Not available

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 289-9

NIPPLE-PIPE

$

$

Not available

15

Toro 288-2

CAP-PIPE

$20.99

$

In Stock, only 1 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

19

Toro 37-8990

RETAINER-BELT

$

$

Not available

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

21

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

22

Toro 37-9090

V BELT-3L, TRACTION

$18.99

$

In Stock, only 2 left!

0

23

Toro 26-9672

V-BELT

$33.99

$

In Stock, only 2 left!

0

24

Toro 43-7290

SCREW-SPECIAL

$9.49

$

Usually ships in 3-6 days

0

25

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, only 2 left!

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 37-6900

COVER-BELT

$80.99

$

Usually ships in 3-6 days

0

29

Toro 66-8060

PAD-BRAKE

$19.99

$

In Stock, only 2 left!

0

30

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 6

0
