38175 - Toro CCR Powerlite Snow Thrower (SN: 059000001 - 059999999) (1995) Starter Motor Assembly Switch Housing Parts Diagram

CCR Powerlite Snow Thrower

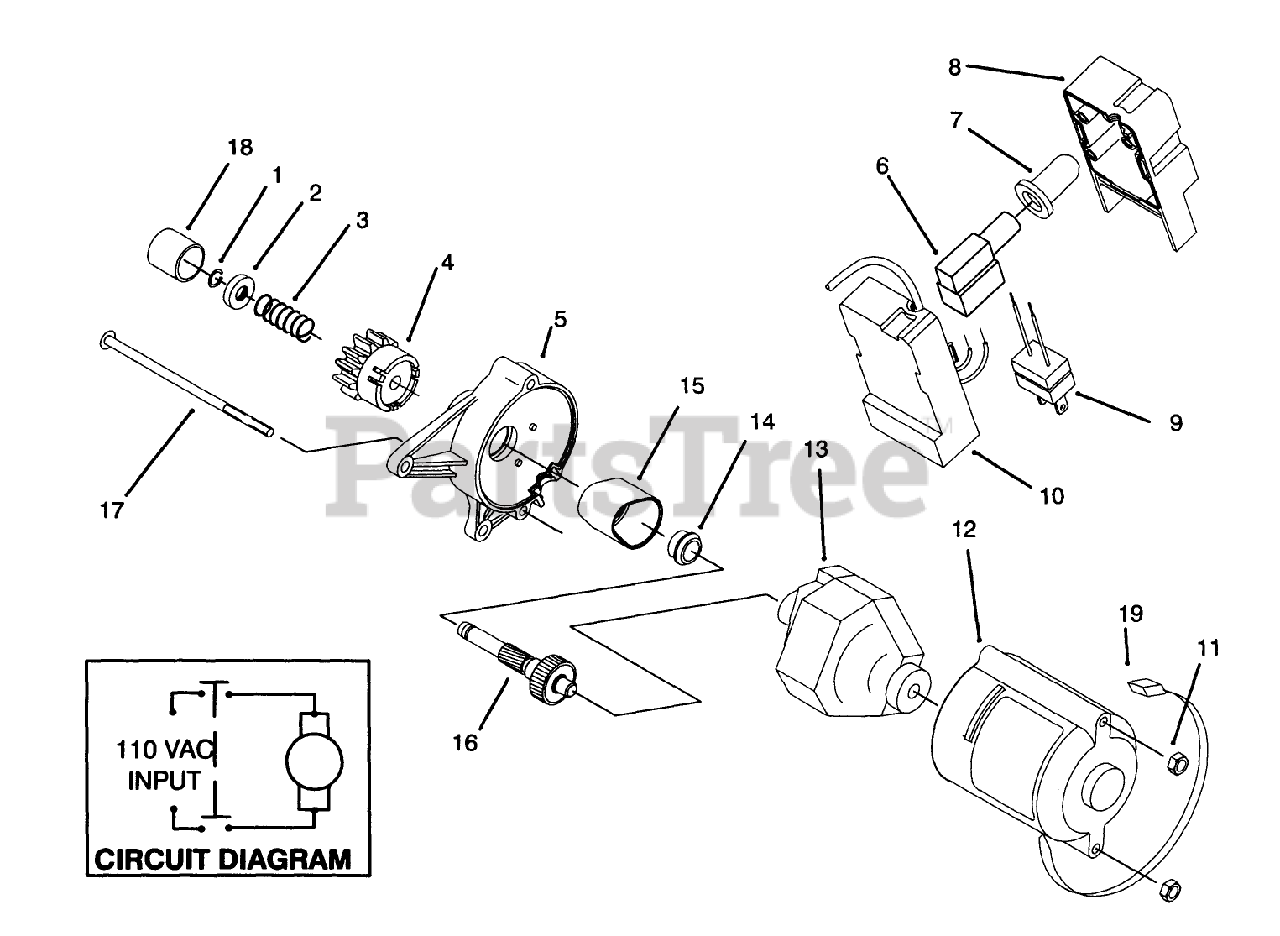

Starter Motor Assembly Switch Housing Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 15

0

2

Toro 61-4670

PINION STOP

$15.99

$

In Stock, only 3 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 84-5240

PINION ASM

$

$

Not available

5

Toro 70-7810

See Supercession: 100-3443
(Superseded to 100-3443)

$31.99

$

In Stock, only 2 left!

0

6

Toro 36-8340

SWITCH-STARTER

$32.99

$

In Stock, only 2 left!

0

7

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

8

Toro 80-3740

See Supercession: 100-3442
(Superseded to 100-3442)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 36-8370

See Supercession: 94-9933
(Superseded to 94-9933)

$

$

Not available

10

Toro 80-3730

See Supercession: 98-2253
(Superseded to 98-2253)

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 70-7820

DISCONTINUED

$

$

Not available

13

Toro 70-7802

DISCONTINUED

$

$

Not available

14

Toro 70-7900

BUSHING

$3.99

$

Usually ships in 3-6 days

0

15

Toro 70-7850

COVER-GEAR

$12.99

$

Usually ships in 3-6 days

0

16

Toro 92-6003

See Supercession: 105-8831
(Superseded to 105-8831)

$133.99

$

Usually ships in 3-6 days

0

17

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

18

Toro 70-7890

CAP-PINION

$

$

Not available

19

Toro 250-7

TIE-CABLE

$

$

Not available

Toro 77-0402

DISCONTINUED
(Superseded to 105-2953)

Note: Not illustrated

$

$

Not available

Toro 28-9170

See Supercession: 106-4741
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
