38176 - Toro CCR Powerlite Snow Thrower (SN: 059000001 - 059999999) (1995) Chute Assembly Parts Diagram

CCR Powerlite Snow Thrower

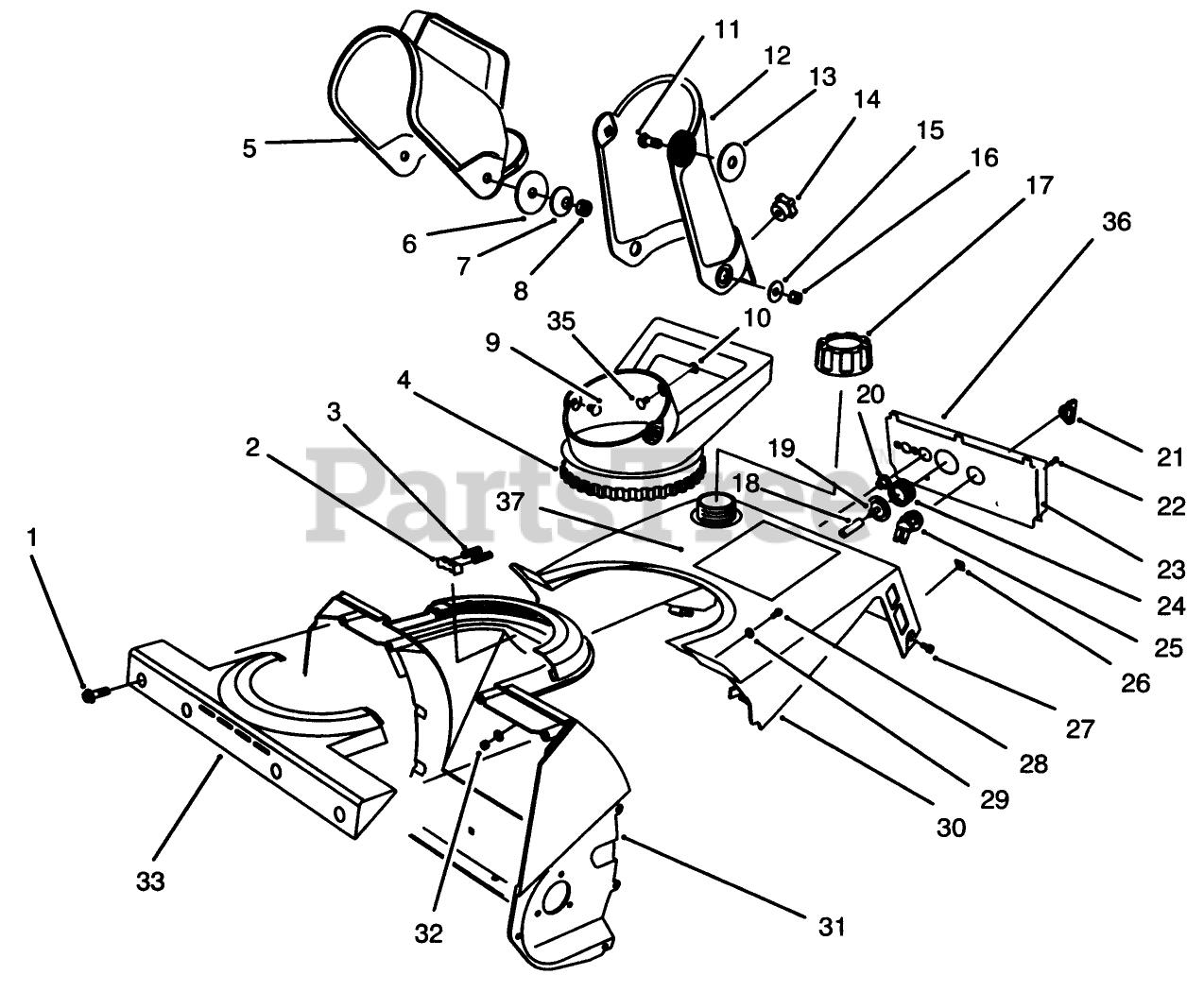

Chute Assembly Parts Diagram

  • Title

1

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 8

0

2

Toro 75-9160

DETENT-CHUTE

$7.49

$

In Stock, only 4 left!

0

3

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 9

0

4

Toro 75-8670

HANDLE-CHUTE

$60.99

$

Usually ships in 3-6 days

0

5

Toro 75-8770

DEFLECTOR-CHUTE

$41.99

$

Usually ships in 3-6 days

0

6

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

7

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, only 4 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 5

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 75-8762

See Supercession: 115-5661
(Superseded to 115-5661)

$

$

Not available

13

Toro 80-0640

See Supercession: 95-1905
(Superseded to 95-1905)

$2.99

$

In Stock, Qty 6

0

14

Toro 233-67

KNOB-CHUTE

$10.99

$

In Stock, only 2 left!

0

15

Toro 3256-81

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

16

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 55-3573

See Supercession: 104-4133
(Superseded to 104-4133)

$18.99

$

In Stock, only 2 left!

0

18

Toro 44-3173

HOSE-PRIMER

$5.99

$

In Stock, Qty 6

0

19

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

20

Toro 23-7470

GUIDE-ROPE, STARTER

$

$

Not available

21

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

22

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$4.49

$

In Stock, Qty 17

0

23

Toro 75-9031

See Supercession: 75-9031-03
(Superseded to 75-9031-03)

$

$

Not available

Toro 75-9030

See Supercession: 75-9030-03
(Superseded to 75-9030-03)

$

$

Not available

24

Toro 66-7460

BULB-PRIMER

$7.49

$

In Stock, Qty 20+

0

25

Toro 40-5940

SWITCH

$17.99

$

In Stock, Qty 16

0

26

Toro 49-1490

NUT

$4.99

$

In Stock, only 2 left!

0

27

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

Usually ships in 3-6 days

0

28

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 13

0

29

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 75-8800

See Supercession: 105-2994
(Superseded to 105-2994)

$217.99

$

In Stock, only 1 left!

0

31

Toro 75-8660

HOUSING

$234.99

$

Usually ships in 3-6 days

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 75-8650

RETAINER-CHUTE

$68.99

$

Usually ships in 3-6 days

0

35

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

36

Toro 94-2565

DECAL - CONTROL PANEL

$

$

Not available

Toro 94-2564

DISCONTINUED

Note: Not illustrated

$

$

Not available

37

Toro 80-0680

DISCONTINUED

$

$

Not available

Toro 80-0690

DECAL - POWERLITE EL.

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0
