38185 (CCR 2000) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) Starter Motor Switch Housing Assembly Parts Diagram

Snow Thrower

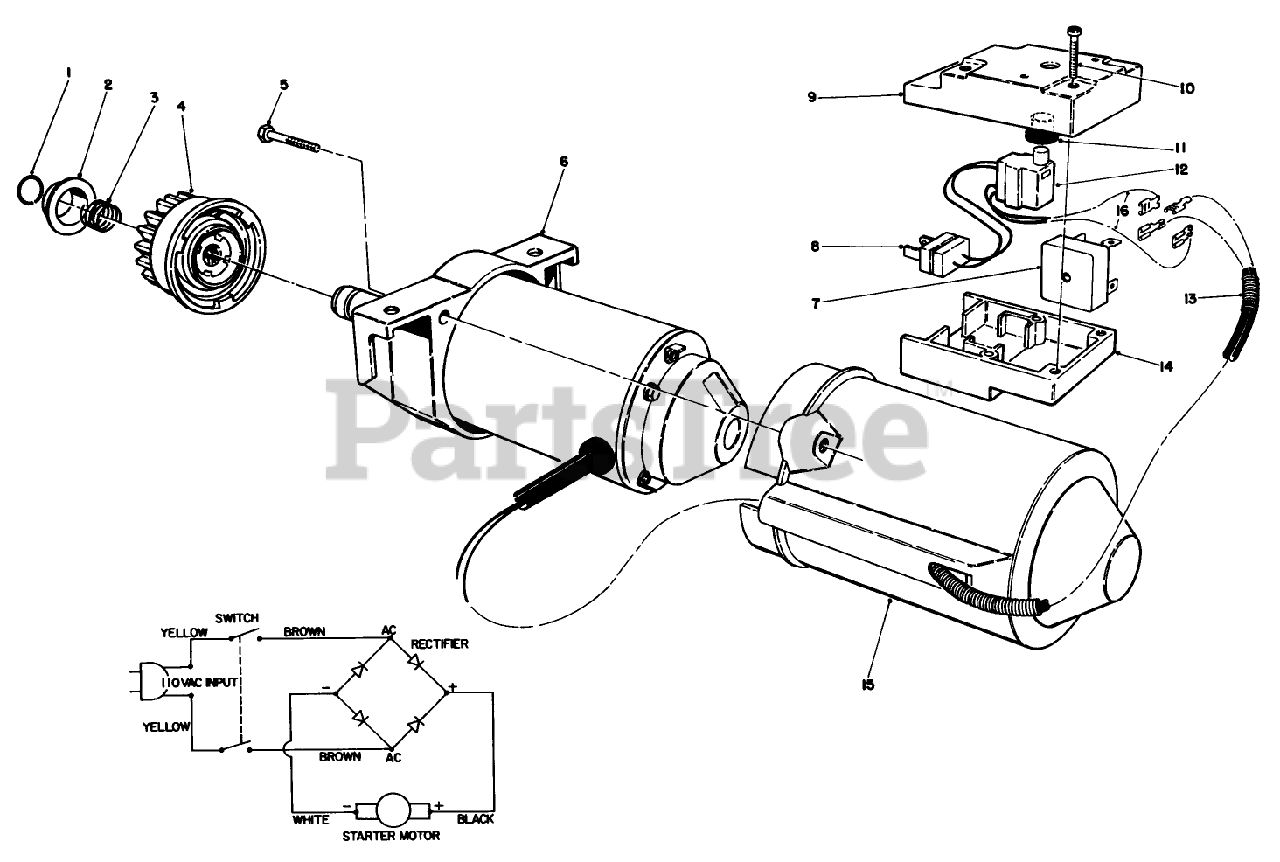

Starter Motor Switch Housing Assembly Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 15

0

2

Toro 61-4670

PINION STOP

$15.99

$

In Stock, only 3 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 61-4700

ORDER BRIGGS 801293

$

$

Not available

5

Toro 61-4640

DISCONTINUED

$

$

Not available

6

Toro 61-4600

DISCONTINUED
(Superseded to 105-2955)

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$29.99

$

Usually ships in 3-6 days

0

8

Toro 36-8370

See Supercession: 94-9933
(Superseded to 94-9933)

$

$

Not available

9

Toro 61-4840

See Supercession: 66-1750
(Superseded to 66-1750)

$36.99

$

Usually ships in 3-6 days

0

10

Toro 61-4830

DISCONTINUED

$

$

Not available

11

Toro 61-4810

BOOT-SWITCH

$

$

Not available

12

Toro 61-4820

SWITCH-STARTER

$19.99

$

In Stock, only 2 left!

0

13

Toro 61-4860

DISCONTINUED

$

$

Not available

14

Toro 61-4850

DISCONTINUED
(Superseded to 66-1760)

$

$

Not available

15

Toro 61-4620

STARTER MOTOR COVER

$

$

Not available

16

Toro 36-8360

DISCONTINUED

$

$

Not available

Toro 28-9170

See Supercession: 106-4741
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
