38190 (CCR 1000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) Starter Motor and Switch Assembly (model No. 38195 Only) Parts Diagram

Snow Thrower

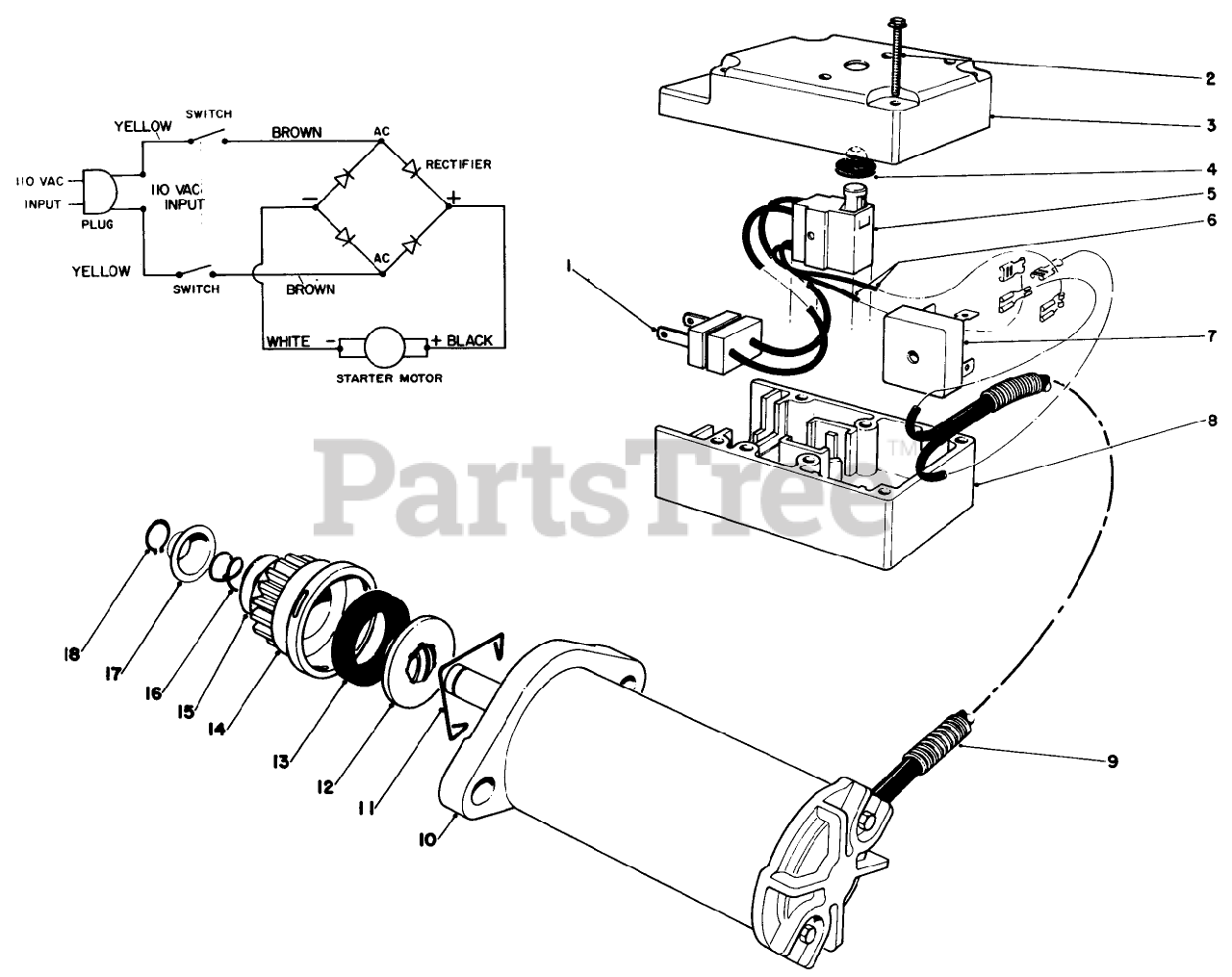

Starter Motor and Switch Assembly (model No. 38195 Only) Parts Diagram

  • Title

1

Toro 36-8370

See Supercession: 94-9933
(Superseded to 94-9933)

$

$

Not available

2

Toro 61-4830

DISCONTINUED

$

$

Not available

3

Toro 66-1760

DISCONTINUED

$

$

Not available

4

Toro 61-4810

BOOT-SWITCH

$

$

Not available

5

Toro 61-4820

SWITCH-STARTER

$19.99

$

In Stock, only 2 left!

0

6

Toro 36-8360

DISCONTINUED

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$29.99

$

Usually ships in 3-6 days

0

8

Toro 66-1750

SWITCH BOX BASE

$36.99

$

Usually ships in 3-6 days

0

9

Toro 33-5130

DISCONTINUED

$

$

Not available

10

Toro 28-9140

SEE SB SNOW #48

$

$

Not available

11

Toro 5-6530

RETAINING CLIP

$9.49

$

In Stock, Qty 5

0

12

Nut-Pinion Gear

Note: Not serviced separately

$

$

Not available

13

Toro 25-3400

RUBBER RING

$

$

Not available

14

Gear-Pinion

Note: Not serviced separately

$

$

Not available

15

Toro 33-5570

WASHER

$

$

Not available

16

Toro 33-3230

SPRING-COMPRESSION

$7.99

$

In Stock, only 1 left!

0

17

Toro 33-3210

PINION STOP

$

$

Not available

18

Toro 32151-49

RING-RETAINING, EXTERNAL

$4.99

$

In Stock, only 2 left!

0
