38274 - Toro 18" CCR Powerlite Snow Thrower (SN: 406320000 - 999999999) Engine Assembly No. 2 Parts Diagram

18" CCR Powerlite Snow Thrower

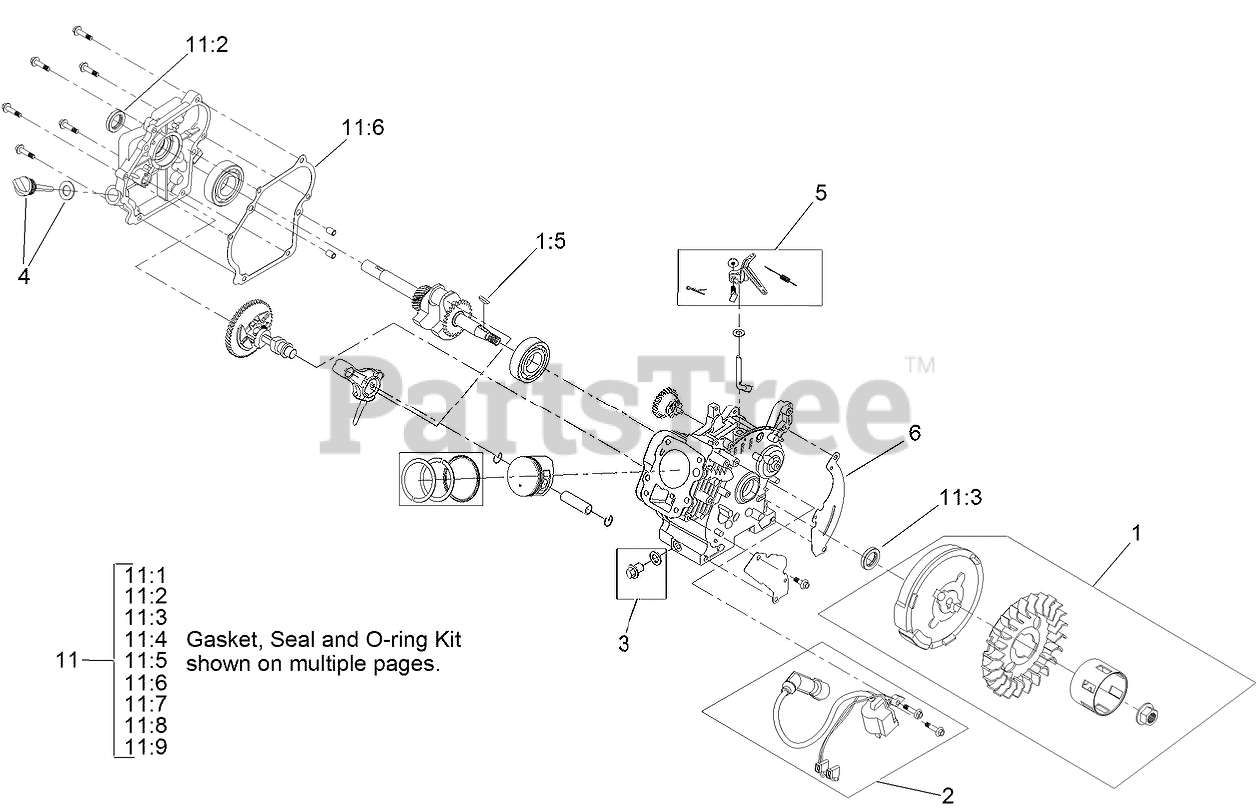

Engine Assembly No. 2 Parts Diagram

  • Title

1

Toro 119-1962

FLYWHEEL AND FAN KIT

$111.99

$

Usually ships in 3-6 days

0

1:5

Toro 121-0206

KEY-WOODRUFF

$

$

Currently unavailable

2

Toro 136-7772

IGNITION KIT

$93.99

$

In Stock, only 2 left!

0

3

Toro 119-1923

DRAIN PLUG KIT

$8.99

$

In Stock, only 2 left!

0

4

Toro 119-1922

DIPSTICK AND O-RING KIT

$12.99

$

Usually ships in 3-6 days

0

5

Toro 121-0489

GOVERNOR KIT

$30.99

$

In Stock, only 3 left!

0

6

Toro 119-1927

BLOWER SHROUD KIT

$63.99

$

Usually ships in 3-6 days

0

11

Toro 127-9073

GASKET, SEAL AND O-RING KIT

$78.99

$

Usually ships in 3-6 days

0

11:1

Toro 121-0168

GASKET-EXHAUST

$1.99

$

Usually ships in 3-6 days

0

11:2

Toro 121-0207

SEAL-OIL

$

$

Currently unavailable

11:3

Toro 121-0210

SEAL-OIL

$

$

Currently unavailable

11:4

Toro 121-0110

GASKET-COVER, VALVE

$13.99

$

In Stock, only 2 left!

0

11:5

Toro 127-9039

GASKET-HEAD, CYLINDER

$

$

Currently unavailable

11:6

Toro 121-0106

GASKET-COVER, CRANKCASE

$8.49

$

Usually ships in 3-6 days

0

11:7

Toro 120-4486

GASKET-INSULATOR

$

$

Currently unavailable

11:8

Toro 121-0093

INSULATOR-CARBURETOR

$

$

Currently unavailable

11:9

Toro 127-9052

GASKET-CARBURETOR

$

$

Currently unavailable
