38371 (1500) - Toro 15" Power Curve Snow Thrower (SN: 320000001 - 320999999) (2020) Drive Assembly Parts Diagram

15" Power Curve Snow Thrower

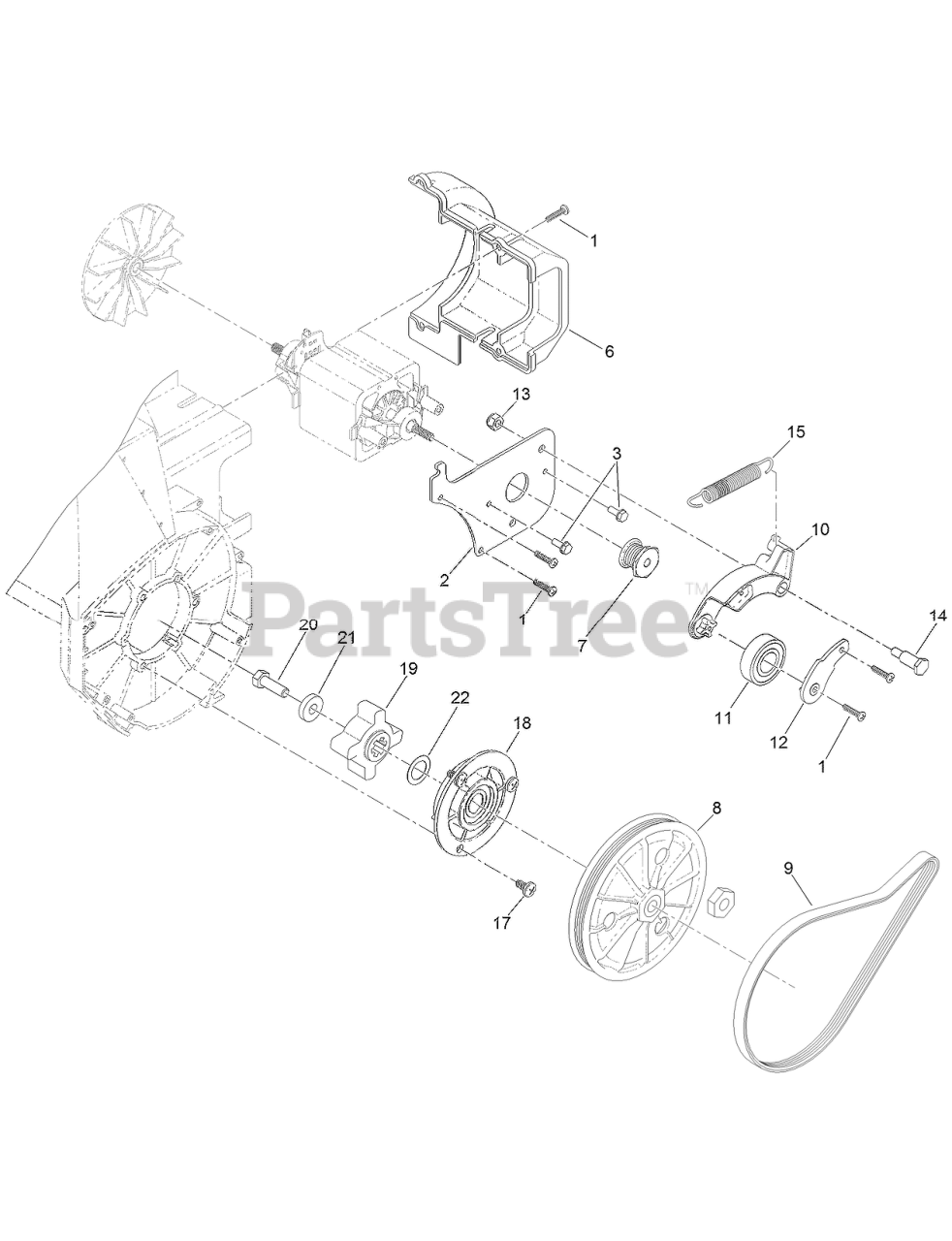

Drive Assembly Parts Diagram

  • Title

1

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 117-2843

PLATE-MOTOR

$

$

Currently unavailable

3

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 125-0497

COVER-MOTOR

$9.49

$

Usually ships in 3-6 days

0

7

Toro 119-9810

PULLEY-DRIVE

$10.99

$

Usually ships in 3-6 days

0

8

Toro 117-8763

PULLEY ASM

$37.99

$

In Stock, only 2 left!

0

9

Toro 119-9811

BELT-DRIVE

$26.99

$

Usually ships in 3-6 days

0

10

Toro 119-9813

ARM-IDLER

$3.99

$

Usually ships in 3-6 days

0

11

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

12

Toro 119-9814

RETAINER-IDLER

$2.49

$

Usually ships in 3-6 days

0

13

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

14

Toro 119-9812

BOLT-SHOULDER

$1.99

$

Usually ships in 3-6 days

0

15

Toro 117-2804

SPRING-IDLER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 105-6968

SCREW-SEAT, SWITCH

$4.49

$

Usually ships in 3-6 days

0

18

Toro 117-2887

PILLOW BLOCK ASM

$22.99

$

Usually ships in 3-6 days

0

19

Toro 117-8762

COUPLER-PULLEY

$5.99

$

Usually ships in 3-6 days

0

20

Toro 117-2888

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

21

Toro 27-9560

SPACER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 7-4650

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
