38405 (CCR 1000) - Toro Snow Thrower (SN: 210000001 - 210999999) (2001) Motor Switch Housing Assembly (120 Volt) Parts Diagram

Snow Thrower

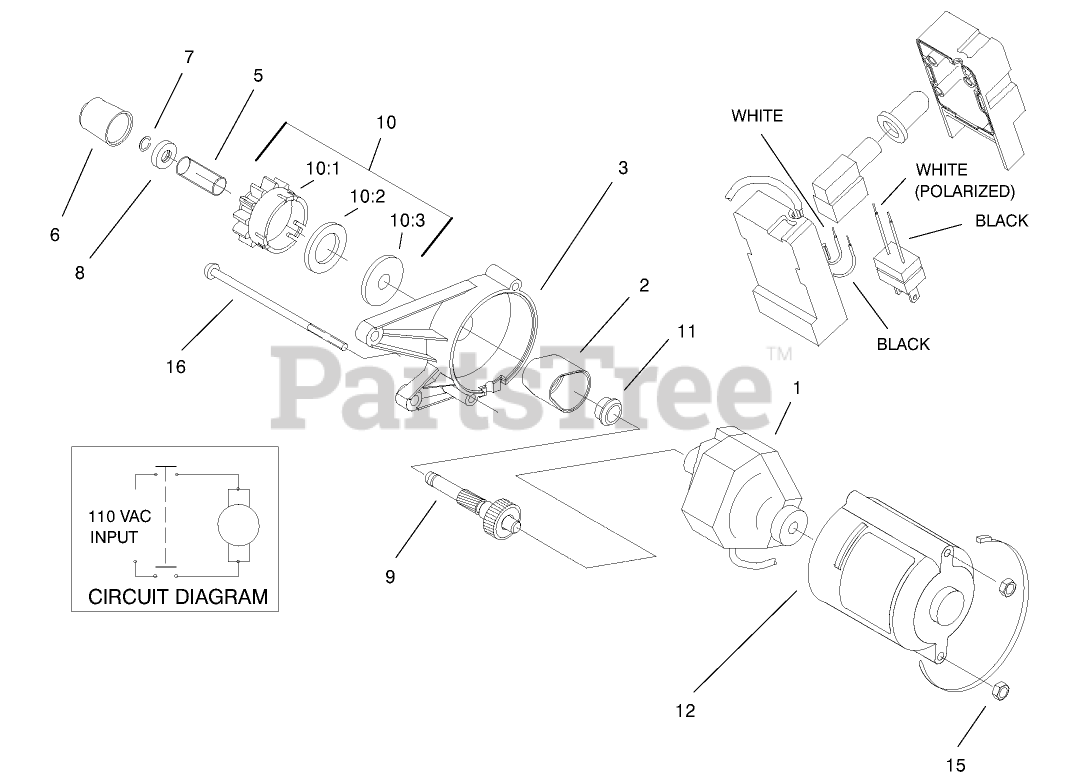

Motor Switch Housing Assembly (120 Volt) Parts Diagram

  • Title

1

Toro 70-7802

DISCONTINUED

$

$

Not available

2

Toro 70-7850

COVER-GEAR

$12.99

$

Usually ships in 3-6 days

0

3

Toro 100-3443

HOUSING-UPPER, STARTER

$31.99

$

In Stock, only 2 left!

0

5

Toro 61-4690

SPRING

$

$

Not available

6

Toro 70-7890

CAP-PINION

$

$

Not available

7

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 15

0

8

Toro 100-2902

STOP-PINION

$8.49

$

In Stock, Qty 5

0

9

Toro 95-1797

See Supercession: 105-8831
(Superseded to 105-8831)

$133.99

$

Usually ships in 3-6 days

0

10

Toro 84-5240

PINION ASM

$

$

Not available

10:1

Toro 70-7790

NUT

$

$

Not available

10:2

Toro 84-5230

PINION

$24.99

$

In Stock, only 2 left!

0

10:3

Toro 84-5440

RING-RUBBER

$12.99

$

In Stock, only 3 left!

0

11

Toro 70-7900

BUSHING

$3.99

$

Usually ships in 3-6 days

0

12

Toro 100-3444

HOUSING-LOWER, STARTER

$

$

Not available

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0
