38472 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 315000001 - 315999999) (2015) Engine Assembly No. 2 Parts Diagram

18" Power Clear Snow Thrower

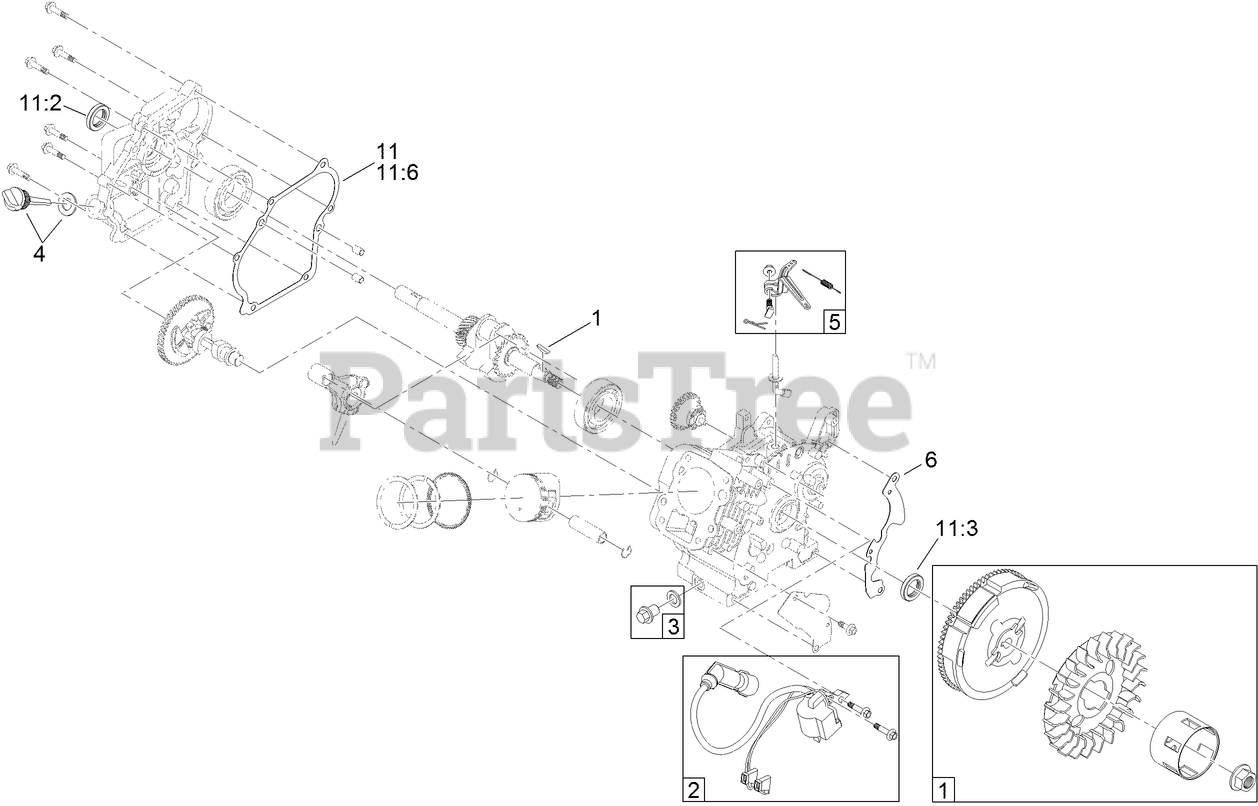

Engine Assembly No. 2 Parts Diagram

  • Title

1

Toro 119-1962

FLYWHEEL AND FAN KIT

$111.99

$

Usually ships in 3-6 days

0

2

Toro 119-1960

See Supercession: 136-7772
(Superseded to 136-7772)

$93.99

$

In Stock, only 2 left!

0

3

Toro 119-1923

DRAIN PLUG KIT

$8.99

$

In Stock, only 2 left!

0

4

Toro 119-1922

DIPSTICK AND O-RING KIT

$12.99

$

Usually ships in 3-6 days

0

5

Toro 127-9074

GOVERNOR KIT

$29.99

$

Usually ships in 3-6 days

0

6

Toro 119-1927

BLOWER SHROUD KIT

$63.99

$

Usually ships in 3-6 days

0

11

Toro 127-9073

GASKET, SEAL AND O-RING KIT

$78.99

$

Usually ships in 3-6 days

0

11:1

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

11:2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

11:3

Loose Parts Package

Note: Not serviced separately

$

$

Not available

11:4

Toro 121-0110

GASKET-COVER, VALVE

$13.99

$

In Stock, only 2 left!

0

11:5

GASKET-HEAD, CYLINDER

Note: Not serviced separately

$

$

Not available

11:6

GASKET-COVER, CRANKCASE

Note: Not serviced separately

$

$

Not available

11:7

GASKET-INSULATOR

Note: Not serviced separately

$

$

Not available

11:8

INSULATOR-CARBURETOR

Note: Not serviced separately

$

$

Not available

11:9

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available
