38475 (518 ZE) - Toro 18" Power Clear Snow Thrower (SN: 415000000 - 416258343) Belt and Drive Assembly Parts Diagram

18" Power Clear Snow Thrower

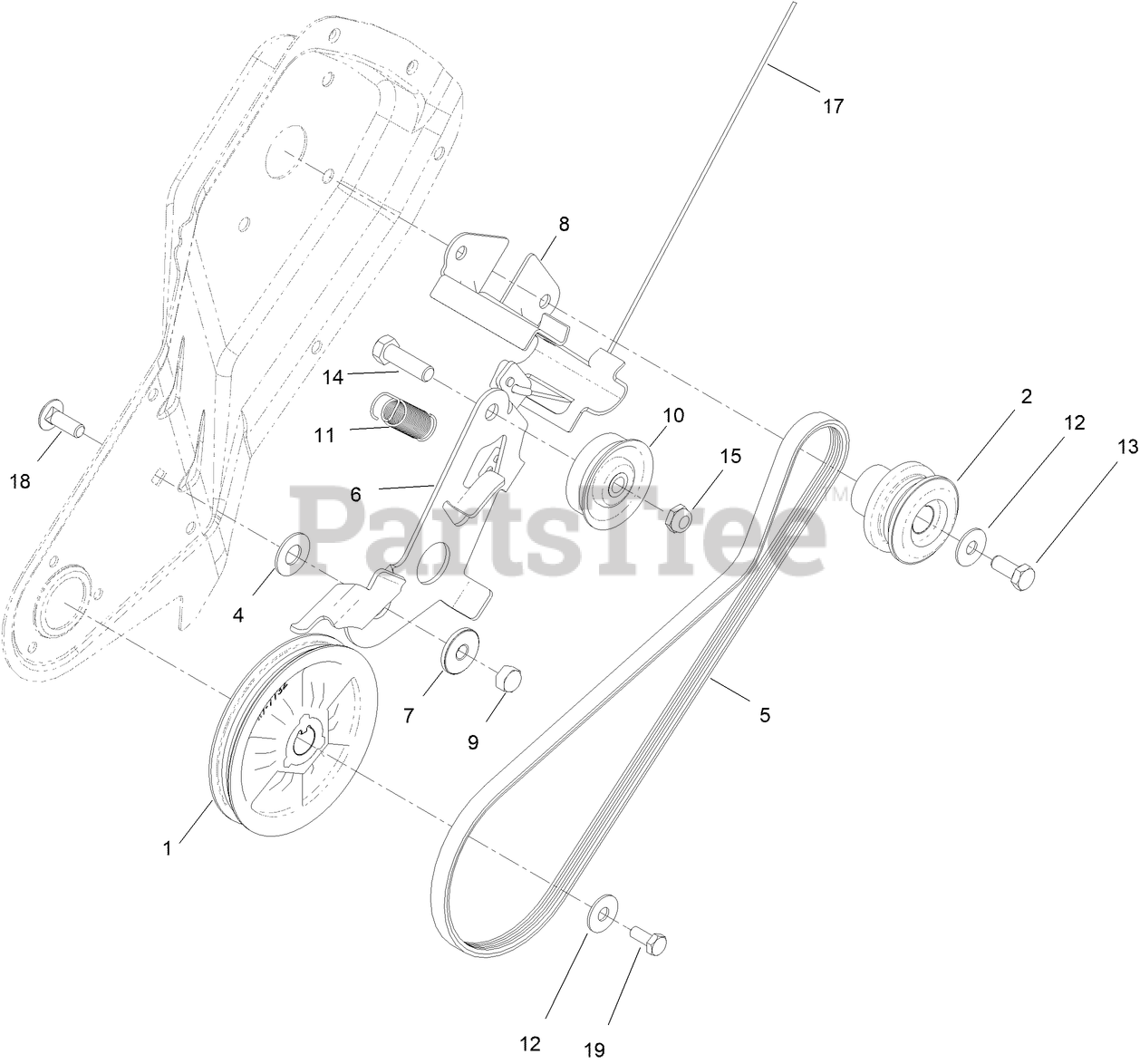

Belt and Drive Assembly Parts Diagram

  • Title

1

Toro 117-7732

ROTOR PULLEY ASM

$37.99

$

In Stock, only 2 left!

0

2

Toro 117-7734

PULLEY-ENGINE

$62.99

$

Usually ships in 3-6 days

0

4

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

5

Toro 117-7733

BELT-V, RIBBED

$18.99

$

In Stock, only 2 left!

0

6

Toro 136-7123

ARM-IDLER

$11.99

$

Usually ships in 3-6 days

0

7

Toro 117-7711

BUSHING-IDLER

$2.99

$

In Stock, only 1 left!

0

8

Toro 136-7142

GUIDE-BELT

$8.49

$

Usually ships in 3-6 days

0

9

Toro 119-4038

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

10

Toro 117-9105

PULLEY-IDLER

$41.99

$

Usually ships in 3-6 days

0

11

Toro 117-7715

SPRING-BRAKE

$5.99

$

In Stock, Qty 6

0

12

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

13

Toro 137-3069

SCREW-HH LOCK

$1.49

$

Usually ships in 3-6 days

0

14

Toro 136-8684

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, only 3 left!

0

17

Toro 117-7721

CABLE-CLUTCH

$29.99

$

Usually ships in 3-6 days

0

18

Toro 137-3058

BOLT-CARR

$8.99

$

Usually ships in 3-6 days

0

19

Toro 137-3014

SCREW-HH LOCK

$0.99

$

Usually ships in 3-6 days

0
