38475 (518 ZE) - Toro 18" Power Clear Snow Thrower (SN: 415000000 - 416258343) Frame Assembly Parts Diagram

18" Power Clear Snow Thrower

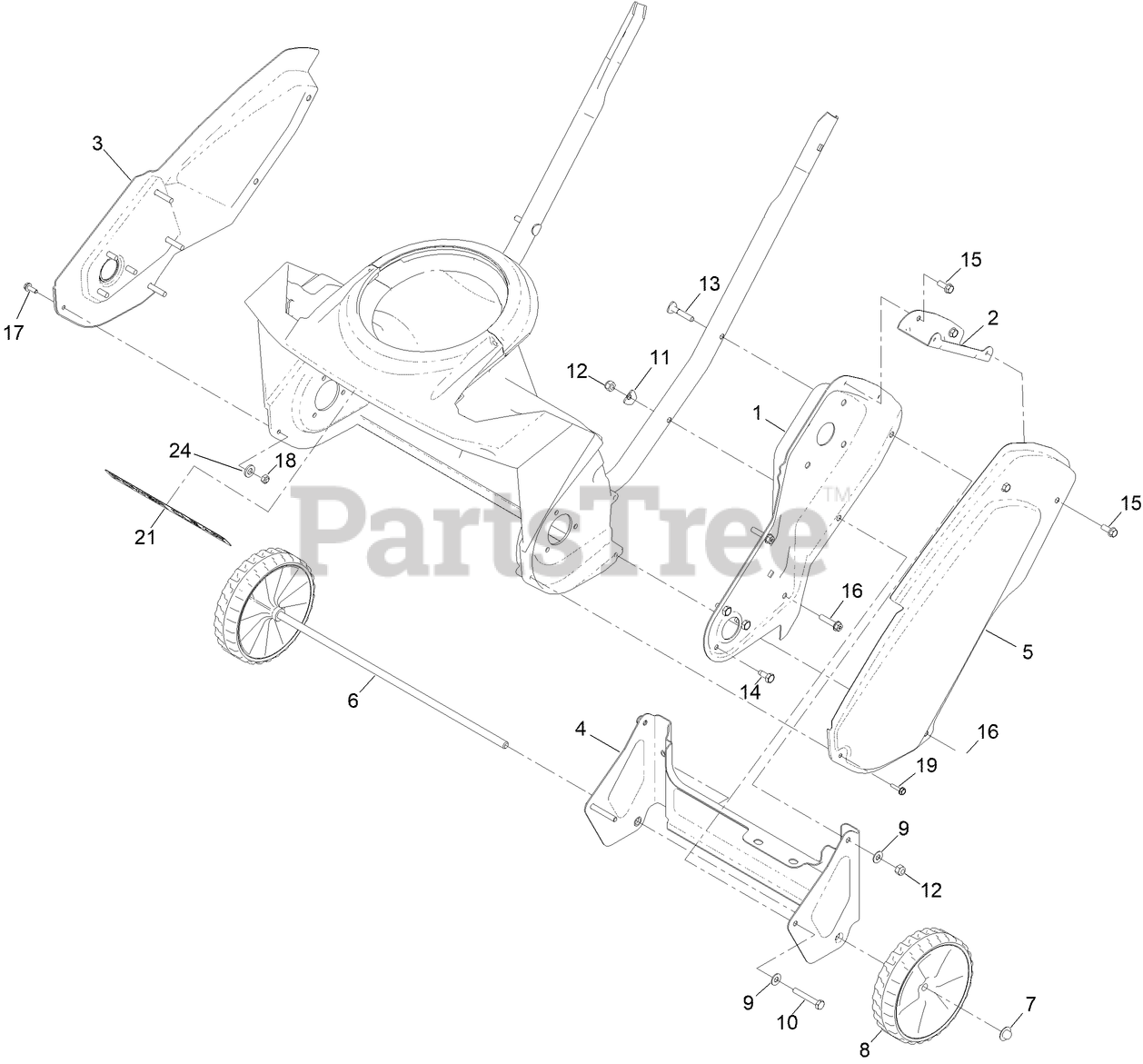

Frame Assembly Parts Diagram

  • Title

1

Toro 117-2349-03

SIDEPLATE-LH

$30.99

$

Usually ships in 3-6 days

0

2

Toro 117-2334-03

BRACKET-COVER, BELT

$12.99

$

Usually ships in 3-6 days

0

3

Toro 117-7704-03

SIDEPLATE-RH

$30.99

$

Usually ships in 3-6 days

0

4

Toro 117-7702-03

BRACKET-WHEEL

$27.99

$

Usually ships in 3-6 days

0

5

Toro 117-7703-03

COVER-BELT

$28.99

$

In Stock, only 2 left!

0

6

Toro 136-7139

AXLE

$11.99

$

In Stock, only 2 left!

0

7

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, only 2 left!

0

8

Toro 145-4080

WHEEL ASM, 3/8" AXLE, 5.875 IN

$24.99

$

In Stock, only 2 left!

0

9

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 137-3048

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3-7501

WASHER

$6.99

$

In Stock, Qty 8

0

12

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

13

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 7

0

14

Toro 114-9291

SCREW-HH, TAPTITE

$1.99

$

Usually ships in 3-6 days

0

15

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

16

Toro 137-3101

SCREW-PLASTIC,HWH

$1.49

$

In Stock, Qty 8

0

17

Toro 137-3030

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 137-3085

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

19

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

Usually ships in 3-6 days

0

21

Toro 145-4088

DECAL-FRONT

$2.99

$

Usually ships in 3-6 days

0

24

Toro 137-3073

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0
