38585 - Toro Power Clear Snow Thrower (SN: 280000001 - 280999999) (2008) Engine, Frame and Wheel Assembly Parts Diagram

Power Clear Snow Thrower

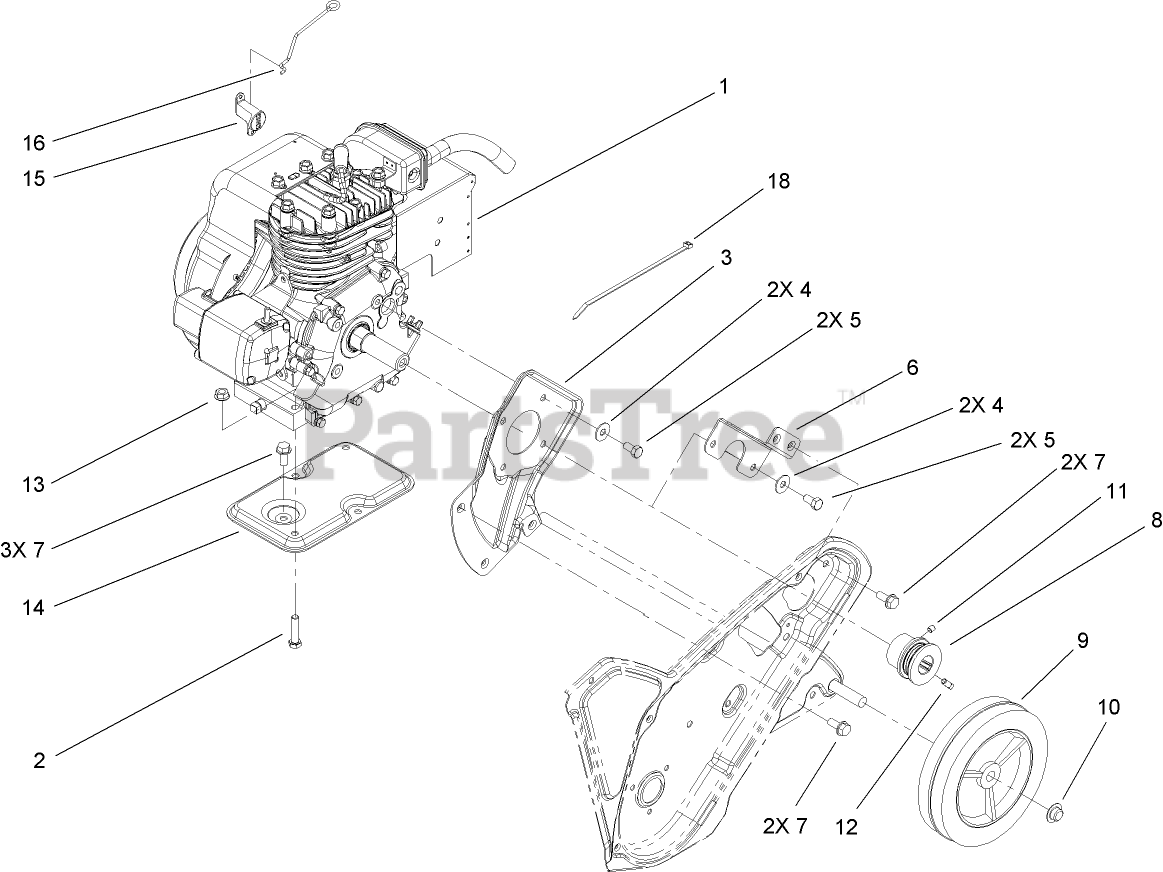

Engine, Frame and Wheel Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

1

Loose Parts Package

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

2

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

3

Toro 108-4892-03

PLATE-ENGINE, PTO

$23.99

$

Usually ships in 3-6 days

0

4

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

5

Toro 3210-2

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

6

Toro 110-9354-03

SUPPORT-ENGINE, SIDE

$9.49

$

Usually ships in 3-6 days

0

7

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

8

Toro 108-4934

PULLEY-ENGINE

$81.99

$

Usually ships in 3-6 days

0

9

Toro 66-6510

WHEEL

$

$

Not available

10

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, only 1 left!

0

11

Toro 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

12

Toro 3241-7

SCREW-SQH

$4.49

$

In Stock, only 2 left!

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 108-4902-03

SUPPORT-ENGINE

$

$

Not available

15

Toro 110-9362

BELLCRANK-CHOKE, 4 STROKE

$16.99

$

Usually ships in 3-6 days

0

16

Toro 110-9365

LINK-CHOKE KNOB, L-HEAD

$16.99

$

Usually ships in 3-6 days

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
