38586 - Toro Power Clear Snow Thrower (SN: 290000001 - 290999999) (2009) Engine Assembly No. 2 Tecumseh LH195SP-67530D Parts Diagram

Power Clear Snow Thrower

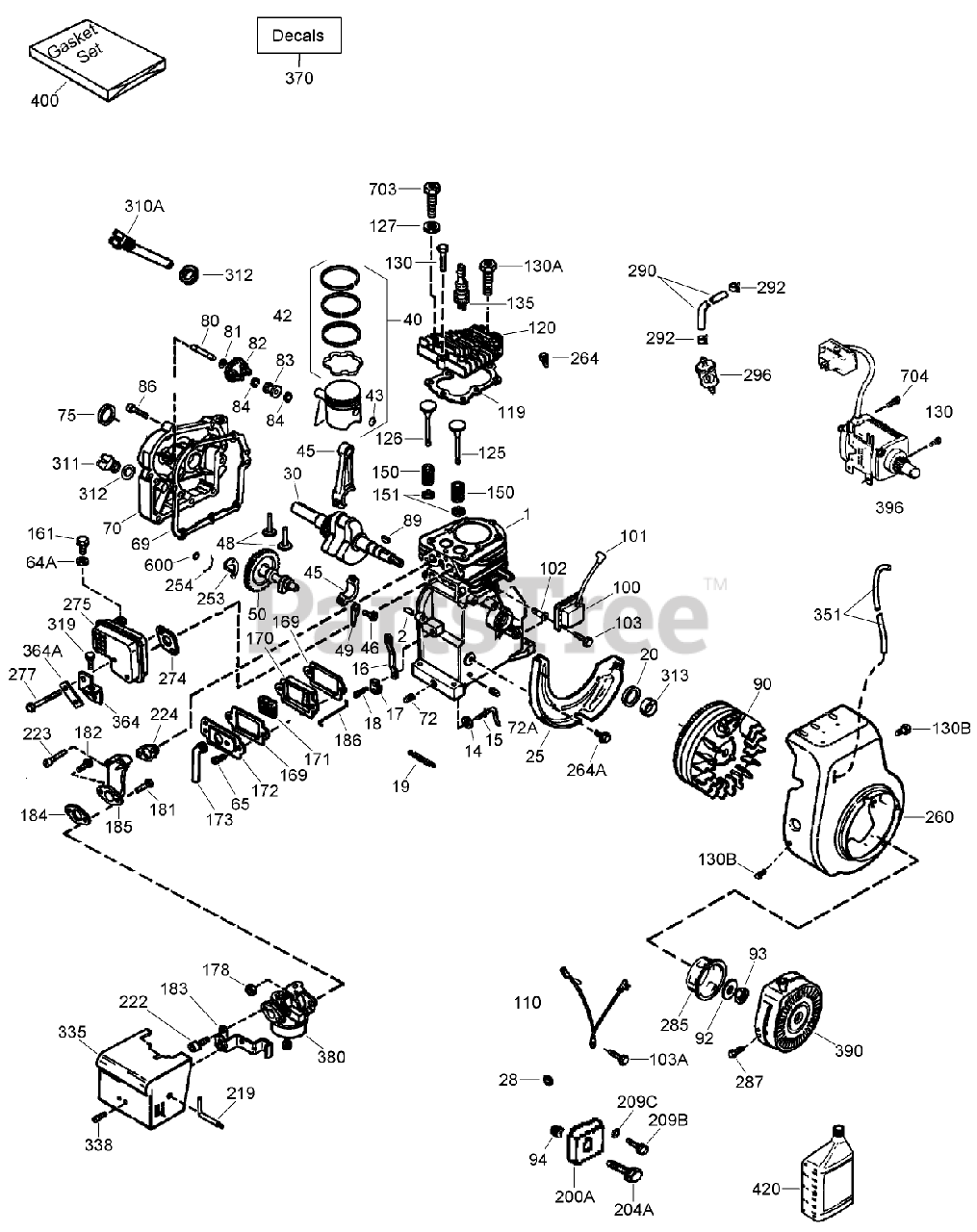

Engine Assembly No. 2 Tecumseh LH195SP-67530D Parts Diagram

  • Title

150

Tecumseh 31672

Spring-Valve

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 13

0

151

Tecumseh 31673

Cap-Valve, Spring

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 1 left!

0

161

Tecumseh 30063

Screw

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

169

Tecumseh 27234A

Gasket-Cover, Valve

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 20+

0

170

Tecumseh 27666

Body-Breather

Note: Obtain parts from www.tecumsehpower.com

$14.99

$

In Stock, only 2 left!

0

171

Tecumseh 31410

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

172

Tecumseh 34146

Cover-Breather

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 2 left!

0

173

Tecumseh 35350

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$6.49

$

In Stock, Qty 17

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

181

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 6201

See Supercession: 111-1250

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

183

Tecumseh 34583A

Bracket-Choke

Note: Obtain parts from www.tecumsehpower.com

$12.99

$

In Stock, only 2 left!

0

184

Tecumseh 26756

Gasket

Note: Obtain parts from www.tecumsehpower.com

$2.99

$

In Stock, Qty 20+

0

185

Tecumseh 33691

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$25.99

$

Usually ships in 3-12 days

0

186

Tecumseh 32698

Link-Governor to Throttle

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

200A

Tecumseh 30846

Bracket-Adjusting Bolt, Governor Spring

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

204A

Tecumseh 30845A

Bolt-Adjusting, R.P.M.

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

Usually ships in 3-12 days

0

209B

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 16

0

209C

Tecumseh 650518

Washer-Lock

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

219

Tecumseh 34582

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

222

Tecumseh 651081

Screw (10-32 X 15/32)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 1 left!

0

223

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 10

0

224

Tecumseh 33673A

Gasket-Intake

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, only 1 left!

0

253

Tecumseh 36701

Weight-Release, Compression

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

254

Tecumseh 36702

Spring-Release, Compression

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

260

Tecumseh 35656A

Housing-Blower

Note: Obtain parts from www.tecumsehpower.com

$34.99

$

Usually ships in 3-12 days

0

264

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

264A

Tecumseh 650802

Screw (1/2-20x5/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

274

Tecumseh 35865

Gasket-Exhaust

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 20+

0

275

Tecumseh 37684

63592 42 SPG MOUNT

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

277

Tecumseh 792005

Screw (1/4-20 x 2-1/2)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 2 left!

0

285

Tecumseh 36467B

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$9.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

290

Tecumseh 37963

Line-Fuel, Low Permeation (16.0)

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

296

Tecumseh 37768

Filter-Fuel (also available in Packaged Part 740093) (Includes 292)

Note: Obtain parts from www.tecumsehpower.com

$6.49

$

In Stock, Qty 8

0

310A

Tecumseh 34245

Plug-Fill, Oil (Includes 312)

Note: Obtain parts from www.tecumsehpower.com

$9.49

$

Usually ships in 3-12 days

0

311

Tecumseh 27625

Plug-Fill, Oil

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 11

0

312

Tecumseh 29673

Gasket

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 6

0

313

Tecumseh 34080

Spacer

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

319

Tecumseh 650735

Screw (10-24 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

335

Tecumseh 35072B

Cover-Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

338

Tecumseh 650257

Screw (8-32 X 5/16)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 5

0

351

Tecumseh 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, Qty 10

0

364

Tecumseh 33333

Bracket-Cover, Carburetor

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 2 left!

0

364A

Tecumseh 37673

Plate-Locking

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

Usually ships in 3-12 days

0

370

Tecumseh 36695

Decal-Tecumseh Logo for Top of Recoil Starter

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 5

0

380

Tecumseh 640299B

Carburetor

Note: Obtain parts from www.tecumsehpower.com

$109.99

$

In Stock, only 1 left!

0

390

Tecumseh 590784

Starter-Recoil

Note: Obtain parts from www.tecumsehpower.com

$50.99

$

In Stock, only 2 left!

0

390

Tecumseh 590784

Starter-Recoil

Note: Obtain parts from www.tecumsehpower.com

$50.99

$

In Stock, only 2 left!

0

396

Tecumseh 37657

Electric Starter Motor Asm (110 Volt)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

400

Tecumseh 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, only 2 left!

0

420

Tecumseh 730226A

Oil-Engine, S A E 5W30
(Superseded to 730226B)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

Usually ships in 3-12 days

0

600

Tecumseh 651013

Washer

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 1 left!

0

703

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

704

Tecumseh 650738

Screw (1/4-20 X 5/8)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

Usually ships in 3-12 days

0

999

Tecumseh 730281

Winter Maintenance Kit
(Superseded to 730281A)

Note: Obtain parts from www.tecumsehpower.com

$22.99

$

In Stock, only 2 left!

0

Tecumseh 754337A

Replacement-Block, Short

Note: Not illustrated

$

$

Not available

Tecumseh 754337A

Replacement-Block, Short

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available
