38595 (6000) - Toro Power Max Snow Thrower (SN: 270000001 - 270999999) (2007) Handle Assembly Parts Diagram

Power Max Snow Thrower

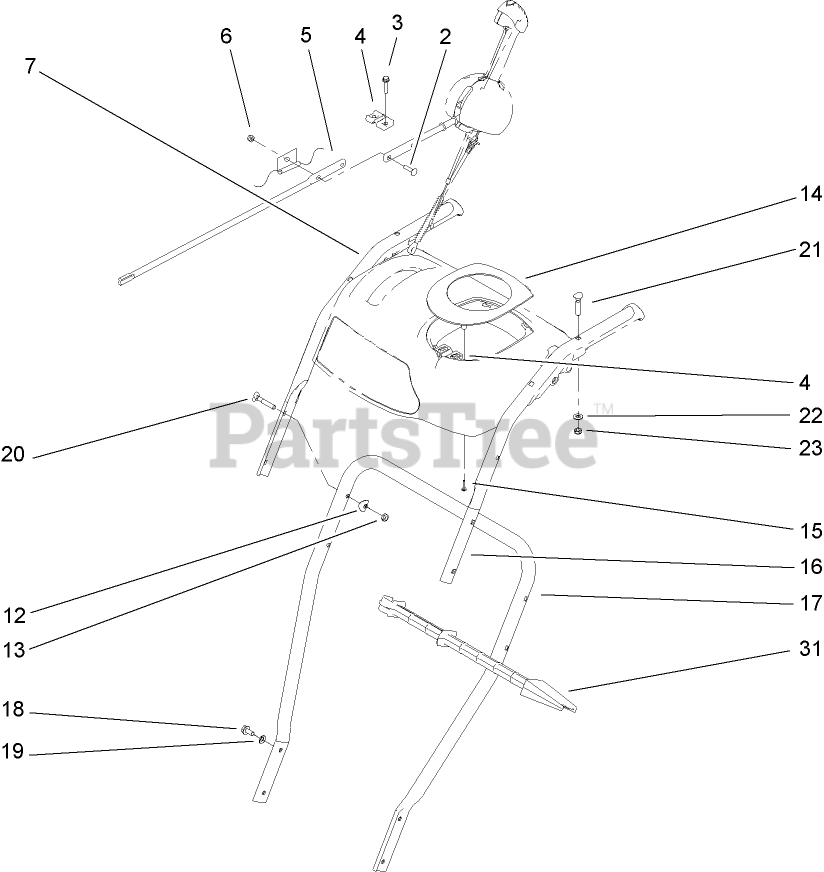

Handle Assembly Parts Diagram

  • Title

2

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

3

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 8

0

4

Toro 105-9987

SUPPORT-ROD

$9.49

$

In Stock, only 4 left!

0

5

Toro 106-7283

ROD-CHUTE, FRONT

$38.99

$

Usually ships in 3-6 days

0

6

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

7

Toro 108-0038-03

HANDLE-UPPER, RH
(Superseded to 127-5953-03)

$286.99

$

Usually ships in 3-6 days

0

12

Toro 107-3844

WASHER

$1.99

$

In Stock, Qty 20+

0

13

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 106-4586

COVER-PANEL, CONTROL

$27.99

$

Usually ships in 3-6 days

0

15

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-0037-03

See Supercession: 127-5952-03
(Superseded to 127-5952-03)

$316.99

$

Usually ships in 3-6 days

0

17

Toro 105-9981-03

HANDLE-LOWER

$152.99

$

Usually ships in 3-6 days

0

18

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

19

Toro 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

20

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

21

Toro 107-3018

SCREW-HANDLE

$3.99

$

In Stock, only 1 left!

0

22

Toro 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 8

0

23

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 110-3408

STICK-CLEANOUT

$18.99

$

In Stock, only 2 left!

0
