38597 (6000) - Toro 26" Power Max Snow Thrower (SN: 280000001 - 280999999) (2008) Engine Assembly Parts Diagram

26" Power Max Snow Thrower

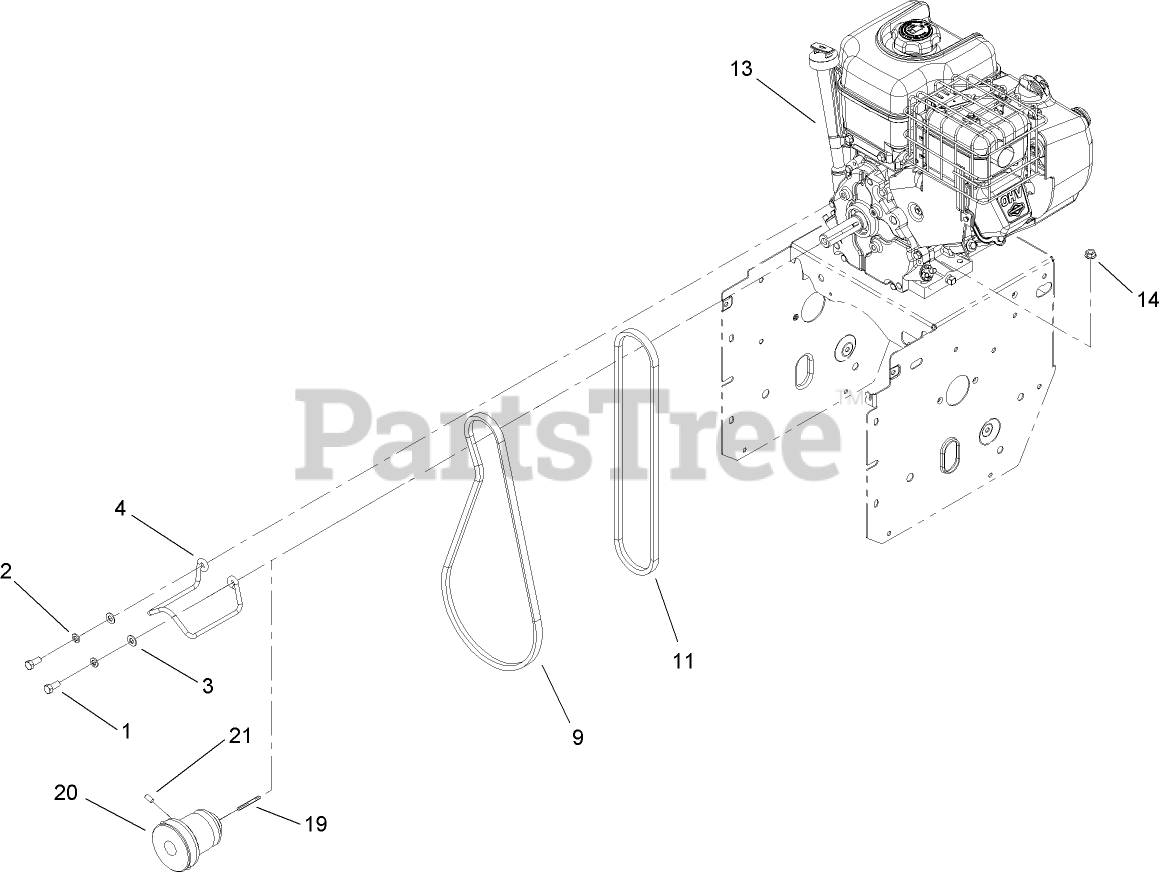

Engine Assembly Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 107-3835

See Supercession: 136-7317
(Superseded to 136-7317)

$19.99

$

Usually ships in 3-6 days

0

9

Toro 106-4498

BELT-V

$33.99

$

In Stock, only 2 left!

0

11

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

In Stock, only 3 left!

0

13

Loose Parts Package

Note: Not serviced separately

$

$

Not available

13

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 7-0036

KEY-SQUARE

$

$

Not available

20

Toro 114-9252

PULLEY-ENGINE

$186.99

$

Usually ships in 3-6 days

0

21

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 13

0
