38605 (522) - Toro 22" Power Throw Snow Thrower (SN: 270004505 - 270999999) (2007) Engine Assembly No. 2 Tecumseh LH195SA - 67435V Parts Diagram

22" Power Throw Snow Thrower

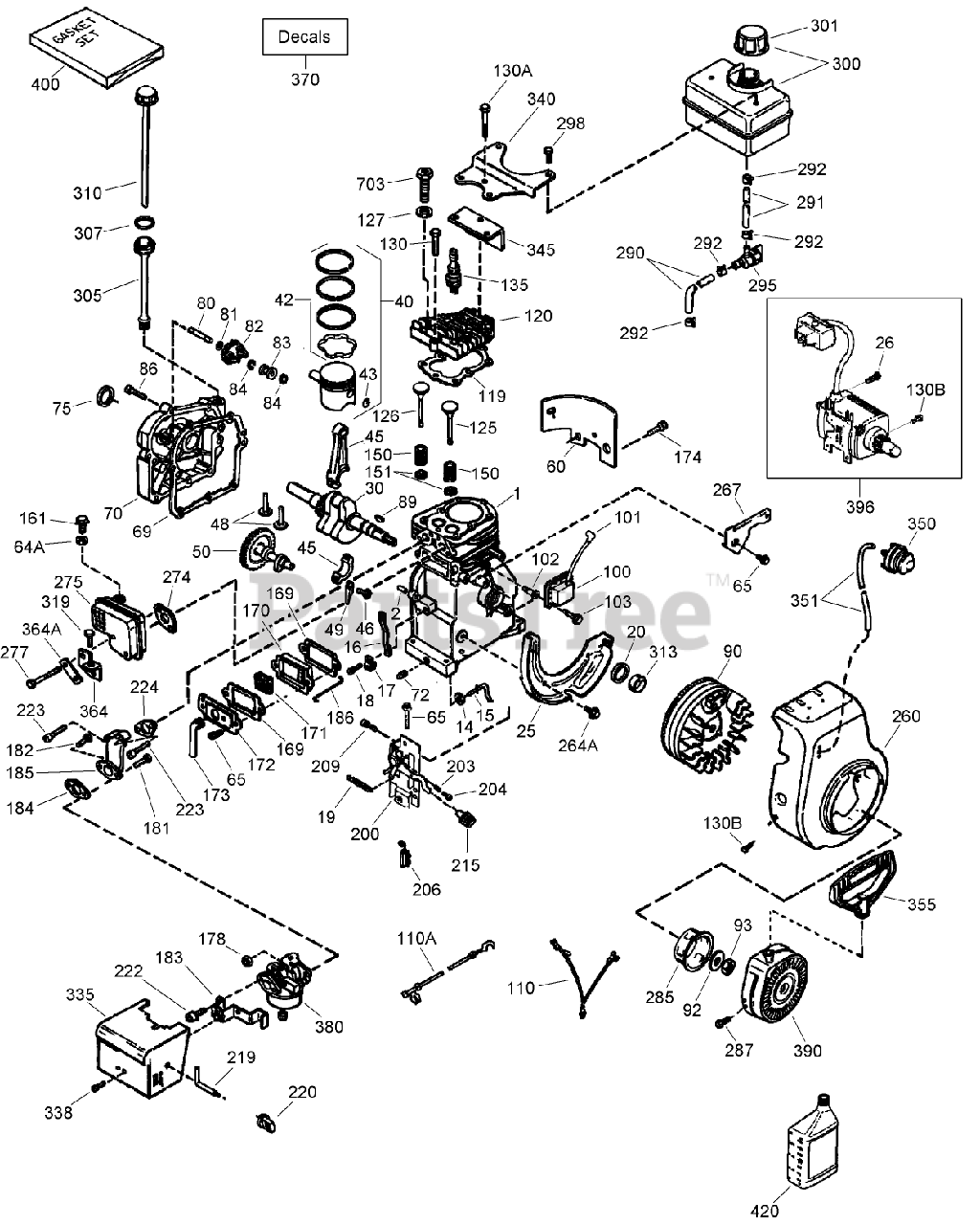

Engine Assembly No. 2 Tecumseh LH195SA - 67435V Parts Diagram

  • Title

170

Tecumseh 27666

Body-Breather

Note: Obtain parts from www.tecumsehpower.com

$14.99

$

In Stock, only 2 left!

0

171

Tecumseh 31410

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

172

Tecumseh 34146

Cover-Breather

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 2 left!

0

173

Tecumseh 35350

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$6.49

$

In Stock, Qty 17

0

174

Tecumseh 650128

Screw

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, Qty 13

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 3 left!

0

181

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 6201

See Supercession: 111-1250

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

183

Tecumseh 34583A

Bracket-Choke

Note: Obtain parts from www.tecumsehpower.com

$12.99

$

In Stock, only 2 left!

0

184

Tecumseh 26756

Gasket

Note: Obtain parts from www.tecumsehpower.com

$2.99

$

In Stock, Qty 20+

0

184

Tecumseh 26756

Gasket

Note: Included in Gasket Set 36444

$2.99

$

In Stock, Qty 20+

0

185

Tecumseh 33691

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$25.99

$

Usually ships in 3-12 days

0

186

Tecumseh 32698

Link-Governor to Throttle

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

200

Tecumseh 36677

Control Assembly (Incl. Ref.# 203, 204, 206, 209 209A)

Note: Obtain parts from www.tecumsehpower.com

$47.99

$

In Stock, only 3 left!

0

203

Tecumseh 31342

Spring-Compression

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 7

0

204

Tecumseh 651029

Screw (T-10, 5-40x7/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 6

0

206

Tecumseh 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 12

0

209

Rivet (Purchase Locally)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

209

Rivet (Purchase Locally)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

215

Tecumseh 35440

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 20+

0

219

Tecumseh 34582

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

220

Tecumseh 35438

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 1 left!

0

223

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 10

0

224

Tecumseh 33673A

Gasket-Intake

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, only 1 left!

0

224

Tecumseh 33673A

Gasket-Intake

Note: Included in Gasket Set 36444

$5.99

$

In Stock, only 1 left!

0

260

Tecumseh 35656A

Housing-Blower

Note: Obtain parts from www.tecumsehpower.com

$34.99

$

Usually ships in 3-12 days

0

264A

Tecumseh 650802

Screw (1/2-20x5/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

267

Tecumseh 34212

Bracket-Hold Down

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 1 left!

0

274

Tecumseh 33670A

Gasket-Exhaust
(Superseded to 35865)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 20+

0

274

Tecumseh 33670A

Gasket-Exhaust
(Superseded to 35865)

Note: Included in Gasket Set 36444

$2.49

$

In Stock, Qty 20+

0

275

Tecumseh 35771A

Muffler (Includes 274)

Note: Obtain parts from www.tecumsehpower.com

$32.99

$

In Stock, only 1 left!

0

277

Tecumseh 792005

Screw (1/4-20 x 2-1/2)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 2 left!

0

285

Tecumseh 36467B

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$9.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

290

Tecumseh 37963

Line-Fuel, Low Permeation (16.0)

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, only 2 left!

0

291

Tecumseh 37962

Line-Fuel, Low Permeation (8.62)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, Qty 10

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 20+

0

300

Tecumseh 35584

Tank Assembly-Fuel (Incl. Ref. #250 253)

Note: Obtain parts from www.tecumsehpower.com

$45.99

$

In Stock, only 2 left!

0

301

Tecumseh 37845

Cap-Fuel (Red Plastic) (1-1/2 ID)

Note: Obtain parts from www.tecumsehpower.com

$8.99

$

In Stock, Qty 12

0

305

Tecumseh 35554

Tube-Fill, Oil

Note: Obtain parts from www.tecumsehpower.com

$19.99

$

In Stock, only 2 left!

0

307

Tecumseh 35499

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

310

Tecumseh 35556

Dipstick

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

Usually ships in 3-12 days

0

313

Tecumseh 34080

Spacer

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

319

Tecumseh 650735

Screw (10-24 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

335

Tecumseh 35072A

Carburetor Cover
(Superseded to 35072B)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

338

Tecumseh 650257

Screw (8-32 X 5/16)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 5

0

340

Tecumseh 36247

Plate-Fuel Tank

Note: Obtain parts from www.tecumsehpower.com

$11.99

$

Usually ships in 3-12 days

0

345

Tecumseh 33344

Baffle-Heat

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

Usually ships in 3-12 days

0

350

Tecumseh 570682A

Primer ASM

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, Qty 17

0

351

Tecumseh 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, Qty 10

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

364

Tecumseh 33333

Bracket-Cover, Carburetor

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 2 left!

0

364A

Tecumseh 37673

Plate-Locking

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

Usually ships in 3-12 days

0

370

Tecumseh 37119

Decal-Warning (Bilingual)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, only 2 left!

0

370

Tecumseh 36534

Decal-Instruction
(Superseded to 36534A)

Note: Obtain parts from www.tecumsehpower.com

$3.49

$

Usually ships in 3-12 days

0

370

Tecumseh 35282

Decal-Control

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, only 2 left!

0

370

Tecumseh 36695

Decal-Tecumseh Logo for Top of Recoil Starter

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 5

0

370

Tecumseh 36501

Decal-Primer, International Symbol

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, only 2 left!

0

380

Tecumseh 640084B

Carburetor (Includes 184)

Note: Obtain parts from www.tecumsehpower.com

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590742

Starter-Rewind
(Superseded to 590787)

Note: Obtain parts from www.tecumsehpower.com

$53.99

$

In Stock, only 2 left!

0

396

Tecumseh 33290E

Starter-Electric (110 Volt)

Note: Obtain parts from www.tecumsehpower.com

$278.99

$

In Stock, only 1 left!

0

400

Tecumseh 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, only 2 left!

0

400

Tecumseh 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Included in Gasket Set 36444

$13.99

$

In Stock, only 2 left!

0

420

Tecumseh 730226A

Oil-Engine, S A E 5W30
(Superseded to 730226B)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

Usually ships in 3-12 days

0

703

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

704

Tecumseh 754273C

Short Block Replacement

Note: Not illustrated

$389.99

$

Usually ships in 3-12 days

0

704

Tecumseh 754273C

Short Block Replacement

Note: Obtain parts from www.tecumsehpower.com

$389.99

$

Usually ships in 3-12 days

0
