38610 (6000) - Toro 26" Power Max Snow Thrower (SN: 250010001 - 250999999) (2005) Auger Gearcase Assembly No. 106-4580 Parts Diagram

26" Power Max Snow Thrower

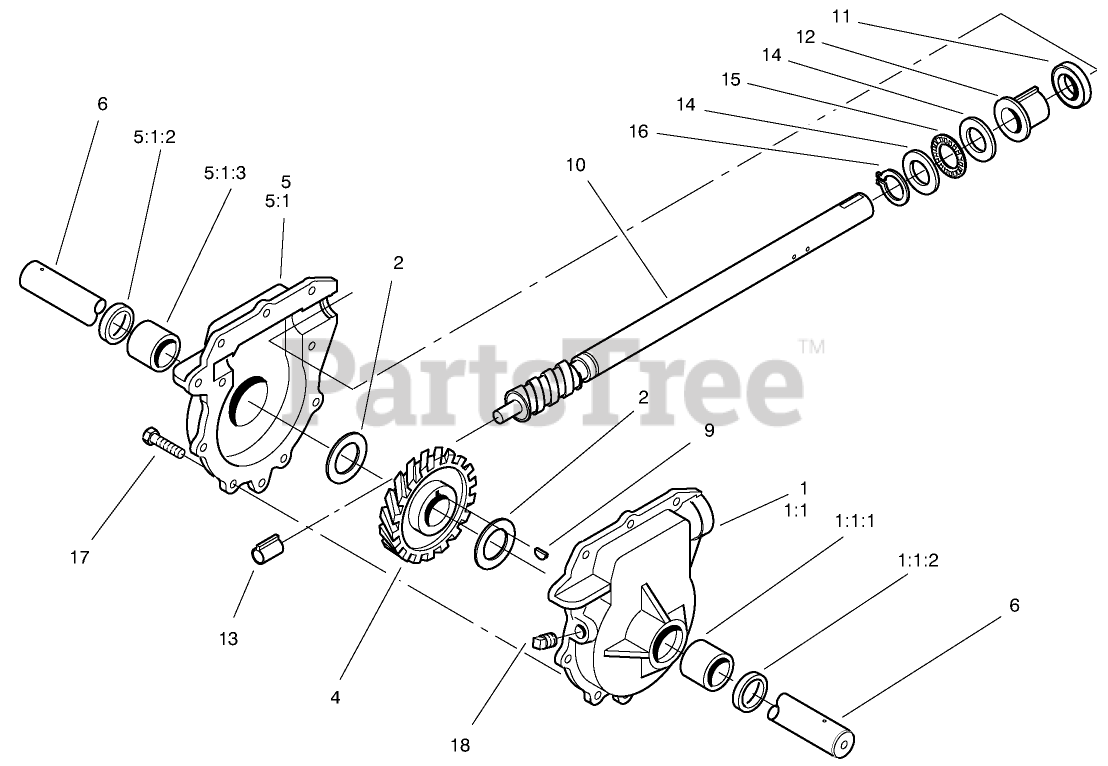

Auger Gearcase Assembly No. 106-4580 Parts Diagram

  • Title

1

Toro 74-1570

See Supercession: 110-3439
(Superseded to 110-3439)

$428.99

$

Usually ships in 3-6 days

0

1:1

Gearcase-Auger, LH

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

1:1:2

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

2

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

4

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$75.99

$

In Stock, only 4 left!

0

5

Toro 74-1580

See Supercession: 110-3439
(Superseded to 110-3439)

$428.99

$

Usually ships in 3-6 days

0

5:1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

5:1:3

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

6

Toro 106-4579

SHAFT-AUGER

$109.99

$

Usually ships in 3-6 days

0

9

Toro 3257-10

KEY-WOODRUFF

$7.49

$

In Stock, only 3 left!

0

10

Toro 66-7811

SHAFT-IMPELLER

$305.99

$

Usually ships in 3-6 days

0

11

Toro 253-149

SEAL-OIL

$14.99

$

In Stock, only 2 left!

0

12

Toro 37-6560

BUSHING-INPUT

$46.99

$

In Stock, only 2 left!

0

13

Toro 62-1150

BUSHING-WORM

$8.49

$

In Stock, only 2 left!

0

14

Toro 252-78

WASHER-THRUST

$25.99

$

In Stock, only 2 left!

0

15

Toro 252-76

BEARING-THRUST

$25.99

$

In Stock, only 1 left!

0

16

Toro 32151-33

RING-RETAINING, EXT

$3.99

$

In Stock, Qty 9

0

17

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 3 left!

0

18

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0
