38635 (828 LE) - Toro 28" Power Max Snow Thrower (SN: 270000001 - 270999999) (2007) Carburetor Assembly Tecumseh LH318SA-156564H Parts Diagram

28" Power Max Snow Thrower

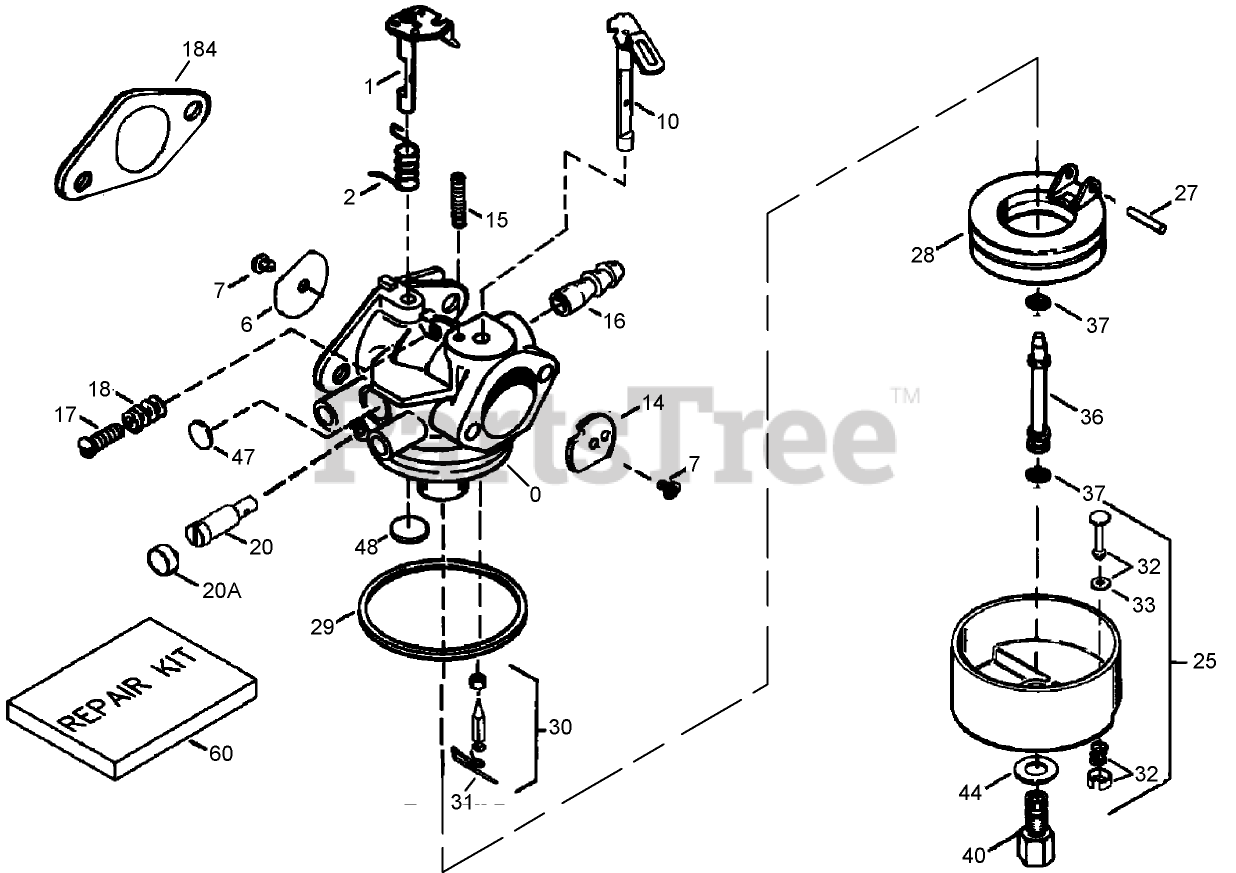

Carburetor Assembly Tecumseh LH318SA-156564H Parts Diagram

  • Title

Tecumseh 640349

Carburetor ASM (Includes 184)

Note: Obtain parts from www.tecumsehpower.com

$109.99

$

Usually ships in 3-12 days

0

1

Tecumseh 631776A

Throttle Shaft and Lever ASM

Note: Obtain parts from www.tecumsehpower.com

$16.99

$

In Stock, only 2 left!

0

2

Tecumseh 631970

Spring-Return, Throttle

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 1 left!

0

6

Tecumseh 640109

Shutter-Throttle

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, only 3 left!

0

10

Tecumseh 632112

Choke Shaft and Lever ASM

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632174

Shutter-Choke

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

Usually ships in 3-12 days

0

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

16

Tecumseh 632164

Fitting-Fuel

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

Usually ships in 3-12 days

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

18

Tecumseh 630766

Spring-Tension

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 11

0

20

Tecumseh 640027

Screw-Restrictor, Idle

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

20A

Tecumseh 640200

Cap-Screw, Restrictor Idle

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

25

Tecumseh 631951

Float Bowl Asm. (Incl. Ref. # 32, 33)

Note: Obtain parts from www.tecumsehpower.com

$17.99

$

In Stock, only 2 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 3 left!

0

28

Tecumseh 632802

Float (Plastic)
(Superseded to 632816)

Note: Obtain parts from www.tecumsehpower.com

$8.49

$

In Stock, only 4 left!

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 20+

0

30

Tecumseh 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 9

0

32

Tecumseh 27136A

Bowl Drain ASM

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

In Stock, only 3 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 6

0

36

Tecumseh 640113

Tube-Nozzle

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, only 4 left!

0

37

Tecumseh 632547

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640128

Nut-Bowl, High Speed

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

In Stock, only 2 left!

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 16

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 16

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

60

Tecumseh 632760B

Carburetor Repair Kit

Note: Obtain parts from www.tecumsehpower.com

$27.99

$

In Stock, Qty 8

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0
