38642 (1028 LE) - Toro 28" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) Engine Assembly Tecumseh Model HMSK100-159494Y Parts Diagram

28" Power Max Snow Thrower

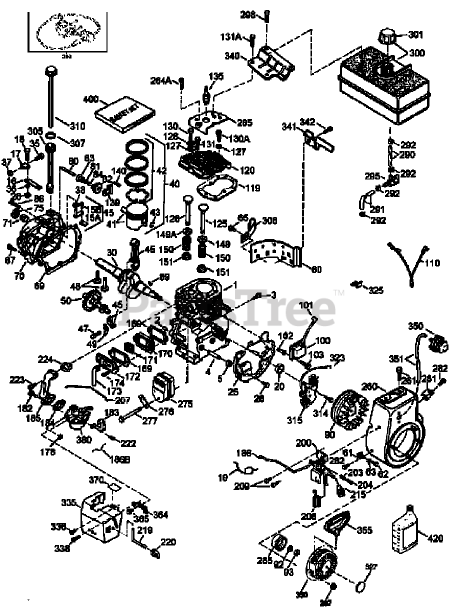

Engine Assembly Tecumseh Model HMSK100-159494Y Parts Diagram

  • Title

1

Tecumseh 35371

Cylinder (Incl. ref. #2 20)

Note: Obtain parts from www.tecumsehpower.com

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 20+

0

14

Tecumseh 28277

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

Tecumseh 28558

Washer

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Rod, Governor (Incl. Nos.62 63)

Note: Obtain parts from www.tecumsehpower.com

$17.99

$

In Stock, only 2 left!

0

Tecumseh 30700

Yoke-Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

Tecumseh 650494

Screw (6-40x5/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454A

Lever-Governor

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, only 3 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 10

0

18

Tecumseh 651028

Screw (T-15, 8-32x7/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 34663

Spring-Throttle

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 10

0

20

Tecumseh 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$4.99

$

In Stock, Qty 20+

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

28

Tecumseh 30322

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

30

Tecumseh 35571A

Crankshaft

Note: Obtain parts from www.tecumsehpower.com

$166.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 3 left!

0

36

Tecumseh 29918

Washer-Lock

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 29642

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$100.99

$

In Stock, only 1 left!

0

40

Tecumseh 35776A

Piston Pin and Ring ASM (STD)
(Superseded to 35776B)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

40

Tecumseh 35777A

Piston Pin and Ring ASM (.010)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

41

Tecumseh 35773A

Piston Pin Ass-y(Std.)(Incl. 43)
(Superseded to 35776B)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

41

Tecumseh 35774A

Piston Pin Ass-y (.010" OS)(Incl. 43)
(Superseded to 35777A)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Tecumseh 35779

Ring Set (STD)

Note: Obtain parts from www.tecumsehpower.com

$44.99

$

In Stock, only 2 left!

0

42

Tecumseh 35780

Ring Set (.010)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

43

Tecumseh 35772

Retaining Ring-Piston Pin

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 36898

Connecting Rod ASM (Incl. Ref. #47)
(Superseded to 36898A)

Note: Obtain parts from www.tecumsehpower.com

$52.99

$

In Stock, only 4 left!

0

47

Tecumseh 651033

Bolt-Rod, Connecting
(Superseded to 651033A)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

48

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, only 2 left!

0

49

Tecumseh 36896

Dipper-Oil

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35375

Camshaft (MCR)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

60

Tecumseh 33273A

Extension-Housing, Blower

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

Usually ships in 3-12 days

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Obtain parts from www.tecumsehpower.com

$11.99

$

In Stock, only 2 left!

0

70

Tecumseh 35376A

Cylinder Cover ASM (Incl. Ref. #71, 75 and 80-84)
(Superseded to 38027)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

71

Tecumseh 35377

2025A77 WIZARD ROTA

Note: Obtain parts from www.tecumsehpower.com

$11.99

$

In Stock, only 2 left!

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

75

Tecumseh 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$4.99

$

In Stock, Qty 20+

0

80

Tecumseh 37587

Shaft-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

81

Tecumseh 651080

Washer

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

82

Tecumseh 37588

Governor Gear ASM

Note: Obtain parts from www.tecumsehpower.com

$9.49

$

In Stock, only 2 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 14

0

84

Tecumseh 29193

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 13

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 9

0

90

Tecumseh 611093

Flywheel ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

92

Tecumseh 650880

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

93

Tecumseh 650881

Nut-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135A

Ignition-Solid State
(Superseded to 35135B)

Note: Obtain parts from www.tecumsehpower.com

$62.99

$

In Stock, only 2 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 6

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 35187

Wire-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

Tecumseh 37047

Wire-Ground

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 13

0

119

Tecumseh 36451

Gasket-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

120

Tecumseh 36449

Head-Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

125

Tecumseh 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

Note: Obtain parts from www.tecumsehpower.com

$23.99

$

In Stock, only 1 left!

0

125

Tecumseh 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

126

Tecumseh 34035

Valve, Intake (Std.) (Incl. Ref. #58)

Note: Obtain parts from www.tecumsehpower.com

$15.99

$

In Stock, only 1 left!

0

127

Tecumseh 650691

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 11

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

130

Tecumseh 650694A

Screw (5/16-18 X 2)

Note: Obtain parts from www.tecumsehpower.com

$3.49

$

Usually ships in 3-12 days

0

Tecumseh 650727

Screw (5/16-18x1-25/32)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

Usually ships in 3-12 days

0

Tecumseh 651055

Screw (5/16-18x39/64)
(Superseded to 650273)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 12

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 20+

0

139

Tecumseh 33369

Bracket-Gear, Governor

Note: Obtain parts from www.tecumsehpower.com

$8.49

$

Usually ships in 3-12 days

0

140

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

149

Tecumseh 27882

Cap-Spring, Valve

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

Tecumseh 35862

51106 GILSON ROTARY

Note: Obtain parts from www.tecumsehpower.com

$9.49

$

Usually ships in 3-12 days

0

150

Tecumseh 27881

Spring-Valve

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Keeper-Spring, Valve

Note: Obtain parts from www.tecumsehpower.com

$6.49

$

In Stock, only 2 left!

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

170

Tecumseh 28423

Body-Breather

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 20+

0

172

Tecumseh 28425

Cover-Valve

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

In Stock, Qty 5

0

173

Tecumseh 35350

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$6.49

$

In Stock, Qty 17

0

174

Tecumseh 650128

Screw

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, Qty 13

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 3 left!

0

182

Tecumseh 30088A

Screw (1/4-28x1)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

183

Tecumseh 34587A

Bracket-Choke
(Superseded to 34587B)

Note: Obtain parts from www.tecumsehpower.com

$9.49

$

In Stock, only 2 left!

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 33877

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$48.99

$

In Stock, only 2 left!

0

186

Tecumseh 34667

Link-Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

Tecumseh 36652

Spring-Choke

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

In Stock, only 1 left!

0

200

Tecumseh 34677

Bracket-Control (Includes 19, 203, 204, 206)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

203

Tecumseh 31342

Spring-Compression

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 7

0

204

Tecumseh 651029

Screw (T-10, 5-40x7/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 6

0

206

Tecumseh 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 12

0

207

Tecumseh 33878

Link-Throttle

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, only 3 left!

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 20+

0

211

Tecumseh 28942

Screw (10-32 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

212

Tecumseh 36689

Speed Control Lever Bushing

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

215

Tecumseh 35440

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, Qty 20+

0

219

Tecumseh 34586

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

220

Tecumseh 35438

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

In Stock, only 1 left!

0

223

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

224

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 20+

0

238

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, only 1 left!

0

260

Tecumseh 35447A

Housing-Blower
(Superseded to 37961)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

261

Tecumseh 650788

Screw (5/16-18x3/4)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

262

Tecumseh 651084

Screw (5/16-18x9/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

Tecumseh 650802

Screw (1/2-20x5/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

265

Tecumseh 33272D

Cover-Head, Cylinder (Black)

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

Note: Obtain parts from www.tecumsehpower.com

$62.99

$

In Stock, only 1 left!

0

276

Tecumseh 31588

62513 SNWTHWR W/284

Note: Obtain parts from www.tecumsehpower.com

$4.99

$

In Stock, only 4 left!

0

277

Tecumseh 651002

Screw (5/16-18x4-3/16)

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, Qty 7

0

285

Tecumseh 35985B

Cup-Starter
(Superseded to 35985C)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, only 2 left!

0

290

Tecumseh 29774

Line-Fuel (8.62)

Note: Obtain parts from www.tecumsehpower.com

$34.99

$

In Stock, only 2 left!

0

Tecumseh 30705

Line-Fuel

Note: Obtain parts from www.tecumsehpower.com

$16.99

$

In Stock, Qty 9

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, Qty 10

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 20+

0

300

Tecumseh 34156A

Tank-Fuel (Includes 292, 301)

Note: Obtain parts from www.tecumsehpower.com

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 20+

0

305

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, Qty 20+

0

307

Tecumseh 35499

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

308

Tecumseh 35540

Clip-Tube, Fill

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 36205

Gauge Oil ASM

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, only 2 left!

0

314

Tecumseh 650873

Screw (1/4-20 x 3/4)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

Coil-Alternator, 18 Watt (Includes 323)

Note: Obtain parts from www.tecumsehpower.com

$68.99

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Clip-Wire

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

328

Tecumseh 35062

Key-Ignition

Note: Obtain parts from www.tecumsehpower.com

$3.99

$

Usually ships in 3-12 days

0

335

Tecumseh 35057A

Cover-Carburetor
(Superseded to 36547A)

Note: Obtain parts from www.tecumsehpower.com

$70.99

$

In Stock, only 2 left!

0

336

Tecumseh 650765

Screw (10-32x1/2)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

340

Tecumseh 34154

Bracket-Tank, Fuel (Black)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

341

Tecumseh 34155

Bracket-Tank, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

343

Tecumseh 35079

Bracket-Switch, Key
(Superseded to 35079A)

Note: Obtain parts from www.tecumsehpower.com

$16.99

$

Usually ships in 3-12 days

0

Tecumseh 651060

Screw (8-32 x 23/64)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

350

Tecumseh 570682A

Primer ASM

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, Qty 17

0

351

Tecumseh 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$6.99

$

In Stock, Qty 10

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

361

Tecumseh 650990

Screw (T-30, 1/4-20x15/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

364

Tecumseh 37659

Bracket-Cover, Carburetor

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

369

Tecumseh 650819

Screw

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

Tecumseh 35077

Decal-Speed Control and Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

Tecumseh 36501

Decal-Primer, International Symbol

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, only 2 left!

0

Tecumseh 37119

Decal-Warning (Bilingual)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, only 2 left!

0

Tecumseh 36695

Decal-Tecumseh Logo for Top of Recoil Starter

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 5

0

380

Tecumseh 640054

Carburetor (Incl. Ref.# 184)
(Superseded to 640349)

Note: Obtain parts from www.tecumsehpower.com

$109.99

$

Usually ships in 3-12 days

0

381

Tecumseh 650767

Screw (8-32x27/64)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

390

Tecumseh 590749

Starter-Rewind
(Superseded to 590789)

Note: Obtain parts from www.tecumsehpower.com

$87.99

$

Usually ships in 3-12 days

0

396

Tecumseh 33329D

Starter-Electric (110 Volt)
(Superseded to 33329E)

Note: Obtain parts from www.tecumsehpower.com

$296.99

$

Usually ships in 3-12 days

0

400

Tecumseh 36452B

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$21.99

$

In Stock, Qty 7

0

420

Tecumseh 730226A

Oil-Engine, S A E 5W30
(Superseded to 730226B)

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

Usually ships in 3-12 days

0

Tecumseh 756278D

Shortblock
(Superseded to 756278E)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available
